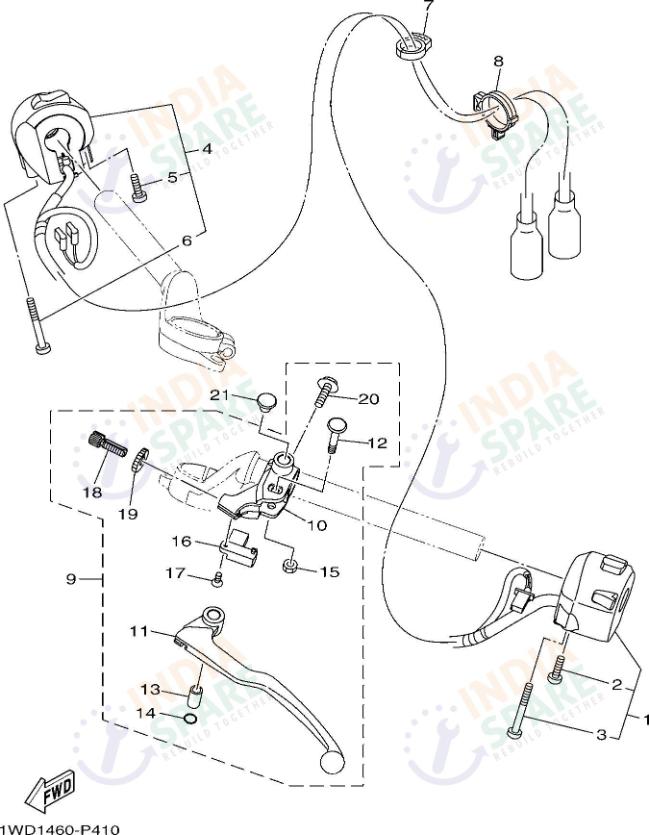

HANDLE SWITCH & LEVER
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDH39720000 | SWITCH, HANDLE 4 | ₹ 1980 | 1 | ||
| 2 | 1WDH21330000 | SCREW, FITTING | ₹ 16 | 1 | ||
| 3 | 1WDH395W0000 | SCREW SWITCH FITTING | ₹ 31 | 1 | ||
| 4 | 1WDH39750000 | SWITCH HANDLE 2 | ₹ 1650 | 1 | ||
| 5 | 45PH21330000 | SCREW, FITTING | ₹ 11 | 1 | ||
| 6 | 45PH395W0000 | SCREW, SWITCH FITTING | ₹ 11 | 1 | ||
| 7 | 904641600300 | CLAMP | ₹ 50 | 1 | ||
| 8 | 904643000100 | CLAMP | ₹ 48 | 1 | ||
| 9 | 1WDH29100000 | LEVER HOLDER ASSY (LEFT) | ₹ 1250 | 1 | ||
| 10 | 1WDH29110000 | HOLDER, LEVER 1 | ₹ 400 | 1 | ||
| 11 | 1WDH39120000 | LEVER 1 | ₹ 400 | 1 | ||
| 12 | 31A839450000 | BOLT, LEVER | ₹ 81 | 1 | ||
| 13 | 31A839130000 | COLLAR LEVER 1 | ₹ 150 | 1 | ||
| 14 | 93210108H500 | O-RING | ₹ 10 | 1 | ||
| 15 | 956170610000 | NUT NYLOC | ₹ 76 | 1 | ||
| 16 | 5BPH29170000 | SWITCH | ₹ 200 | 1 | ||
| 17 | 987070300800 | SCREW, FLAT HEAD | ₹ 11 | 1 | ||
| 18 | 901230804600 | BOLT WIRE ADUSTING | ₹ 15 | 1 | ||
| 19 | 901790814800 | NUT WIRE ADJUSTING | ₹ 7 | 1 | ||
| 20 | 975070652500 | BOLT HEX PLAIN WASHER | ₹ 4 | 1 | ||
| 21 | 903380980300 | PLUG | ₹ 5 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS1 R3 Series HANDLE SWITCH & LEVER
