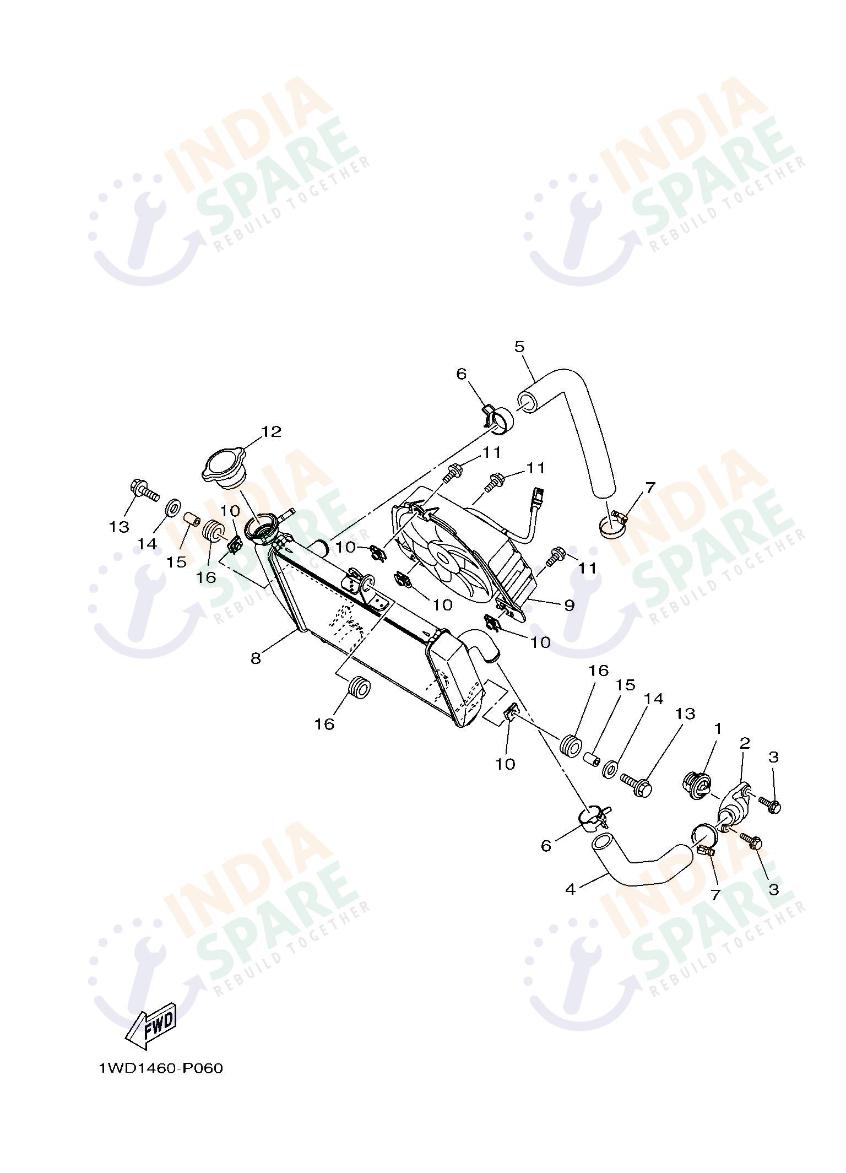

RADIATOR & HOSE OIL PUMP
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 5P0124110100 | THERMOSTAT | ₹ 1794 | 1 | ||
| 2 | 1WDE24130000 | COVER THERMOSTAT | ₹ 435 | 1 | ||
| 3 | 950220602000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 4 | 2MSE25770000 | HOSE 2 | ₹ 400 | 1 | ||
| 5 | 1WDE25780000 | HOSE 3 | ₹ 330 | 1 | ||
| 6 | 90467250A100 | CLIP | ₹ 108 | 2 | ||
| 7 | 904502800100 | HOSE CLAMP ASSY | ₹ 179 | 2 | ||
| 8 | 1WDE24610000 | RADIATOR ASSY | ₹ 4360 | 1 | ||
| 9 | 2MSE24050000 | BLOWER ASSY | ₹ 12910 | 1 | ||
| 10 | 1WDE26710000 | NUT 1 | ₹ 40 | 5 | ||
| 11 | 5YPE26750000 | BOLT, BLOWER HOLDING | ₹ 12 | 3 | ||
| 12 | BB7E24620000 | CAP RADIATOR | ₹ 122 | 1 | ||
| 13 | 958270602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 14 | 902010607200 | WASHER PLATE | ₹ 29 | 2 | ||
| 15 | 90387064W300 | COLLAR | ₹ 8 | 2 | ||
| 16 | 904801580800 | GROMMET | ₹ 30 | 3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series RADIATOR & HOSE OIL PUMP
