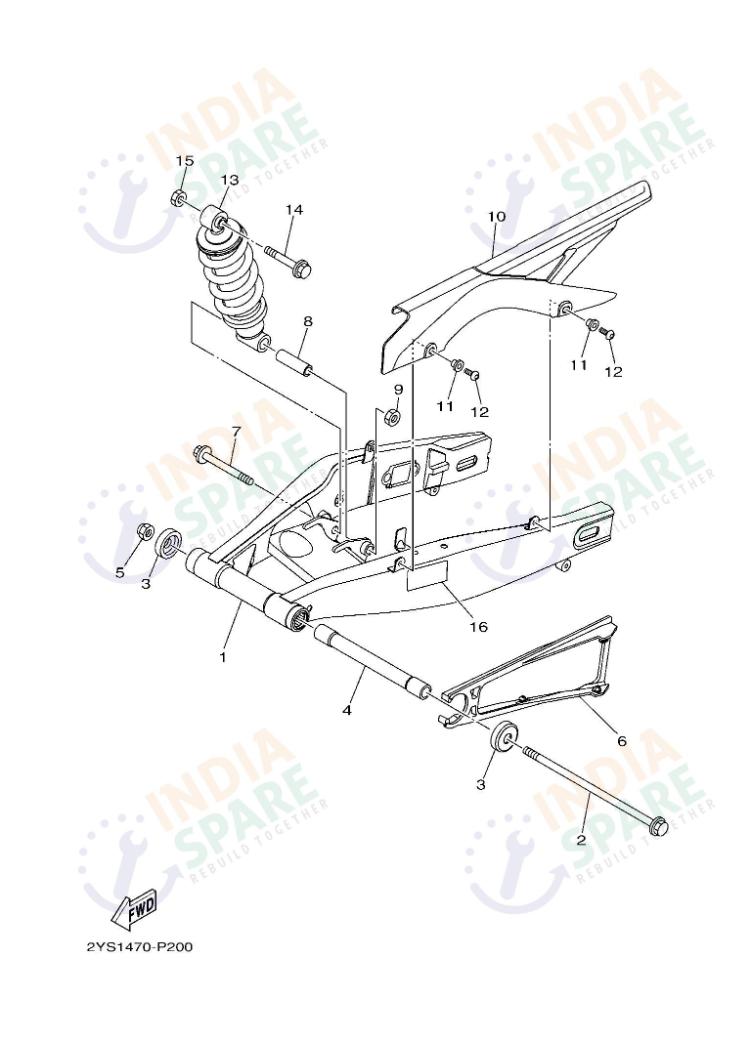

REAR ARM & SUSPENSION
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2YSF21000000 | REAR ARM ASSY | ₹ 10095 | 1 | ||
| 2 | 1WD221410000 | SHAFT PIVOT | ₹ 1330 | 1 | ||
| 3 | 1WDF21290000 | COVER, THRUST 2 | ₹ 90 | 2 | ||
| 4 | 1WDF21840000 | BUSH | ₹ 670 | 1 | ||
| 5 | 956021420000 | NUT, U FLANGE | ₹ 32 | 1 | ||
| 6 | 1WDF21510000 | SEAL GUARD | ₹ 210 | 1 | ||
| 7 | 901051230900 | BOLT FLANGE | ₹ 229 | 1 | ||
| 8 | 1WDF248B0000 | COLLAR, ROD 1 | ₹ 130 | 1 | ||
| 9 | 956171210000 | NUT U | ₹ 125 | 1 | ||
| 10 | 1WDF23110100 | CASE CHAIN | ₹ 220 | 1 | ||
| 11 | 903870624200 | COLLAR | ₹ 134 | 2 | ||
| 12 | 901110611900 | BOLT HEX. SOCKET BUTTON | ₹ 37 | 2 | ||
| 13 | 1WDF22100000 | SHOCK ABSORBER ASSY REAR | ₹ 7250 | 1 | ||
| 14 | 901051209300 | BOLT FLANGE | ₹ 90 | 1 | ||
| 15 | 956171210000 | NUT U | ₹ 125 | 1 | ||
| 16 | 1WDF16680100 | LABEL TIRE | ₹ 27 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series REAR ARM & SUSPENSION
