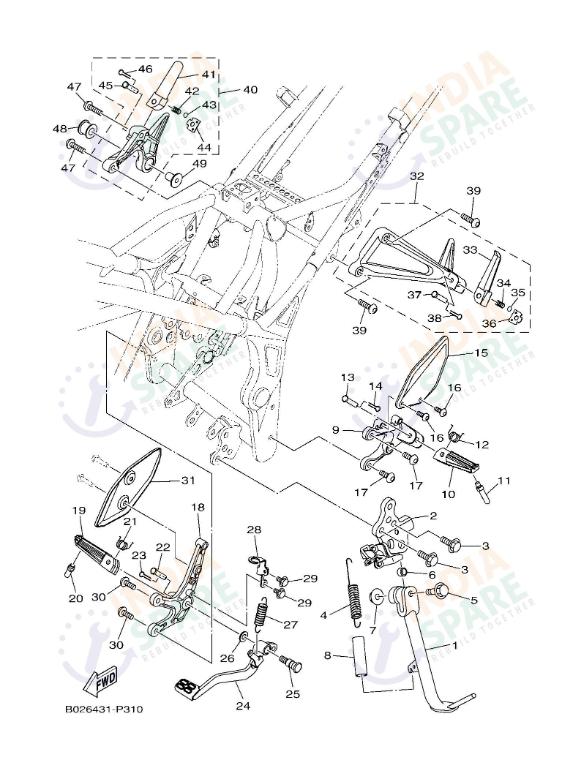

STAND & FOOTREST
0
2YS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF73110000 | STAND SIDE | ₹ 690 | 1 | ||
| 2 | 1WDF73211000 | BRACKET SIDE STAND | ₹ 1330 | 1 | ||
| 3 | 958171002500 | BOLT FLANGE | ₹ 50 | 2 | ||
| 4 | 905062381200 | SPRING TENSION | ₹ 700 | 1 | ||
| 5 | 90105106A700 | BOLT, FLANGE | ₹ 94 | 1 | ||
| 6 | 903871001000 | COLLAR | ₹ 175 | 1 | ||
| 7 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 8 | 90445212G300 | HOSE | ₹ 140 | 1 | ||
| 9 | 1WDF74420000 | BRACKET 2 | ₹ 794 | 1 | ||
| 10 | 1WDF74510000 | FOOTREST | ₹ 225 | 1 | ||
| 11 | 1WDF74350000 | BOLT | ₹ 80 | 1 | ||
| 12 | 90508183B900 | SPRING TORSION | ₹ 5 | 1 | ||
| 13 | 902400814500 | PIN CLEVIS | ₹ 6 | 1 | ||
| 14 | 902522280000 | PIN-SPLIT | ₹ 1 | 1 | ||
| 15 | 2MSF74450000 | PLATE 1 | ₹ 1640 | 1 | ||
| 16 | 901110601300 | BOLT,HEX. SOCKET BUTTON | ₹ 146 | 2 | ||
| 17 | 90109085G600 | BOLT | ₹ 60 | 2 | ||
| 18 | 1WDF74430000 | BRACKET 3 | ₹ 650 | 1 | ||
| 19 | 1WDF74610000 | FOOTREST | ₹ 225 | 1 | ||
| 20 | 1WDF74350000 | BOLT | ₹ 80 | 1 | ||
| 21 | 90508183B900 | SPRING TORSION | ₹ 5 | 1 | ||
| 22 | 902400814500 | PIN CLEVIS | ₹ 6 | 1 | ||
| 23 | 902522280000 | PIN-SPLIT | ₹ 1 | 1 | ||
| 24 | 1WDF72110000 | PEDAL, BRAKE | ₹ 875 | 1 | ||
| 25 | 4BP272611000 | SHAFT | ₹ 300 | 1 | ||
| 26 | 902011084100 | WASHER PLATE | ₹ 4 | 1 | ||
| 27 | 905062680700 | SPRING TENSION | ₹ 18 | 1 | ||
| 28 | 1WDF144G0000 | STAY STOP SWITCH | ₹ 80 | 1 | ||
| 29 | 958020601000 | BOLT FLANGE | ₹ 3 | 2 | ||
| 30 | 90109085G600 | BOLT | ₹ 60 | 2 | ||
| 31 | 2MSF74460000 | PLATE 2 | ₹ 1860 | 1 | ||
| 32 | 1WDF74300100 | REAR FOOTREST ASSY | ₹ 1275 | 1 | ||
| 33 | 1WDF74310100 | FOOTREST, REAR 1 | ₹ 217 | 1 | ||
| 34 | 905011274300 | SPRING COMPRESSION | ₹ 2 | 1 | ||
| 35 | 935010401100 | BALL | ₹ 5 | 1 | ||
| 36 | 1WDF74370000 | WASHER SPECIAL | ₹ 22 | 1 | ||
| 37 | 902400814500 | PIN CLEVIS | ₹ 6 | 1 | ||
| 38 | 902522280000 | PIN-SPLIT | ₹ 1 | 1 | ||
| 39 | 901100807100 | BOLT HEXAGON SOCKET HEAD | ₹ 82 | 2 | ||
| 40 | 1WDF74400100 | REAR FOOTREST ASSY | ₹ 1275 | 1 | ||
| 41 | 1WDF74410100 | FOOTREST, REAR 2 | ₹ 217 | 1 | ||
| 42 | 905011274300 | SPRING COMPRESSION | ₹ 2 | 1 | ||
| 43 | 935010401100 | BALL | ₹ 5 | 2 | ||
| 44 | 1WDF74370000 | WASHER SPECIAL | ₹ 22 | 1 | ||
| 45 | 902400814500 | PIN CLEVIS | ₹ 6 | 1 | ||
| 46 | 902522280000 | PIN-SPLIT | ₹ 1 | 1 | ||
| 47 | 901100807100 | BOLT HEXAGON SOCKET HEAD | ₹ 82 | 2 | ||
| 48 | 5TPE47470000 | DAMPER MUFFLER | ₹ 21 | 1 | ||
| 49 | 903870883000 | COLLAR | ₹ 64 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YS3 R3 Series STAND & FOOTREST
