B627

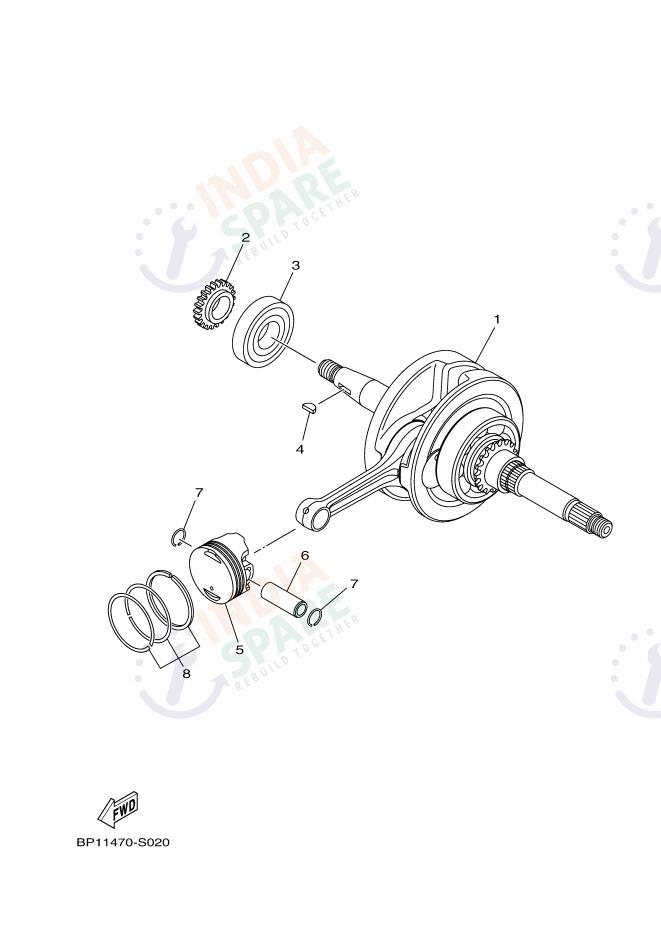

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BP1E14000000 | CRANKSHAFT ASSY | ₹ 2659 | 1 | ||
| 2 | 1GCE33240000 | GEAR PUMP DRIVE | ₹ 124 | 1 | ||
| 3 | 93306372X600 | BEARING | ₹ 413 | 1 | ||
| 4 | 902800301700 | KEY WOODRUFF | ₹ 4 | 1 | ||
| 5 | 1GCE16311000 | 1GCE16311000 | ₹ 0 | 1 | ||
| 5 | 1GCE16361900 | PISTON (0.50MM O/S | ₹ 322 | 1 | ||
| 5 | 1GCE16380900 | PISTON (1.00MM O-S) | ₹ 322 | 1 | ||
| 6 | 5KAE16330000 | PIN PISTON | ₹ 82 | 1 | ||
| 7 | 934501408800 | CIRCLIP | ₹ 2 | 2 | ||
| 8 | 1GCE16030000 | PISTON RING SET (STD) | ₹ 212 | 1 | ||
| 8 | 1GCE16050000 | PISTON RING SET (0.50MM O-S) | ₹ 221 | 1 | ||
| 8 | 1GCE16070000 | PISTON RING SET (1.00MM O-S) | ₹ 221 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The B627 Crankshaft & Piston assembly is the powerhouse of your Yamaha RayZR, converting combustion into thrilling motion. This kit features the high-strength Crankshaft Assy and multiple precision-engineered piston options: 1GCE16311000, Piston (0.50mm O/S), and Piston (1.00mm O-S). Synchronization is handled by a high-durability Gear Pump Drive and a high-quality Bearing. The assembly includes the Pin Piston and Circlip for secure installation, along with a full range of Piston Ring Sets (STD, 0.50mm O-S, and 1.00mm O-S) for a perfect cylinder seal and maximum power. Every component is engineered to withstand the intense pressures of the engine, providing the technical clarity of a smooth, balanced rotating assembly. By choosing genuine Yamaha parts, you ensure maximum power output and long-term durability. Whether you are performing a rebuild or a refresh, this kit offers the purchase confidence and technical excellence required for peak performance. Ride with the heart of a storyteller and the power of Yamaha’s finest engineering at the very core of your machine.
