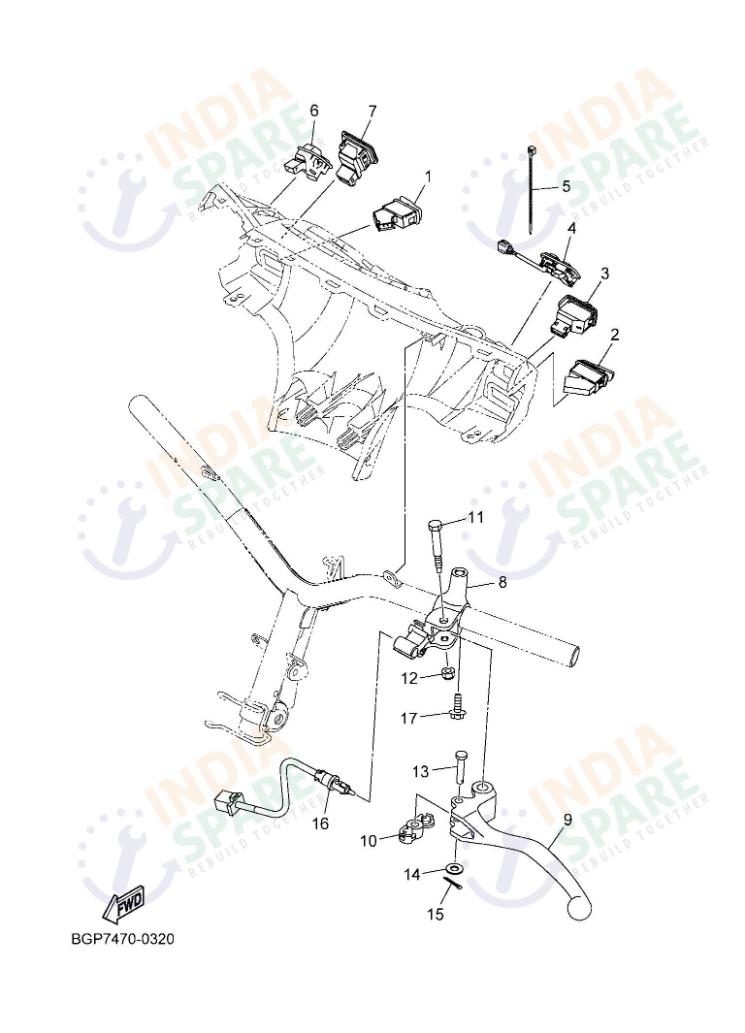

BGP7
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JH279A0000 | STARTER SWITCH COM | ₹ 105 | 1 | ||
| 2 | 1GCH396U0000 | SWITCH | ₹ 60 | 1 | ||
| 3 | 1GCH33620100 | HAZARD FLASHER SWITCH | ₹ 85 | 1 | ||
| 4 | BGPH39750000 | SWITCH, HANDLE 2 | ₹ 520 | 1 | ||
| 5 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 6 | B7JH277A0000 | IDELE STOP SW.COMP | ₹ 130 | 1 | ||
| 7 | B7JH273W0000 | DRL. SWITCH COMP. | ₹ 122 | 1 | ||
| 8 | BP1H29110000 | HOLDER LEVER 1 | ₹ 138 | 1 | ||
| 9 | BP1H39120000 | LEVER 1 | ₹ 118 | 1 | ||
| 10 | BP1F56810000 | EQUALIZER BRAKE | ₹ 23 | 1 | ||
| 11 | BP1H39450000 | BOLT LEVER | ₹ 17 | 1 | ||
| 12 | 901850680600 | NUT SELF-LOCKING | ₹ 2 | 1 | ||
| 13 | 917020602800 | PIN CLEVIS | ₹ 58 | 1 | ||
| 14 | 90201061H100 | WASHER PLATE | ₹ 2 | 1 | ||
| 15 | 902522780000 | PIN SPLIT | ₹ 1 | 1 | ||
| 16 | 1GCH29171000 | SWITCH | ₹ 36 | 1 | ||
| 17 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This Yamaha Fascino Handle Switch & Lever assembly provides complete control over your scooter’s features. It includes the Starter Switch Com, Hazard Flasher Switch, and the specialized DRL Switch Comp for daytime running lights. The kit also features the Equalizer Brake system and Lever 1 components, complete with all necessary Clevis Pins and Washers. These genuine controls offer a tactile, high-quality feel and long-lasting electrical contacts for daily use.
