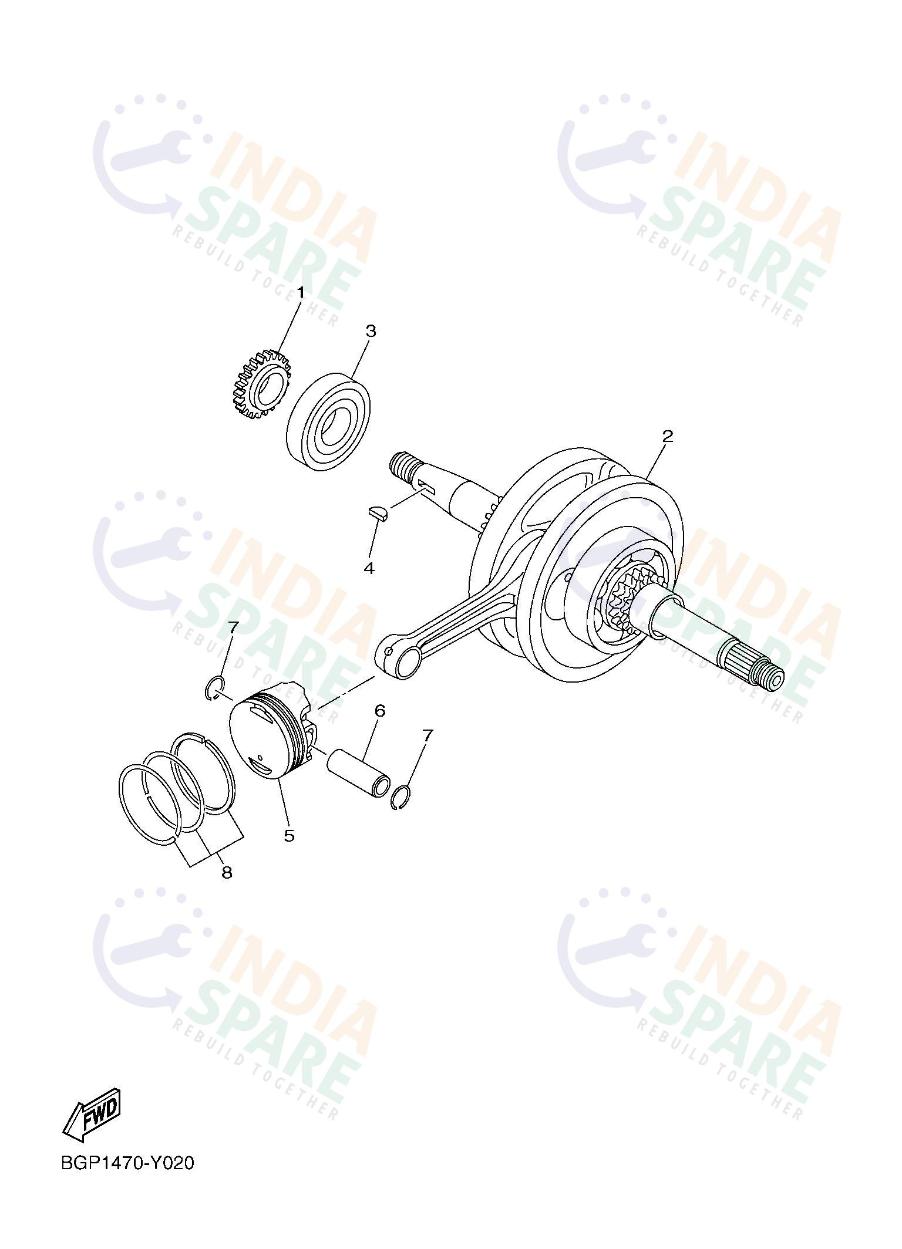

BGP8
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE33240000 | GEAR PUMP DRIVE | ₹ 83 | 1 | ||
| 2 | B7JE14002000 | CRANKSHAFT ASSY | ₹ 2890 | 1 | ||
| 3 | 93306372YA00 | BEARING | ₹ 340 | 1 | ||
| 4 | 902800301700 | KEY WOODRUFF | ₹ 4 | 1 | ||
| 5 | B7JE16312000 | ₹ 0 | 1 | |||
| 6 | B7JE16330000 | PIN PISTON | ₹ 55 | 1 | ||
| 7 | 934501408800 | CIRCLIP | ₹ 2 | 2 | ||
| 8 | B7JE16033000 | PISTON RING SET (STD) | ₹ 654 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Restore your engine’s core power with the Yamaha Fascino Crankshaft & Piston assembly. This critical kit features the Crankshaft Assy, Piston, and Piston Ring Set for optimal compression. It includes the Piston Pin and Circlips, along with the Woodruf Key for accurate timing alignment. Precision-engineered for balance and durability, these genuine parts minimize engine vibration and provide the reliability needed for thousands of kilometers of riding.
