BGP8

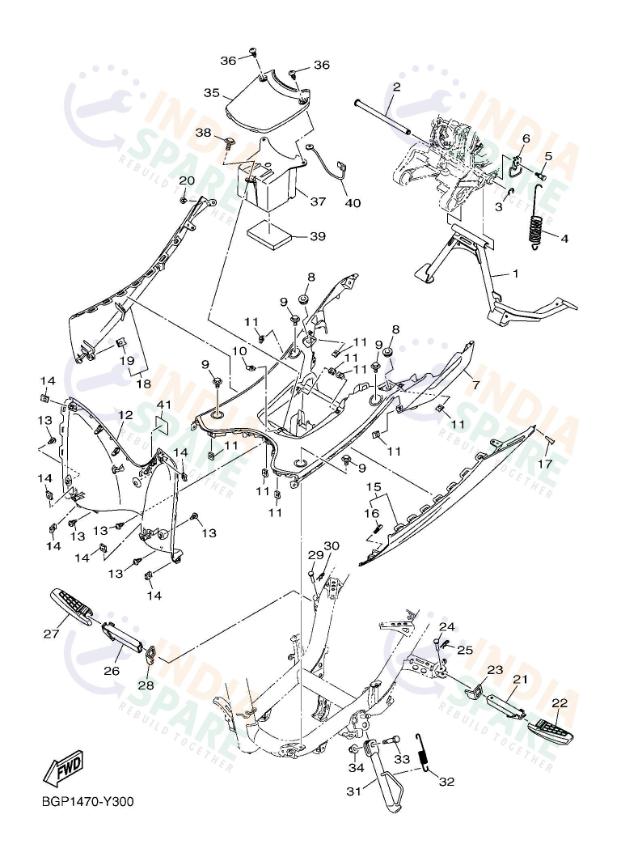

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF71110100 | STAND MAIN | ₹ 577 | 1 | ||
| 2 | B7JF71120000 | SHAFT MAIN STAND | ₹ 63 | 1 | ||
| 3 | 990020960000 | CIRCLIP | ₹ 4 | 1 | ||
| 4 | 905063582800 | SPRING TENSION | ₹ 48 | 1 | ||
| 5 | B7JF72540000 | HOOK | ₹ 18 | 1 | ||
| 6 | B7JF72670000 | GUIDE WIRE | ₹ 34 | 1 | ||
| 7 | B7JF74810000 | BOARD FOOTREST | ₹ 447 | 1 | ||
| 8 | 904801339800 | GROMMET | ₹ 10 | 2 | ||
| 9 | 901090620200 | BOLT | ₹ 13 | 4 | ||
| 10 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 9 | ||
| 12 | B7JF74880000 | BOARD FOOTREST 2 | ₹ 193 | 1 | ||
| 13 | 977025001200 | SCREW TAPPING | ₹ 11 | 5 | ||
| 14 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||

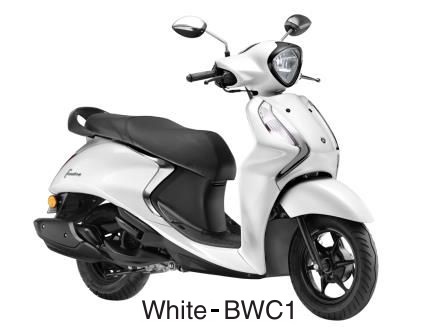

| 15A | B7JXF74900PF | MOLE, SIDE 1 ASSY. | ₹ 331 | 1 | FOR BWC1 | |
| 15B | B7JXF74900P5 | MOLE SIDE 1 ASSY. VRC1 | ₹ 242 | 1 | FOR VRC1 | |
| 16 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 17 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 18A | B7JXF74F00PE | MOLE, SIDE 2 ASSY. | ₹ 331 | 1 | FOR BWC1 | |
| 18B | B7JXF74F00P5 | MOLE SIDE 2 ASSY. VRC1 | ₹ 242 | 1 | FOR VRC1 | |
| 19 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 20 | 902690681300 | RIVET | ₹ 8 | 1 | ||
| 21 | B7JF74310000 | FOOTREST REAR 1 | ₹ 181 | 1 | ||
| 22 | 1GCF74330200 | COVER, REAR FOOTREST | ₹ 59 | 1 | ||
| 23 | 1GCF74450000 | PLATE 1 | ₹ 10 | 1 | ||
| 24 | 902400681100 | PIN CLEVIS | ₹ 12 | 1 | ||
| 25 | 904681200700 | CLIP | ₹ 10 | 1 | ||
| 26 | B7JF74410000 | FOOTREST REAR 2 | ₹ 181 | 1 | ||
| 27 | 1GCF74440200 | COVER, REAR FOOTREST | ₹ 59 | 1 | ||
| 28 | 1GCF74460000 | PLATE 2 | ₹ 10 | 1 | ||
| 29 | 902400681100 | PIN CLEVIS | ₹ 12 | 1 | ||
| 30 | 904681200700 | CLIP | ₹ 10 | 1 | ||
| 31 | B7JF73110000 | STAND SIDE | ₹ 226 | 1 | ||
| 32 | 905062081800 | SPRING TENSION | ₹ 20 | 1 | ||
| 33 | B7JF72170000 | BOLT | ₹ 41 | 1 | ||
| 34 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 35 | B7JH21290000 | COVER BATTERY | ₹ 44 | 1 | ||
| 36 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 37 | B7JH212B0000 | BOX BATTERY 1 | ₹ 66 | 1 | ||
| 38 | 90119068D400 | BOLT WITH WASHER | ₹ 7 | 1 | ||
| 39 | 905200881400 | DAMPER PLATE | ₹ 14 | 1 | ||
| 40 | B7JH211A0100 | ROPE | ₹ 9 | 1 | ||
| 41 | B7JF15680000 | LABEL WARNING | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Restore the stability and comfort of your scooter with the Yamaha Fascino Stand & Footrest assembly. This robust kit features the Main Stand, Side Stand, and the Footrest Board for both the rider and passenger. Key mechanical parts like the Shaft Main Stand, Tension Springs, and various Pin Clevis items are included to ensure smooth operation. High-quality rubber Gaskets and Dampers prevent vibrations, while the genuine metal components offer superior rust resistance.
