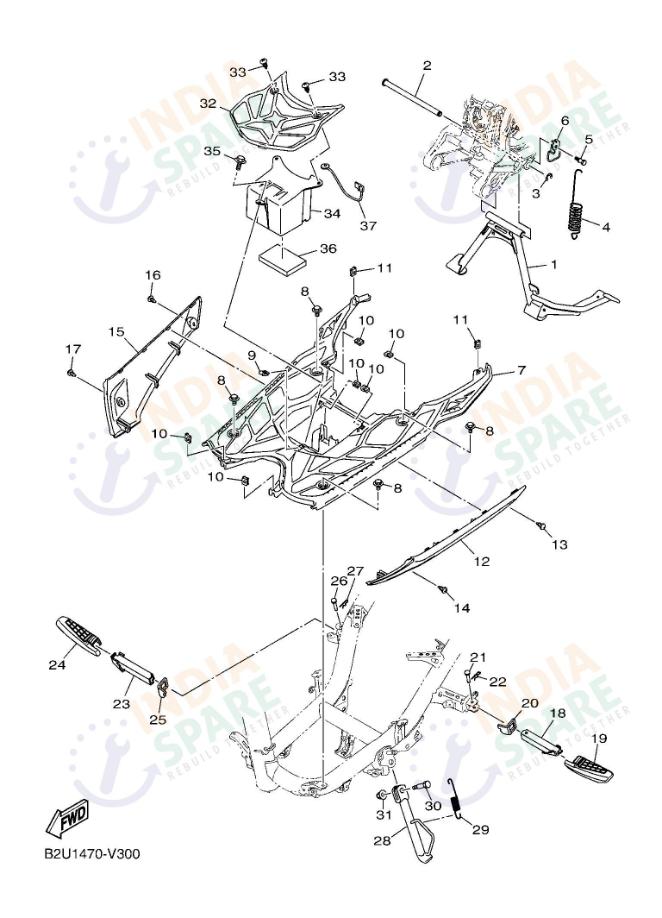

BKXE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF71110100 | STAND MAIN | ₹ 577 | 1 | ||
| 2 | B7JF71120000 | SHAFT MAIN STAND | ₹ 63 | 1 | ||
| 3 | 990020960000 | CIRCLIP | ₹ 4 | 1 | ||
| 4 | 905063582800 | SPRING TENSION | ₹ 48 | 1 | ||
| 5 | B7JF72540000 | HOOK | ₹ 18 | 1 | ||
| 6 | B7JF72670000 | GUIDE WIRE | ₹ 34 | 1 | ||
| 7 | B2UF74810000 | BOARD FOOTREST | ₹ 460 | 1 | ||
| 8 | 901090620200 | BOLT | ₹ 13 | 4 | ||
| 9 | 901830681800 | NUT SPRING | ₹ 23 | 1 | ||
| 10 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 11 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 12 | B2UF74820000 | MOLD FOOTREST | ₹ 69 | 1 | ||
| 13 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 1 | ||
| 14 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 1 | ||
| 15 | B2UF74920000 | MOLD FOOTREST 2 | ₹ 69 | 1 | ||
| 16 | 901110582100 | BOLT HEX. SOCKET BUTTON | ₹ 6 | 1 | ||
| 17 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 1 | ||
| 18 | B7JF74310000 | FOOTREST REAR 1 | ₹ 181 | 1 | ||
| 19 | 1GCF74330200 | COVER, REAR FOOTREST | ₹ 59 | 1 | ||
| 20 | 1GCF74450000 | PLATE 1 | ₹ 10 | 1 | ||
| 21 | 902400681100 | PIN CLEVIS | ₹ 12 | 1 | ||
| 22 | 904681200700 | CLIP | ₹ 10 | 1 | ||
| 23 | B7JF74410000 | FOOTREST REAR 2 | ₹ 181 | 1 | ||
| 24 | 1GCF74440200 | COVER, REAR FOOTREST | ₹ 59 | 1 | ||
| 25 | 1GCF74460000 | PLATE 2 | ₹ 10 | 1 | ||
| 26 | 902400681100 | PIN CLEVIS | ₹ 12 | 1 | ||
| 27 | 904681200700 | CLIP | ₹ 10 | 1 | ||
| 28 | B7JF73110000 | STAND SIDE | ₹ 226 | 1 | ||
| 29 | 905062081800 | SPRING TENSION | ₹ 20 | 1 | ||
| 30 | B7JF72170000 | BOLT | ₹ 41 | 1 | ||
| 31 | 956021020000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 32 | B2UH21290000 | COVER BATTERY | ₹ 58 | 1 | ||
| 33 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 34 | B2UH212B0000 | BOX BATTERY 1 | ₹ 66 | 1 | ||
| 35 | 90119068D400 | BOLT WITH WASHER | ₹ 7 | 1 | ||
| 36 | 905200881400 | DAMPER PLATE | ₹ 14 | 1 | ||
| 37 | B7JH211A0100 | ROPE | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Stability meets style in the BKXE Stand & Footrest assembly, a vital kit for any Yamaha RayZR owner. This setup features the robust Stand Main and Stand Side, both supported by high-tension Spring Tension and Hook components. For rider and passenger comfort, we provide the Board Footrest, Mold Footrest 1 and 2, and the Rear Footrest 1 and 2 sets. Technical hardware like the Shaft Main Stand, Circlip, and Nut U Flange ensure a solid installation. We’ve also included the Rear Footrest Plate, Cover, and specialized Damper Plate to isolate vibrations. To protect your electronics, the kit features the Box Battery 1 and Cover Battery, secured with Bolt With Washer and Screw Tapping units. Every detail is accounted for, including the Pin Clevis, Clip, and even the specialized Rope and Guide Wire for routing. This assembly offers the purchase confidence required for safe parking and the storytellers comfort on long urban journeys. By choosing genuine Yamaha hardware, you ensure your scooter remains stable and comfortable.
