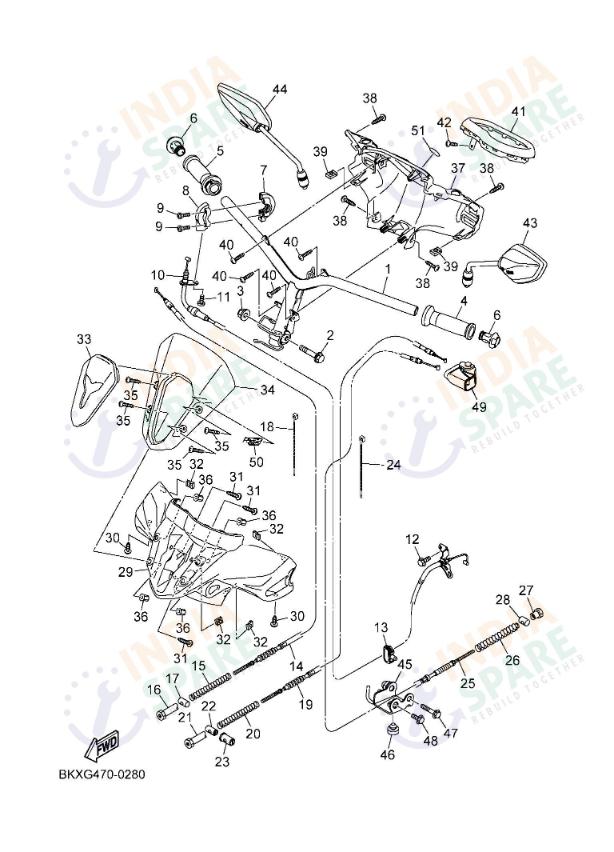

BKXE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B2UF61101000 | HANDLE COMP. | ₹ 638 | 1 | ||
| 2 | 901051029500 | BOLT FLANGE | ₹ 24 | 1 | ||
| 3 | 901851080400 | NUT SELF LOCKING | ₹ 15 | 1 | ||
| 4 | B7JF62410100 | GRIP | ₹ 50 | 1 | ||
| 5 | B7JF62400100 | GRIP ASSY | ₹ 69 | 1 | ||
| 6 | B5DF62460000 | END GRIP | ₹ 11 | 2 | ||
| 7 | B7JF62810000 | CAP GRIP UPPER | ₹ 27 | 1 | ||
| 8 | B7JF62820000 | CAP GRIP LOWER | ₹ 27 | 1 | ||
| 9 | 985020502500 | SCREW PAN HEAD | ₹ 4 | 2 | ||
| 10 | B7JF63110000 | CABLE THROTTLE 1 | ₹ 456 | 1 | ||
| 11 | 985070501600 | SCREW, PAN HEAD | ₹ 16 | 1 | ||
| 12 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 13 | 904641080400 | CLAMP | ₹ 6 | 1 | ||
| 14 | B7JF63410100 | CABLE, BRAKE | ₹ 267 | 1 | ||
| 15 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 16 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 17 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 18 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 19 | B7JF63610100 | CABLE, BRAKE | ₹ 267 | 1 | ||
| 20 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 21 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 22 | 902551080000 | PIN WITH HOLE | ₹ 18 | 1 | ||
| 23 | B44F62590000 | COLLAR | ₹ 9 | 1 | ||
| 24 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 25 | B7JF63510100 | CABLE, BRAKE | ₹ 424 | 1 | ||
| 26 | 905011480100 | SPRING COMPRESSION | ₹ 9 | 1 | ||
| 27 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 28 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 29 | B2UF61430000 | COVER HANDLEBAR UPPER 1 | ₹ 645 | 1 | ||
| 30 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 31 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||
| 32 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 33 | B2UF62310000 | COVER HANDLE FRONT | ₹ 30 | 1 | ||
| 34 | B2UF62340000 | SCREEN | ₹ 207 | 1 | ||
| 35 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 36 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 37 | B2UF61450100 | COVER, HANDLE 2 | ₹ 165 | 1 | ||
| 38 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 39 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 40 | 901670507800 | SCREW, TAPPING | ₹ 25 | 4 | ||
| 41 | B2UH355900P0 | COVER METER | ₹ 188 | 1 | ||
| 42 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 43 | B97F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 230 | 1 | ||
| 44 | B97F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 220 | 1 | ||
| 45 | B7JF637G0000 | HOLDER WIRE | ₹ 42 | 1 | ||
| 46 | B7JF14390000 | STOPPER MAIN STAND | ₹ 10 | 1 | ||
| 47 | 950220603500 | BOLT FLANGE | ₹ 11 | 1 | ||
| 48 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 | ||
| 49 | B7JF63720100 | COVER, HANDLE LEVER 1 | ₹ 23 | 1 | ||
| 50 | B7JF45490000 | EMBLEM | ₹ 33 | 1 | ||
| 51 | B4GF836B0000 | TUNING FORK MARK | ₹ 15 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Take control of your Yamaha RayZR’s agile handling with the Steering Handle & Cable assembly. This kit features the high-strength Handle Comp. and the high-response Cable Throttle 1 for instantaneous engine feedback. Comfort is prioritized with the Grip Assy, End Grip, and specialized Cap Grip Upper/Lower units. The braking interface is managed by multiple Cable Brake units, complete with Spring Compression, Nut Brake, and specialized Pin components for a tight, responsive feel. The cockpit aesthetics are completed by the Cover Handlebar Upper 1, Cover Handle Front, Screen, and the prestigious Yamaha Emblem and Tuning Fork Mark. For visibility, we’ve included the Rear View Mirror Assy for both sides. Technical precision is found in the Nut Self Locking, Holder Wire, and Stopper Main Stand. This assembly offers the technical clarity and purchase confidence required for sharp urban maneuvering. Every component, from the Screw Tapping to the Bolt Flange, is designed to feel premium, ensuring your story is told through every turn.
