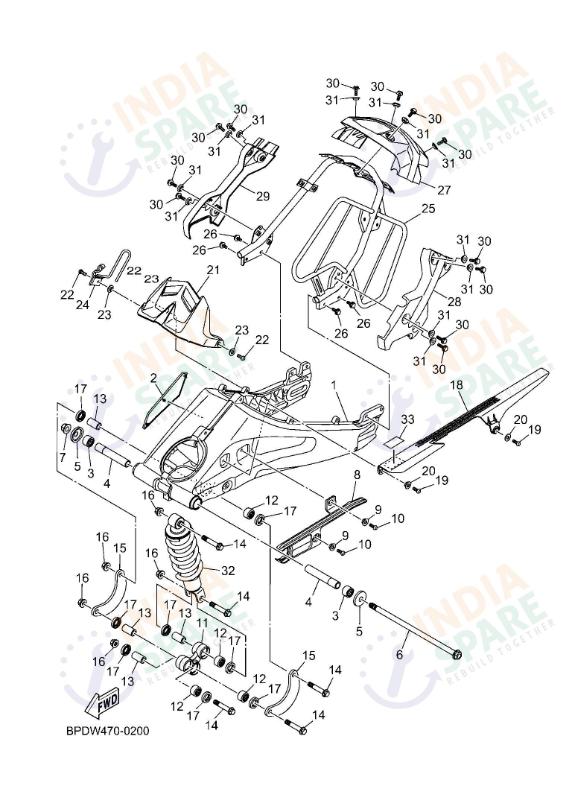

REAR ARM & SUSPENSION

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	BK7F21100000	REAR ARM COMP.	₹ 6535	1
2	BK7F135F0100	COVER	₹ 9	1
3	93317318Y500	BEARING	₹ 253	2
4	BK7F21840000	BUSH	₹ 142	2
5	1CKF21280000	COVER THRUST 1	₹ 21	2
6	BK7F21410000	SHAFT PIVOT	₹ 110	1
7	956021220000	NUT, U FLANGE	₹ 105	1
8	BK7F21510000	SEAL GUARD	₹ 59	1
9	90387068S100	COLLAR	₹ 12	2
10	920120601600	BOLT, BUTTON HEAD	₹ 14	2
11	1CKF217A0000	ARM RELAY	₹ 553	1
12	93315317Y400	BEARING	₹ 80	4
13	903871081400	COLLAR	₹ 38	4
14	901051088700	BOLT FLANGE	₹ 20	5
15	BK7F217F0000	ROD CONNECTING 1	₹ 129	2
16	901791080500	NUT	₹ 53	5
17	931061780200	OIL SEAL	₹ 13	8
18	BK7F23110100	CASE, CHAIN	₹ 51	1
19	920120601600	BOLT, BUTTON HEAD	₹ 14	2
20	90387068S100	COLLAR	₹ 12	2
21	BK7F16500100	REAR FENDER COMP.	₹ 57	1
22	920120601600	BOLT, BUTTON HEAD	₹ 14	3
23	90387068S100	COLLAR	₹ 12	3
24	B9EF587A0000	HOLDER BREAK HOSE	₹ 32	1
25	B97F16430400	STAY FENDAR 3	₹ 797	1
26	958120601200	BOLT, FLANGE	₹ 3	4
27	BK7F23280000	MUD GUARD 2	₹ 124	1
28	BK7F16440000	STAY REAR	₹ 57	1
29	BK7F16450000	STAY REAR	₹ 57	1
30	950270601600	BOLT FLANGE	₹ 5	12
31	903870807900	COLLAR	₹ 81	12
32	BK7F22100000	SHOCK ABSORBER ASSY REAR	₹ 2558	1
33	BK7F16680000	LABEL TIRE	₹ 7	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA BPDW R15 S Series REAR ARM & SUSPENSION
