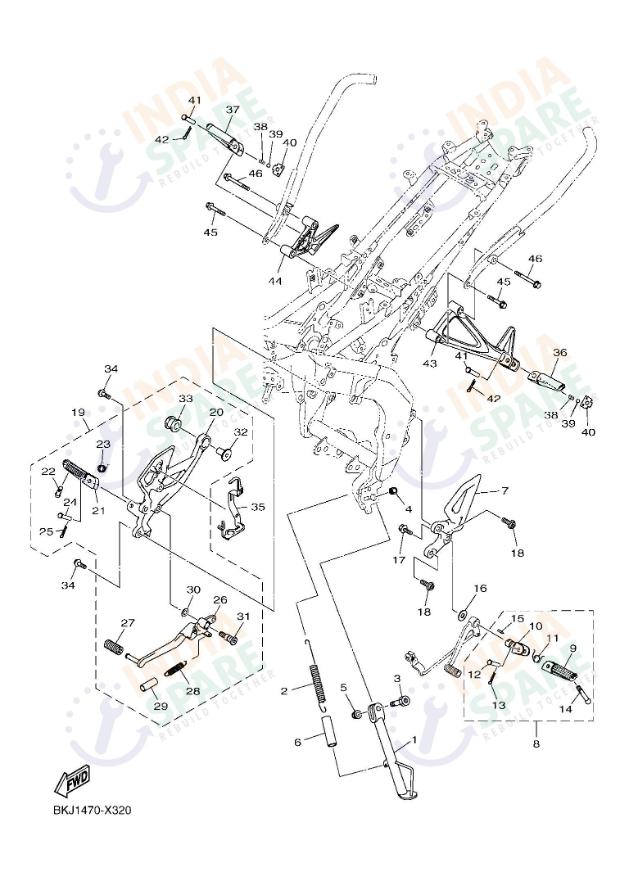

BXU3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BKJF73110000 | STAND SIDE | ₹ 283 | 1 | ||
| 2 | 905062880000 | SPRING TENSION | ₹ 35 | 1 | ||
| 3 | BCWF72170000 | BOLT | ₹ 32 | 1 | ||
| 4 | 903871000300 | COLLAR | ₹ 11 | 1 | ||
| 5 | 901851080400 | NUT SELF LOCKING | ₹ 15 | 1 | ||
| 6 | 904452184800 | HOSE | ₹ 21 | 1 | ||
| 7 | B9DF74420000 | BRACKET 2 | ₹ 259 | 1 | ||
| 8 | BKJF74100000 | FRONT FOOTREST ASSY (LEFT) | ₹ 449 | 1 | ||
| 9 | BCWF74510000 | FOOTREST | ₹ 138 | 1 | ||
| 10 | 20PF74110000 | FOOTREST 1 | ₹ 69 | 1 | ||
| 11 | 90508183B900 | SPRING TORSION | ₹ 5 | 1 | ||
| 12 | 902400880000 | PIN WITH HOLE | ₹ 7 | 1 | ||
| 13 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 14 | 901090822500 | BOLT | ₹ 120 | 1 | ||
| 15 | 902490200200 | PIN | ₹ 5 | 1 | ||
| 16 | 902011006600 | WASHER PLATE | ₹ 88 | 1 | ||
| 17 | 901101001200 | BOLT, HEXAGON SOCKET HEAD | ₹ 20 | 1 | ||
| 18 | 901100880300 | BOLT HEXAGON SOCKET HEAD | ₹ 37 | 2 | ||
| 19 | BKJF74040100 | FOOTREST ASSY 2 | ₹ 1438 | 1 | ||
| 20 | B9DF74430000 | BRACKET 3 | ₹ 480 | 1 | ||
| 21 | BCWF74610000 | FOOTREST | ₹ 138 | 1 | ||
| 22 | 901090822500 | BOLT | ₹ 120 | 1 | ||
| 23 | 90508184B000 | SPRING TORSION | ₹ 5 | 1 | ||
| 24 | 902400814500 | PIN CLEVIS | ₹ 6 | 1 | ||
| 25 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 26 | B9DF72110000 | PEDAL BRAKE | ₹ 417 | 1 | ||
| 27 | 20PE81130100 | COVER, SHIFT PEDAL | ₹ 18 | 1 | ||
| 28 | 905062019300 | SPRING TENSION | ₹ 110 | 1 | ||
| 29 | 904451680700 | HOSE | ₹ 8 | 1 | ||
| 30 | 902011084100 | WASHER PLATE | ₹ 4 | 1 | ||
| 31 | 21CF72610000 | SHAFT | ₹ 110 | 1 | ||
| 32 | 903870884200 | COLLAR | ₹ 34 | 1 | ||
| 33 | BK7E47470000 | DAMPER MUFFLER | ₹ 23 | 1 | ||
| 34 | 901100880300 | BOLT HEXAGON SOCKET HEAD | ₹ 37 | 2 | ||
| 35 | B9DF144G0000 | STAY STOP SWITCH | ₹ 124 | 1 | ||
| 36 | BCWF74310000 | FOOTREST REAR 1 | ₹ 129 | 1 | ||
| 37 | BCWF74410000 | FOOTREST REAR 2 | ₹ 129 | 1 | ||
| 38 | 905011274300 | SPRING COMPRESSION | ₹ 2 | 2 | ||
| 39 | 935010480500 | BALL (C)-(SIZE-6.350MM) | ₹ 2 | 2 | ||
| 40 | BCWF74370000 | WASHER SPECIAL | ₹ 18 | 2 | ||
| 41 | 902400814500 | PIN CLEVIS | ₹ 6 | 2 | ||
| 42 | 902521880000 | PIN SPLIT | ₹ 1 | 2 | ||
| 43 | BCWF741L1000 | BRACKET 4 | ₹ 494 | 1 | ||
| 44 | BCWF742L1000 | BRACKET 5 | ₹ 494 | 1 | ||
| 45 | 901050808900 | BOLT, FLANGE | ₹ 47 | 2 | ||
| 46 | 90105088H700 | BOLT FLANGE | ₹ 22 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Stability meets ergonomics in the MT15 Stand & Footrest assembly, a vital kit for any performance rider. This setup features the robust Stand Side, supported by a high-tension Spring Tension and Bolt. For rider and passenger comfort, we provide the Front Footrest Assy (Left), Footrest 1, and Footrest Rear 1 and 2, all featuring high-quality Spring Torsion and Spring Compression mechanisms. Technical hardware like the Shaft, Collar, Pin With Hole, and Pin Split ensure a secure installation. We’ve also included the Pedal Brake, Cover Shift Pedal, and specialized Damper Muffler to isolate vibrations. Safety is bolstered by the Stay Stop Switch and various Bolt Hexagon Socket Head units. Every Pin Clevis and Ball (C) is included for a professional-grade repair. This assembly offers the purchase confidence required for safe parking and the storytellers comfort on long journeys. By choosing genuine Yamaha hardware, you ensure your machine remains stable, comfortable, and ready for any urban exploration with factory-standard durability.
