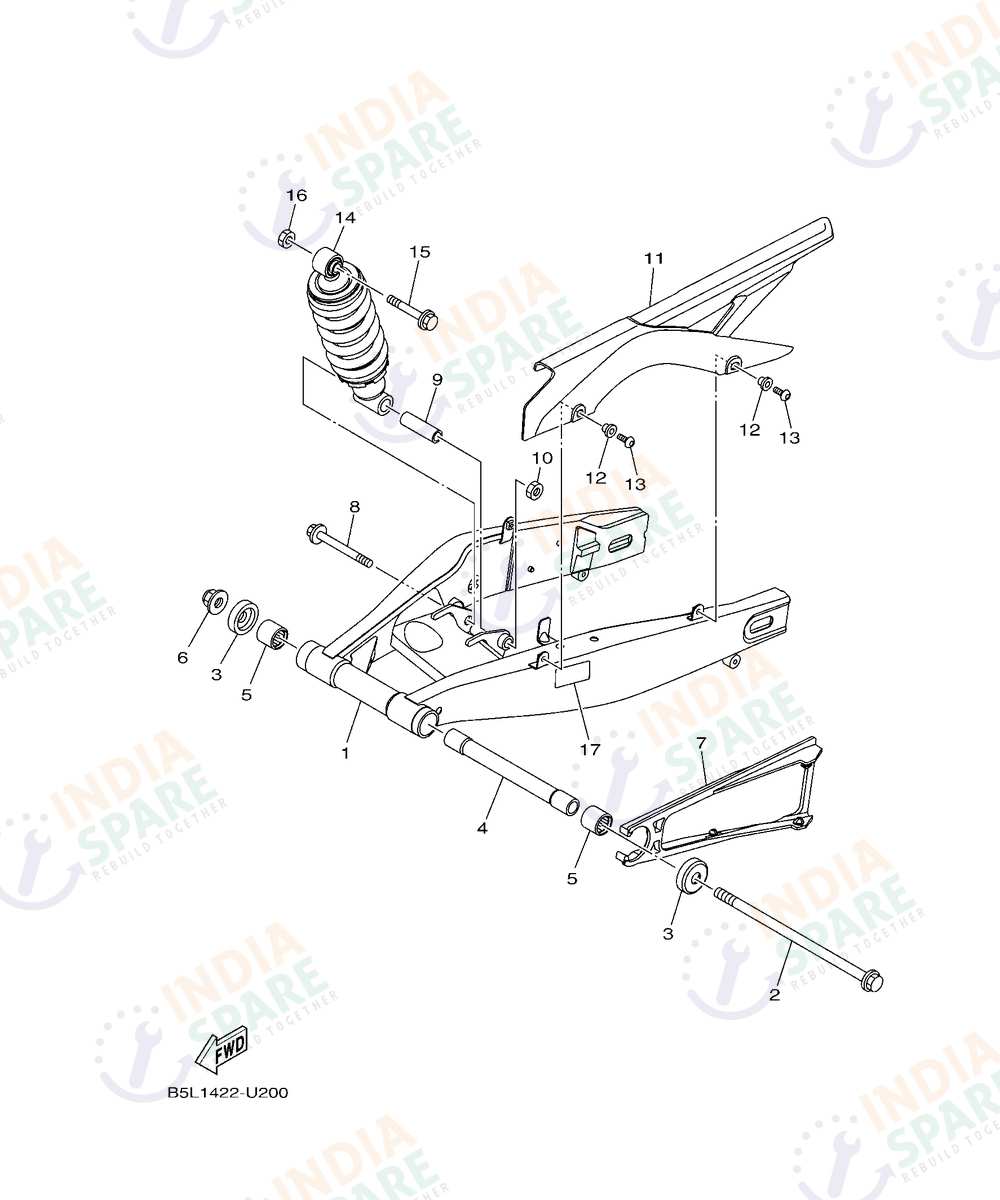

REAR ARM & SUSPENSION
D782
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1WDF21100000 | REAR ARM COMP. | ₹ 12837 | 1 | MBL2 | |
| 2 | 1WD221410000 | SHAFT PIVOT | ₹ 1226 | 1 | ||
| 3 | 1WDF21290100 | COVER, THRUST 2 | ₹ 156 | 2 | ||
| 4 | 1WDF21840000 | BUSH | ₹ 705 | 1 | ||
| 5 | 933203240300 | BEARING | ₹ 340 | 2 | ||
| 6 | 956021420000 | NUT U FLANGE | ₹ 32 | 1 | ||
| 7 | 1WDF21510000 | SEAL GUARD | ₹ 210 | 1 | ||
| 8 | 901051230900 | BOLT FLANGE | ₹ 229 | 1 | ||
| 9 | 1WDF248B0000 | COLLAR ROD 1 | ₹ 124 | 1 | ||
| 10 | 956171210000 | NUT U | ₹ 125 | 1 | ||
| 11 | 1WDF23110100 | CASE CHAIN | ₹ 202 | 1 | ||
| 12 | 903870624200 | COLLAR | ₹ 184 | 2 | ||
| 13 | 901110611900 | BOLT HEX. SOCKET BUTTON | ₹ 37 | 2 | ||
| 14 | BS7F22100000 | SHOCK ABSORBER ASSY, REAR | ₹ 12445 | 1 | ||
| 15 | 901051209300 | BOLT FLANGE | ₹ 90 | 1 | ||
| 16 | 956171210000 | NUT U | ₹ 125 | 1 | ||
| 17 | 2MSF16680100 | LABEL, TIRE | ₹ 75 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - No description available
