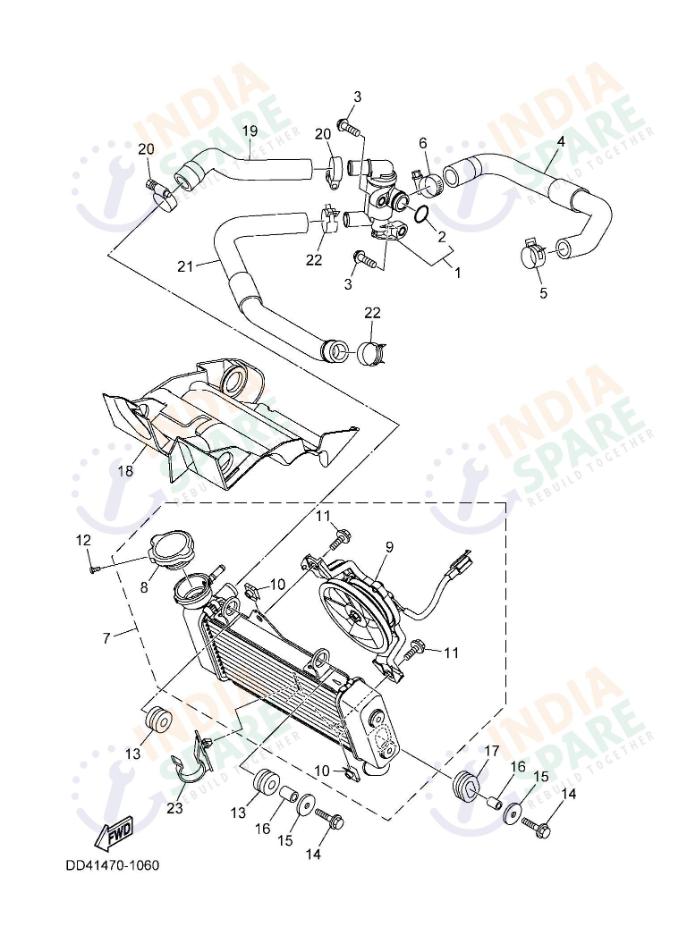

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK6E24100000 | THERMOSTAT ASSY | ₹ 2299 | 1 | ||
| 2 | 52S124390000 | O-RING | ₹ 38 | 1 | ||
| 3 | 950220602000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 4 | BPDE24830000 | PIPE 3 | ₹ 140 | 1 | ||
| 5 | 904671980300 | CLIP | ₹ 40 | 1 | ||
| 6 | 904502780600 | HOSE CLAMP ASSY | ₹ 59 | 1 | ||
| 7 | DD4E24600100 | RADIATOR ASSY | ₹ 5550 | 1 | ||
| 8 | DD4E24620100 | CAP RADIATOR | ₹ 855 | 1 | ||
| 9 | BCWE24051000 | BLOWER ASSY | ₹ 1700 | 1 | ||
| 10 | 5YPE26710000 | NUT 1 | ₹ 65 | 2 | ||
| 11 | 5YPE26750000 | BOLT, BLOWER HOLDING | ₹ 12 | 2 | ||
| 12 | 989070300800 | SCREW, BIND | ₹ 0 | 1 | ||
| 13 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 14 | 958220602500 | BOLT FLANGE | ₹ 21 | 2 | ||
| 15 | 902010607200 | WASHER PLATE | ₹ 29 | 2 | ||
| 16 | 90387064W300 | COLLAR | ₹ 7 | 2 | ||
| 17 | 904800180300 | GROMMET | ₹ 12 | 1 | ||
| 18 | B9EE24670200 | COVER RADIATOR | ₹ 220 | 1 | ||
| 19 | BK7E24810000 | PIPE 1 | ₹ 49 | 1 | ||
| 20 | 904502780600 | HOSE CLAMP ASSY | ₹ 59 | 2 | ||
| 21 | BK7E24820000 | PIPE 2 | ₹ 78 | 1 | ||
| 22 | 904671980300 | CLIP | ₹ 40 | 2 | ||
| 23 | 20PF13380000 | CLAMP | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - To prevent overheating, this assembly includes the complete liquid cooling system. It features the Radiator Assy, the cooling fan (Blower Assy), and the Thermostat. The assembly also provides all necessary radiator hoses, clamps, and pipes. These components work together to maintain a stable engine temperature, even in heavy traffic or high-performance riding conditions.
