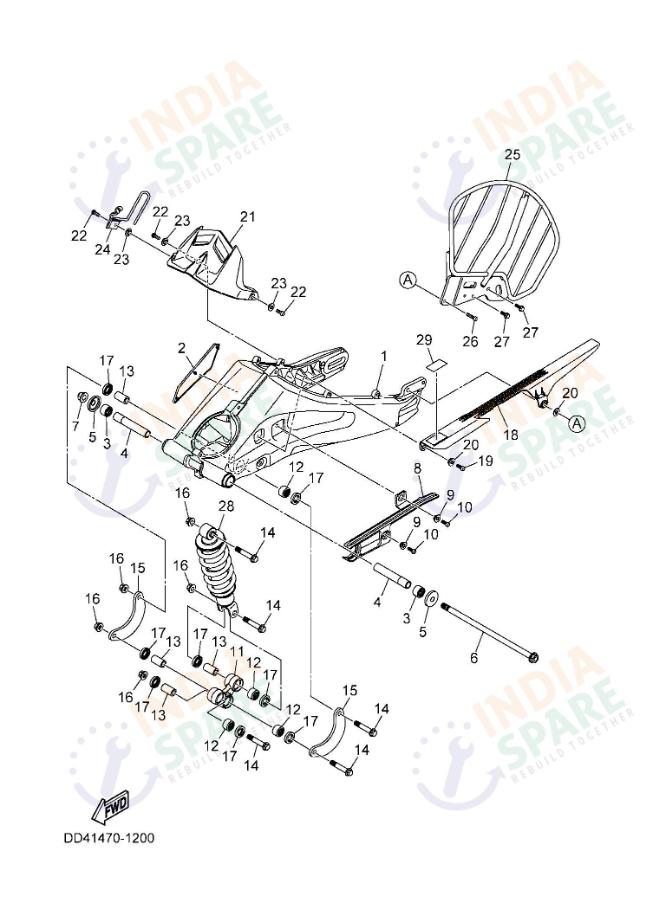

DD41
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | DD4F21100000 | REAR ARM COMP. | ₹ 9650 | 1 | ||
| 2 | BK7F135F0100 | COVER | ₹ 9 | 1 | ||
| 3 | 93317318Y500 | BEARING | ₹ 253 | 2 | ||
| 4 | BK7F21840000 | BUSH | ₹ 142 | 2 | ||
| 5 | 1CKF21280000 | COVER THRUST 1 | ₹ 21 | 2 | ||
| 6 | BK7F21410000 | SHAFT PIVOT | ₹ 110 | 1 | ||
| 7 | 901851280500 | NUT SELF-LOCKING | ₹ 55 | 1 | ||
| 8 | BK7F21510000 | SEAL GUARD | ₹ 59 | 1 | ||
| 9 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 10 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 2 | ||
| 11 | 1CKF217A0000 | ARM RELAY | ₹ 509 | 1 | ||
| 12 | 93315317Y400 | BEARING | ₹ 80 | 4 | ||
| 13 | 903871081400 | COLLAR | ₹ 38 | 4 | ||
| 14 | 901051088700 | BOLT FLANGE | ₹ 20 | 5 | ||
| 15 | BK7F217F0000 | ROD CONNECTING 1 | ₹ 129 | 2 | ||
| 16 | 901791080500 | NUT | ₹ 53 | 5 | ||
| 17 | 931061780200 | OIL SEAL | ₹ 13 | 8 | ||
| 18 | BK7F23110100 | CASE CHAIN | ₹ 51 | 1 | ||
| 19 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 1 | ||
| 20 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 21 | BK7F16500100 | REAR FENDER COMP. | ₹ 57 | 1 | ||
| 22 | 920120601600 | BOLT BUTTON HEAD | ₹ 14 | 3 | ||
| 23 | 90387068S100 | COLLAR | ₹ 12 | 3 | ||
| 24 | B9EF587A0000 | HOLDER BREAK HOSE | ₹ 32 | 1 | ||
| 25 | DD4F16430000 | STAY, REAR | ₹ 840 | 1 | ||
| 26 | 920120602500 | BOLT BUTTON HEAD | ₹ 5 | 1 | ||
| 27 | 958120601600 | BOLT FLANGE | ₹ 3 | 2 | ||
| 28 | DD4F220T0000 | RR. SHOCK ABSORBER | ₹ 4470 | 1 | ||
| 29 | BK7F16680000 | LABEL TIRE | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - This assembly manages the rear-end stability of the XSR. It includes the Rear Arm (swingarm), the Rear Shock Absorber unit, and the relay arms and connecting rods. High-wear parts like bearings, oil seals, and thrust covers are included to ensure the suspension moves smoothly. It also features the chain case and rear fender components to protect the suspension from road grime.
