DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE26510000 | AIR SHROUD CYLINDER 1 | ₹ 44 | 1 | ||
| 2 | BGPE26520000 | AIR SHROUD CYLINDER 2 | ₹ 160 | 1 | ||
| 3 | 905200482100 | DAMPER PLATE | ₹ 8 | 1 | ||
| 4 | B7JE26530000 | AIR SHROUD CYLINDER 3 | ₹ 125 | 1 | ||
| 5 | 905200581900 | DAMPER PLATE | ₹ 8 | 1 | ||
| 6 | 905200482200 | DAMPER PLATE | ₹ 11 | 1 | ||
| 7 | 950220602000 | BOLT FLANGE | ₹ 15 | 3 | ||
| 8 | 977026053000 | SCREW TAPPING | ₹ 9 | 6 | ||
| 9 | B7JE26110000 | FAN | ₹ 115 | 1 | ||
| 10 | 901100688700 | BOLT HEXAGON SOCKET HEAD | ₹ 12 | 3 | ||
| 11 | 1GCE35690000 | PLUG BLIND | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

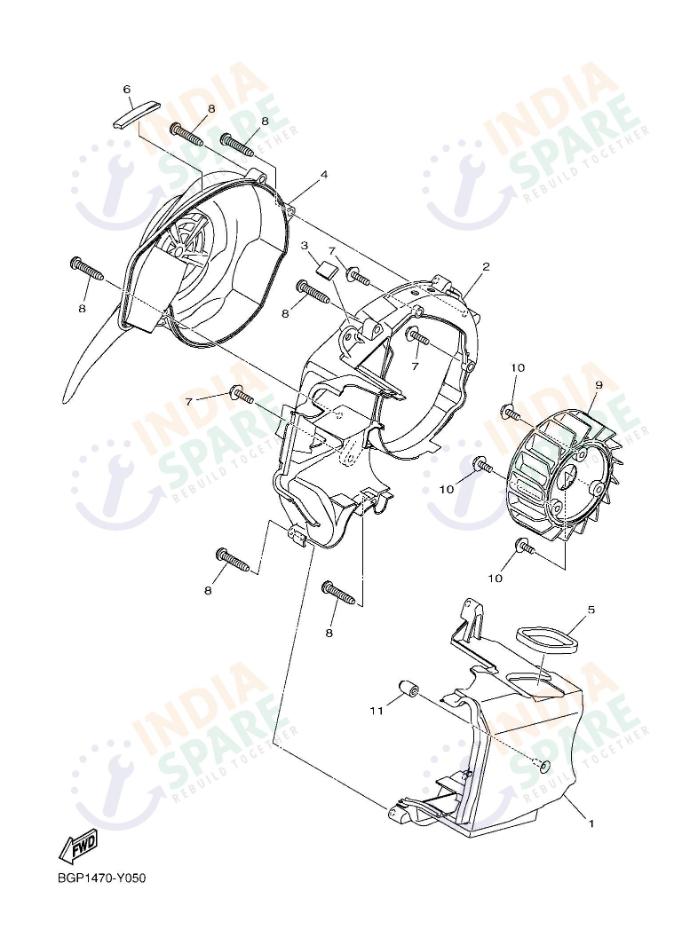

Description: - Prevent engine overheating with the Yamaha Fascino Air Shroud & Fan assembly. This cooling kit includes the Air Shroud Cylinder units and the high-speed Fan. It comes with all required Dampers and Tapping Screws to ensure a secure fit that directs airflow exactly where it is needed. Genuine cooling parts are made from heat-resistant materials that won't warp, ensuring your engine stays at its optimal operating temperature even during the longest rides.
