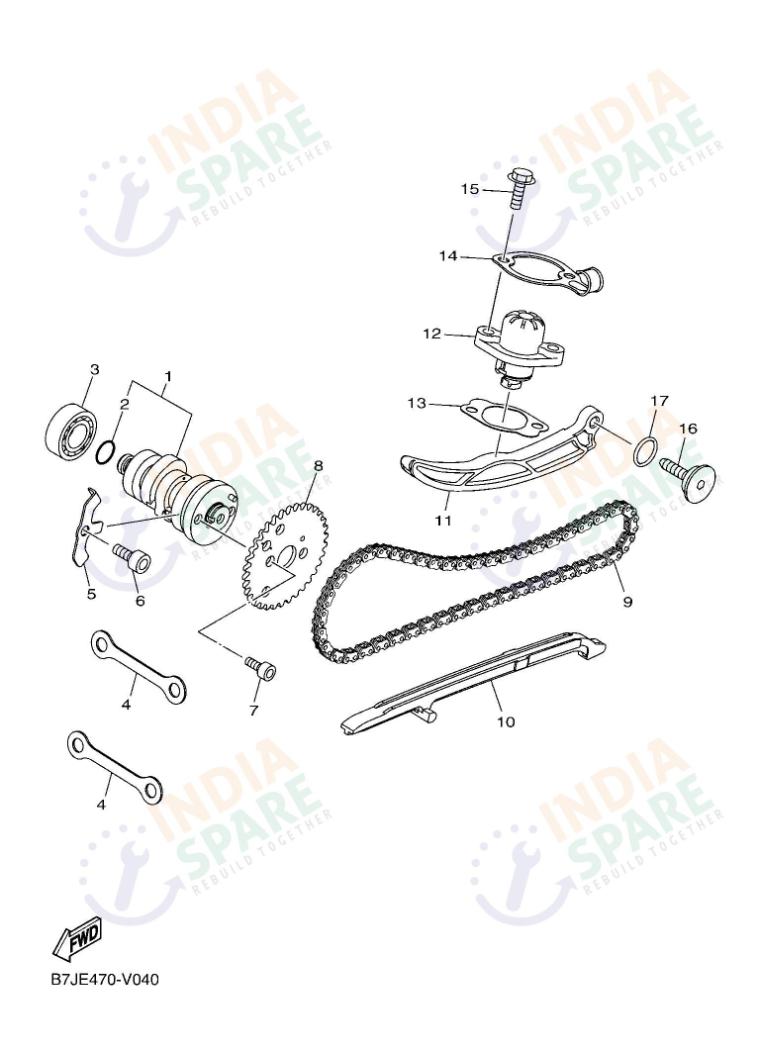

DG55
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE21700000 | CAMSHAFT ASSY 1 | ₹ 1470 | 1 | ||
| 2 | 932100980900 | O-RING | ₹ 15 | 1 | ||
| 3 | 93306001YB00 | BEARING | ₹ 115 | 1 | ||
| 4 | B7JE111F0000 | PLATE | ₹ 15 | 2 | ||
| 5 | B7JE112F0000 | PLATE 2 | ₹ 11 | 1 | ||
| 6 | 901100681000 | BOLT HEX SOCKET HD | ₹ 13 | 1 | ||
| 7 | 913120501000 | BOLT | ₹ 8 | 2 | ||
| 8 | B7JE21760000 | SPROCKET CAM CHAIN | ₹ 67 | 1 | ||
| 9 | 94568J909200 | CHAIN | ₹ 244 | 1 | ||
| 10 | B7JE22310000 | GUIDE STOPPER 1 | ₹ 43 | 1 | ||
| 11 | B7JE22410000 | GUIDE STOPPER 2 | ₹ 59 | 1 | ||
| 12 | B7JE22100000 | TENSIONER ASSY CAM CHAIN | ₹ 175 | 1 | ||
| 13 | B7JE22130000 | GASKET TENSIONER CASE | ₹ 9 | 1 | ||
| 14 | B7JE51180000 | HOLDER | ₹ 14 | 1 | ||
| 15 | 950220602000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 16 | B7JE21570000 | NUT LOCK | ₹ 34 | 1 | ||
| 17 | 932101586200 | O-RING | ₹ 4 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Yamaha Fascino Camshaft & Chain assembly ensures precise engine timing for maximum power. This kit includes the Camshaft Assy, Cam Chain, and the Sprocket Cam Chain. It also features the Tensioner Assy Cam Chain and necessary Holder plates to keep the system aligned. Original timing parts are manufactured to exact specifications, preventing chain stretch and ensuring that your valves open and close at the perfect moment for efficiency and performance.
