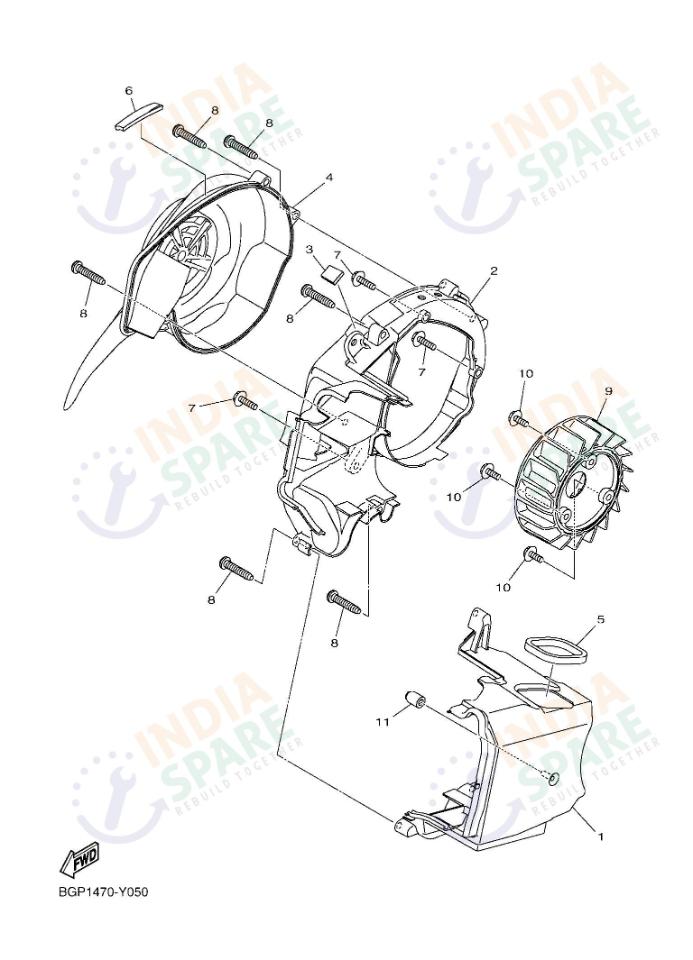

DG56
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JE26510000 | AIR SHROUD CYLINDER 1 | ₹ 44 | 1 | ||
| 2 | BGPE26520000 | AIR SHROUD CYLINDER 2 | ₹ 160 | 1 | ||
| 3 | 905200482100 | DAMPER PLATE | ₹ 8 | 1 | ||
| 4 | B7JE26530000 | AIR SHROUD CYLINDER 3 | ₹ 125 | 1 | ||
| 5 | 905200581900 | DAMPER PLATE | ₹ 8 | 1 | ||
| 6 | 905200482200 | DAMPER PLATE | ₹ 11 | 1 | ||
| 7 | 950220602000 | BOLT FLANGE | ₹ 15 | 3 | ||
| 8 | 977026053000 | SCREW TAPPING | ₹ 9 | 6 | ||
| 9 | B7JE26110000 | FAN | ₹ 115 | 1 | ||
| 10 | 901100688700 | BOLT HEXAGON SOCKET HEAD | ₹ 12 | 3 | ||
| 11 | 1GCE35690000 | PLUG BLIND | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Keep your engine cool with the Yamaha Fascino Air Shroud & Fan assembly. This cooling kit includes the Air Shroud Cylinder units and the high-flow Fan for efficient heat dissipation. It comes with all necessary Dampers and Tapping Screws to ensure a secure, rattle-free fitment around the engine block. Proper airflow is essential for preventing power loss due to overheating, and these genuine parts are designed to maximize the cooling efficiency of your Fascino.
