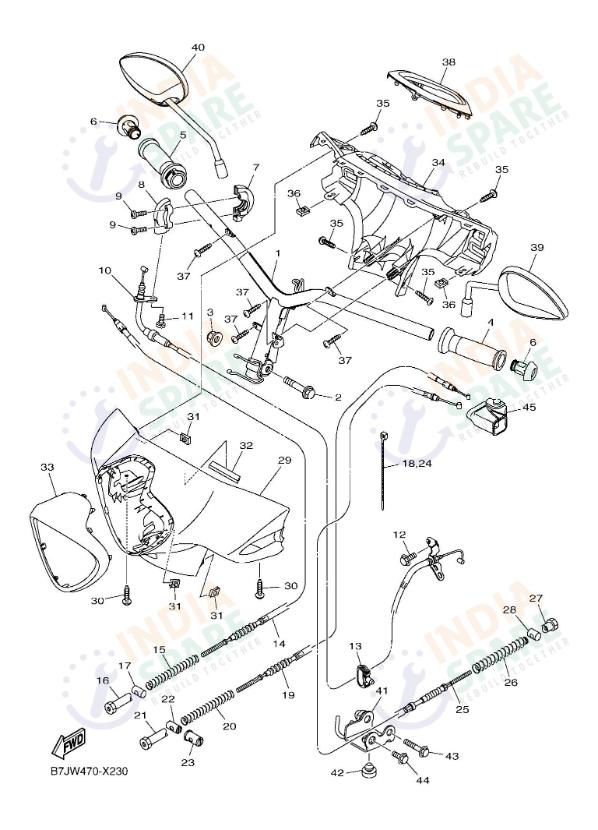

DG56
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B7JF61100000 | HANDLE COMP. | ₹ 638 | 1 | ||
| 2 | 901051029500 | BOLT FLANGE | ₹ 24 | 1 | ||
| 3 | 901851080400 | NUT SELF LOCKING | ₹ 15 | 1 | ||
| 4 | B7JF62410100 | GRIP | ₹ 50 | 1 | ||
| 5 | B7JF62400100 | GRIP ASSY | ₹ 69 | 1 | ||
| 6 | B7JF62460000 | END GRIP | ₹ 13 | 2 | ||
| 7 | B7JF62810000 | CAP GRIP UPPER | ₹ 27 | 1 | ||
| 8 | B7JF62820000 | CAP GRIP LOWER | ₹ 27 | 1 | ||
| 9 | 985020502500 | SCREW PAN HEAD | ₹ 4 | 2 | ||
| 10 | B7JF63110000 | CABLE THROTTLE 1 | ₹ 456 | 1 | ||
| 11 | 985070501600 | SCREW, PAN HEAD | ₹ 16 | 1 | ||
| 12 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 13 | 904641080400 | CLAMP | ₹ 6 | 1 | ||
| 14 | B7JF63410100 | CABLE, BRAKE | ₹ 267 | 1 | ||
| 15 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 16 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 17 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 18 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 19 | B7JF63610100 | CABLE, BRAKE | ₹ 267 | 1 | ||
| 20 | 905011081700 | SPRING COMPRESSION | ₹ 8 | 1 | ||
| 21 | 901790686300 | NUT | ₹ 35 | 1 | ||
| 22 | 902551080000 | PIN WITH HOLE | ₹ 18 | 1 | ||
| 23 | B44F62590000 | COLLAR | ₹ 9 | 1 | ||
| 24 | 904643680000 | CLAMP | ₹ 8 | 1 | ||
| 25 | B7JF63510100 | CABLE, BRAKE | ₹ 424 | 1 | ||
| 26 | 905011480100 | SPRING COMPRESSION | ₹ 9 | 1 | ||
| 27 | 901790680600 | NUT BRAKE | ₹ 17 | 1 | ||
| 28 | 902491200800 | PIN | ₹ 20 | 1 | ||
| 29 | B7JF614300P0 | COVER, HANDLEBAR UPPER 1 | ₹ 889 | 1 | FOR SMX | |
| 30 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 32 | B7JH45270000 | DAMPER | ₹ 4 | 2 | ||
| 33 | B7JF835A10P0 | RIM HEADLIGHT | ₹ 800 | 1 | FOR SMX | |
| 34 | B7JF61450000 | COVER HANDLEBAR UPPER 2 | ₹ 124 | 1 | ||
| 35 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 36 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 37 | 901670507800 | SCREW, TAPPING | ₹ 25 | 4 | ||
| 38 | B7JH355900P2 | COVER METER SMX | ₹ 206 | 1 | FOR SMX | |
| 39 | B7JF62801000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 413 | 1 | ||
| 40 | B7JF62901000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 413 | 1 | ||
| 41 | B7JF637G0000 | HOLDER WIRE | ₹ 42 | 1 | ||
| 42 | B7JF14390000 | STOPPER MAIN STAND | ₹ 10 | 1 | ||
| 43 | 950220603500 | BOLT FLANGE | ₹ 11 | 1 | ||
| 44 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 | ||
| 45 | B7JF63720100 | COVER, HANDLE LEVER 1 | ₹ 23 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Take full command of your ride with the Yamaha Fascino Steering Handle & Cable assembly. This vital system includes the Handle Comp, Throttle Cable, and Brake Cable for responsive handling. The kit also provides the Grip Assy, Upper Handlebar Cover, and the essential Rim Headlight for a complete cockpit overhaul. All technical fasteners, including Nut Self Locking and Pan Head Screws, are provided to ensure a professional and secure fitment that meets strict factory safety standards.
