COWLING 1
1PM6
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 54BXF8350000 | BODY COWLING 1(PANEL ASSY) | ₹ 228 | 1 | ||
| 2 | 5TSF836B0200 | TUNING FORK MARK | ₹ 23 | 1 | ||
| 3 | 54BF83360000 | PLATE | ₹ 37 | 1 | ||
| 4 | 1PMF83810000 | WINDSHIELD | ₹ 253 | 1 | ||
| 5 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 6 | 901790580400 | NUT | ₹ 10 | 4 | ||

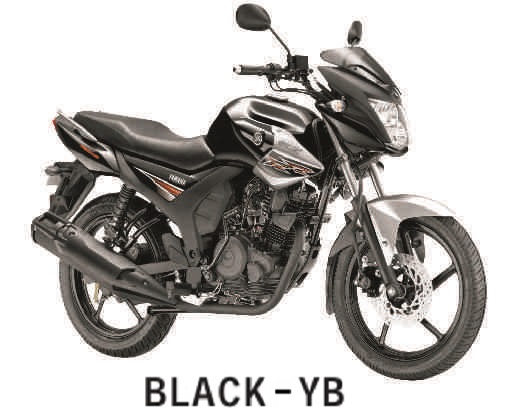

| 7A | 54BF835U0033 | PANEL 1- YB | ₹ 147 | 1 | FOR YB | |

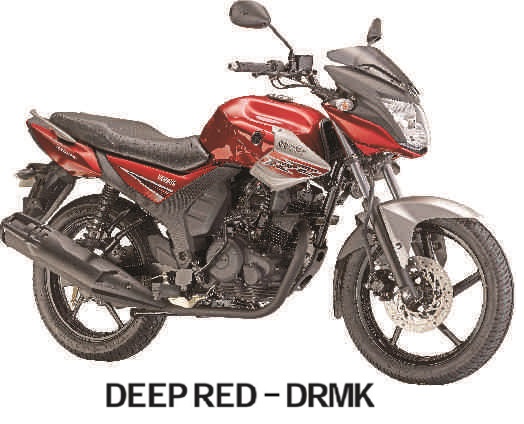

| 7B | 54BF835U00P0 | PANEL 1- DRMK | ₹ 147 | 1 | FOR DRMK | |

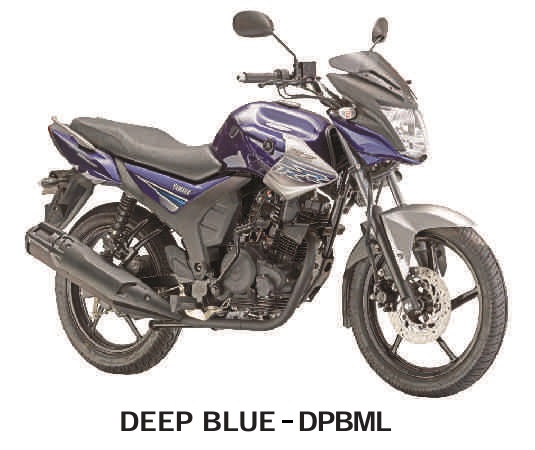

| 7C | 54BF835U00P5 | PANEL 1-DPBML | ₹ 184 | 1 | FOR DPBML | |
| 8 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 1 | ||
| 9 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 1 | ||
| 10A | 54BF835V0033 | PANEL 2 - YB | ₹ 147 | 1 | FOR YB | |
| 10B | 54BF835V00P0 | PANEL 2 - DRMK | ₹ 147 | 1 | FOR DRMK | |
| 10C | 54BF835V00P5 | PANEL 2-DPBML | ₹ 184 | 1 | FOR DPBML | |
| 11 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 1 | ||
| 12 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 1 | ||
| 13 | 54BF836K0000 | PANEL INNER 1 | ₹ 53 | 1 | ||
| 14 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 15 | 901110609600 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 2 | ||
| 16 | 1PMF317M0000 | STAY 3 | ₹ 32 | 1 | ||
| 17 | 901830581400 | NUT SPRING | ₹ 14 | 2 | ||
| 18 | 975070551200 | BOLT WITH WASHER | ₹ 7 | 2 | ||
| 19 | 958070601200 | BOLT FLANGE | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The cowling assembly of your Yamaha SZRR V1 not only defines its aggressive look but also serves to protect your engine and instrumentation from the elements. A well maintained cowling ensures your motorcycle remains aerodynamic and visually striking. Our catalog includes genuine replacement components to restore your bike’s exterior, including the Panel Assy, the protective Windshield, and various mounting brackets. We also provide necessary hardware like Springs and Bolts to ensure a secure, rattle free fit. Whether you are repairing damage from a minor scrape or refreshing your bike’s appearance, our authentic parts guarantee that your SZRR V1 looks as good as the day it left the factory floor. Browse our inventory to find the exact panels and mounting hardware needed to keep your machine protected and styled for the road. Invest in the visual integrity of your motorcycle with our premium components.
