FENDER
0
20P2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

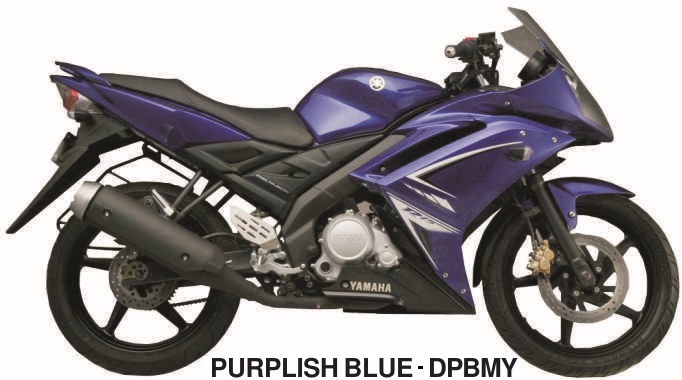

| 1A | 20PF151100P0 | FENDER, FRONT- DPBMY | ₹ 1775 | 1 | FOR DPBMY | |

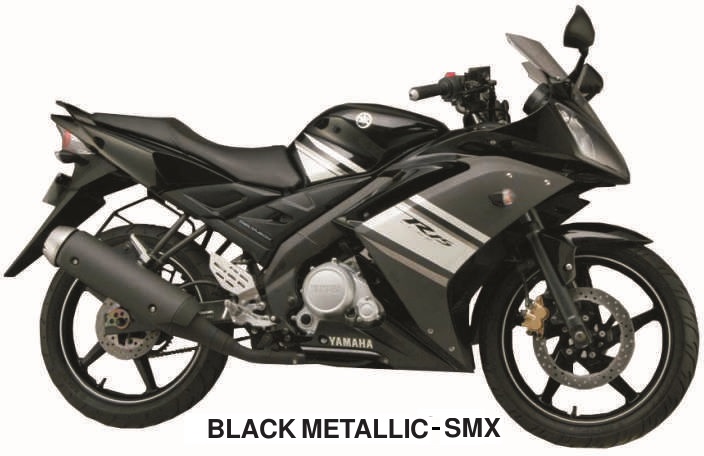

| 1B | 20PF151100P1 | FENDER, FRONT-SMX | ₹ 907 | 1 | FOR SMX | |

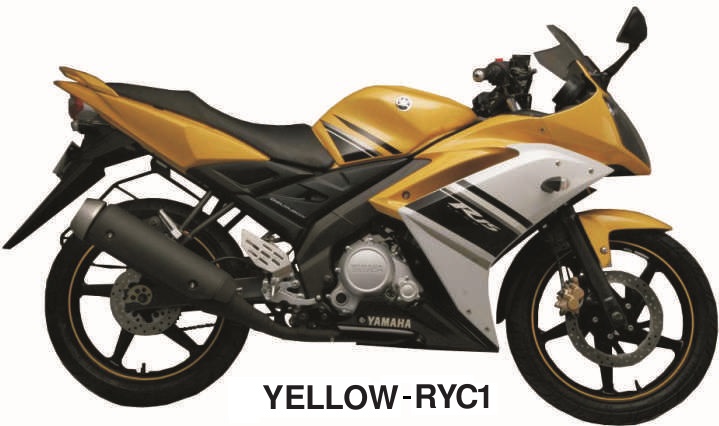

| 1C | 20PF151100P3 | FENDER FRONT-RYC1 | ₹ 907 | 1 | FOR RYC1 | |

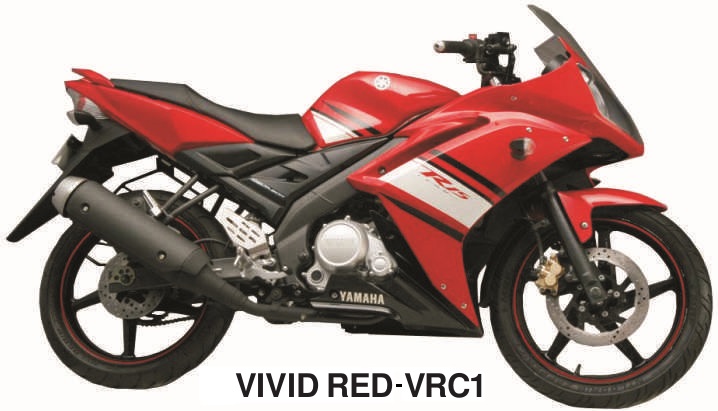

| 1D | 20PF151100P4 | FENDER, FRONT-VRC1 | ₹ 907 | 1 | FOR VRC1 | |
| 2 | 90387068C800 | COLLAR | ₹ 18 | 2 | ||
| 3 | 904801280500 | GROMMET | ₹ 8 | 2 | ||
| 4 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 5 | 904801885900 | GROMMET | ₹ 6 | 2 | ||
| 6 | 901190623300 | BOLT, WITH WASHER | ₹ 21 | 2 | ||
| 7 | 20PF16110000 | FENDER, REAR | ₹ 285 | 1 | ||
| 8 | 20PF16210000 | FLAP | ₹ 54 | 1 | ||
| 9 | 90109063F100 | BOLT | ₹ 33 | 4 | ||
| 10 | 901090618300 | BOLT | ₹ 16 | 2 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 6 | ||
| 12 | 21CF16810000 | PLATE LICENSE | ₹ 45 | 1 | ||
| 13 | 985070601400 | SCREW PAN HEAD | ₹ 9 | 2 | ||
| 14 | 929070660000 | WASHER | ₹ 5 | 2 | ||
| 15 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 16 | 902010607800 | WASHER PLATE | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 20P2 R15 V1 Series FENDER
