FENDER
21C2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

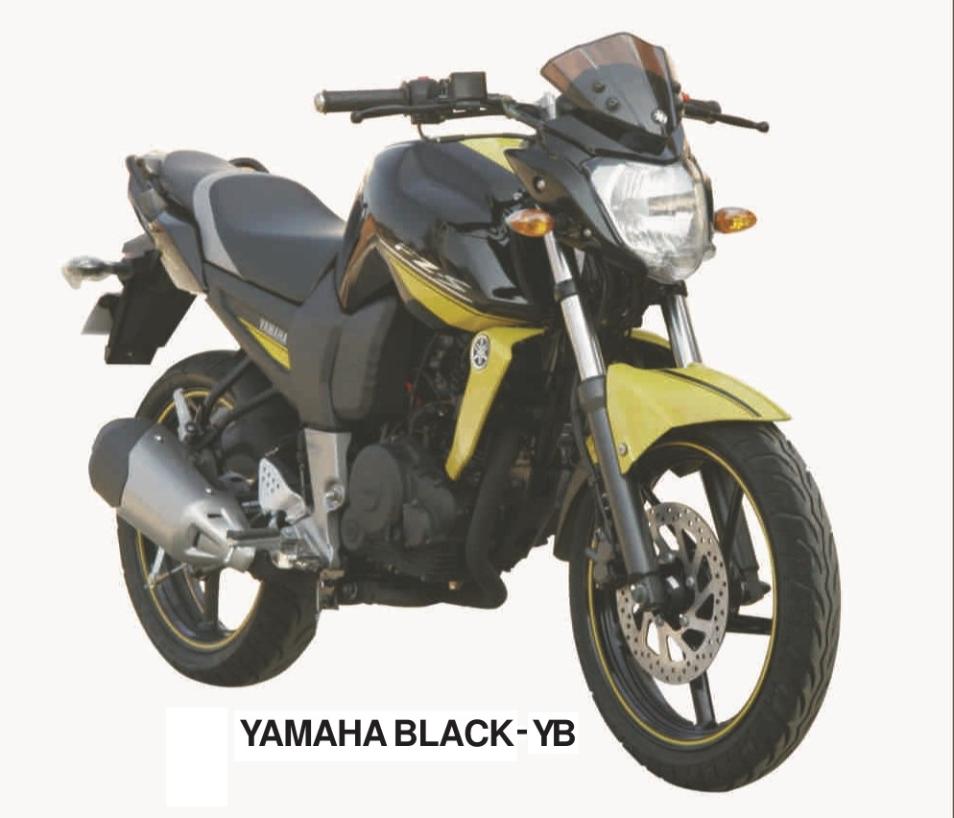

| 1A | 21CXF151303X | FENDER FRONT CALMYELLOW -21C2 | ₹ 702 | 1 | FOR YB | |

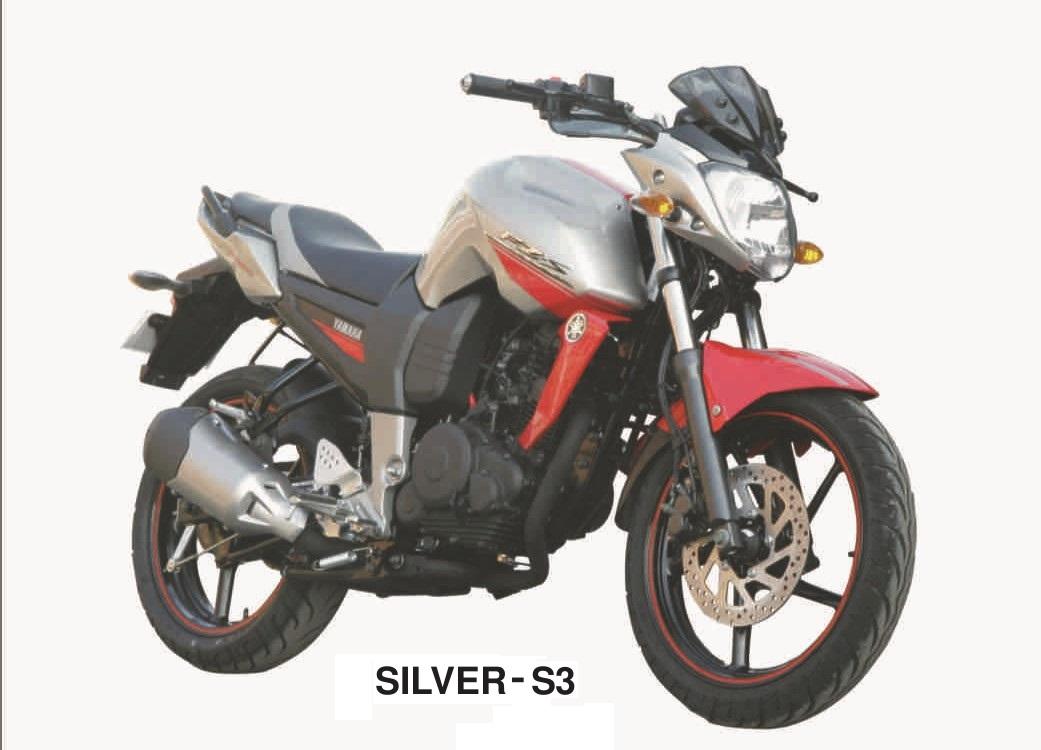

| 1B | 21CXF151404X | FENDER FRONT-VRC1-21C2 | ₹ 702 | 1 | FOR S3 | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 9702N0602000 | BOLT FLANGE | ₹ 3 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G0000 | 21CF177G0000 | ₹ 0 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 976070621400 | SCREW WITH WASHER | ₹ 6 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Staying clean on the road is easy with the fender assembly of the Yamaha FZS V1, designed for maximum protection from road spray plus debris. The Fender Front is shaped to catch water plus mud before they can reach the engine or the rider, while the Fender Rear shields the tail section plus provides a mounting point for the Plate License. These components are made from durable, high impact plastics that can withstand the rigors of daily riding. Secured with specialized Bolts plus Collars, they offer just enough flex to prevent cracking from road vibrations. Small but important details like the Pad Seat plus Seal 2 ensure a snug plus moisture proof fit against the frame. By choosing genuine Yamaha FZS V1 fender parts, you ensure that your motorcycle remains protected from the elements, preserving its appearance plus protecting its sensitive internal components from the harsh environment of the road, journey after journey.
