FENDER
21C3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

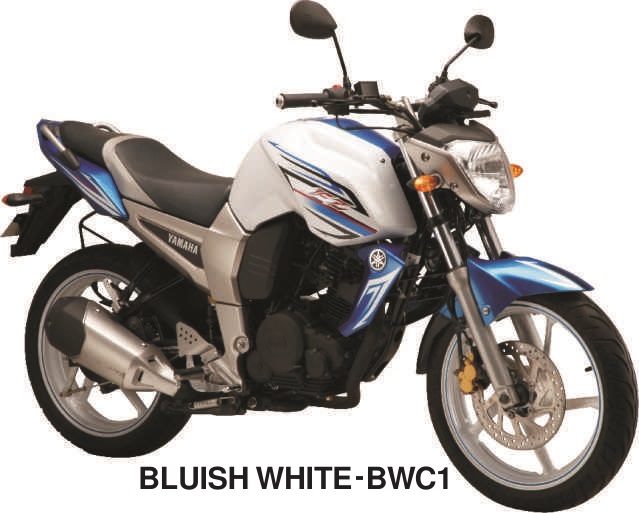

| 1 | 21CXF151605X | FENDER FRONT - BMC | ₹ 702 | 1 | FOR BWC1 | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 9702N0602000 | BOLT FLANGE | ₹ 3 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G0000 | 21CF177G0000 | ₹ 0 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 976070621400 | SCREW WITH WASHER | ₹ 6 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting both the rider plus the machine from the grime of the road is the primary mission of the Yamaha FZ V1 Fender assembly. The Fender Front - Bmc is designed to hug the front wheel plus deflect water plus mud away from the engine cylinders. At the back the Fender Rear provides a long sweep that prevents road spray from reaching the back of the rider during monsoon journeys. This rear unit also serves as the mounting point for the Plate License plus the tail illumination components. Every fender is secured using specialized Bolt Flange plus Bolt Hex. Socket Button for a rigid plus aerodynamic mount. To prevent the plastic from cracking under vibration the assembly includes specialized Dampers plus Grommets. The Seal plus Pad Seat work together to ensure that no moisture enters the storage area under the seat. Using genuine fenders ensures that the fitment is perfect plus the materials are durable enough to withstand debris.
