FRONT WHEEL
0
21C6
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

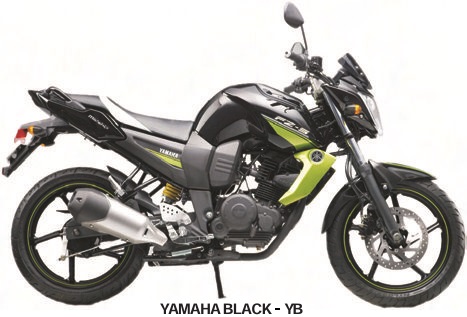

| 1A | 21CF51683133 | CAST WHEEL, FRONT | ₹ 6490 | 1 | FOR YB | |

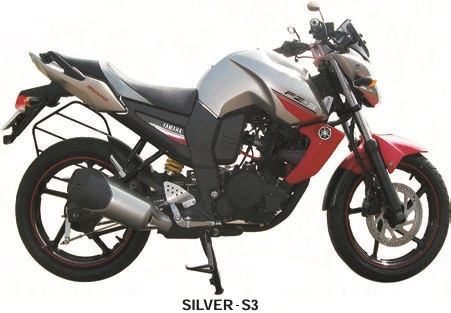

| 1B | 21CF51683133 | CAST WHEEL, FRONT | ₹ 6490 | 1 | FOR S3 | |

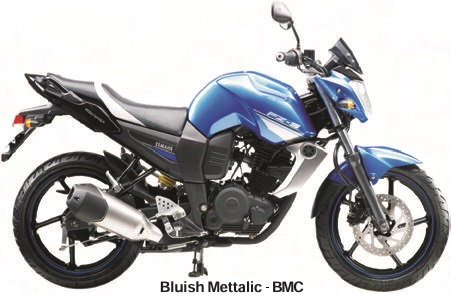

| 1C | 21CXF5167033 | CASTWHEELFRONT-BMC | ₹ 3297 | 1 | FOR BMC | |
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 30 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101780400 | FZ FRONT TIRE- 100/80-17MC52P | ₹ 1850 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | 21CF51830100 | COLLAR, WHEEL | ₹ 28 | 1 | ||
| 8 | 21CF51810000 | AXLE WHEEL | ₹ 165 | 1 | ||
| 9 | 956071420000 | NUT SELF LOCKING | ₹ 337 | 1 | ||
| 10 | 90201142M600 | WASHER PLATE | ₹ 59 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 21C6 FZS V1 Series FRONT WHEEL
