FENDER
21C7
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

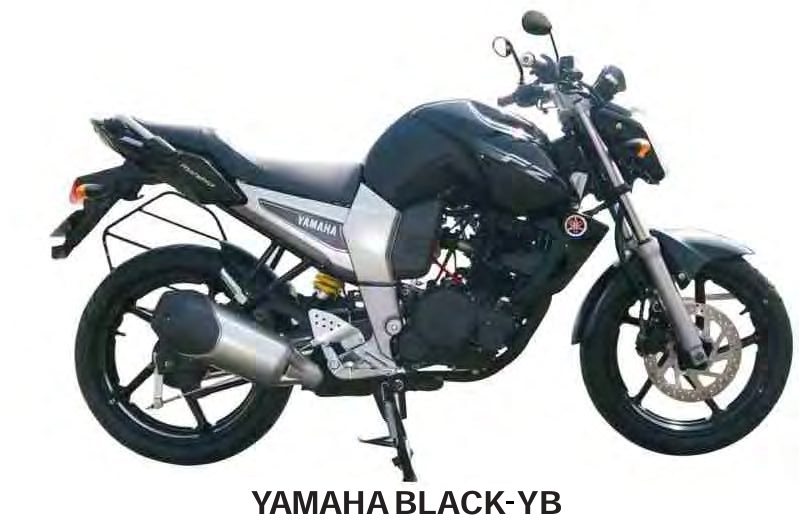

| 1A | 21CF1511000X | FENDER FRONT - YB | ₹ 797 | 1 | FOR YB | |

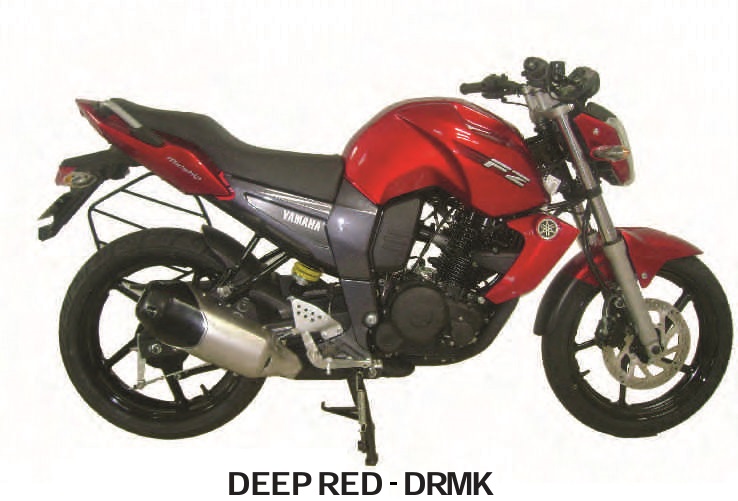

| 1B | 21CF1511001X | FENDER FRONT -DRMK (RED) | ₹ 1166 | 1 | FOR DRMK | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 970220602000 | BOLT | ₹ 15 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G1000 | BOX BATTERY | ₹ 69 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 976020621400 | SCREW PAN HEAD | ₹ 5 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection from road spray plus debris is the primary duty of the fender system on the Yamaha FZ V1. The Fender front is positioned close to the tire to deflect mud, water away from the engine, rider. At the back, the Fender rear shields the tail light, passenger from the spray thrown by the rear wheel. This is especially important during the heavy rains of the Indian monsoon. Every collar, grommet, bolt is designed to provide a stable mounting that resists vibration. The assembly also includes the Box battery, providing a secure housing for the power source. High impact materials ensure the fenders remain durable plus maintain their shape despite constant use. Maintaining these parts is essential for keeping the motorcycle clean, preventing damage to sensitive components. The design complements the aggressive styling of the street fighter, ensuring it looks ready for action in all weather conditions on every single journey.
