FENDER
21CE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

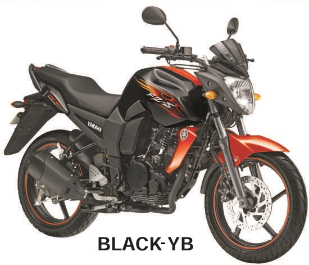

| 1A | 21CF1511002X | FENDER FRONT -YRC2 (ORANGE) | ₹ 788 | 1 | FOR YB | |

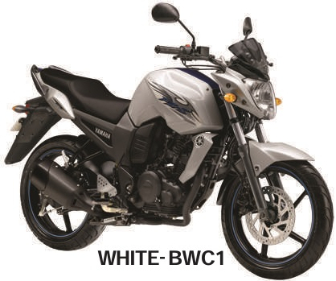

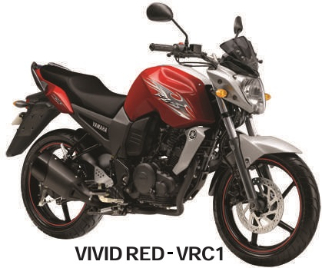

| 1B | 21CF1511008X | FENDER FRONT - BWC1 | ₹ 792 | 1 | FOR VRC1, BWC1 | |

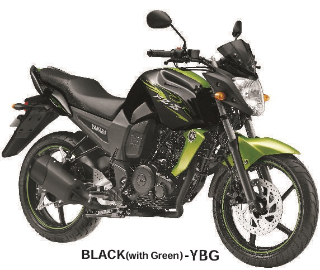

| 1C | 21CF1511007X | FENDER FRONT -LGM6(GREEN COLO | ₹ 1180 | 1 | FOR YBG | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 970220602000 | BOLT | ₹ 15 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G1000 | BOX BATTERY | ₹ 69 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 901590602100 | SCREW WITH WASHER | ₹ 9 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 22 | 21CF16210000 | FLAP | ₹ 142 | 1 | ||
| 23 | 977075001400 | SCREW TAPPING | ₹ 15 | 6 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Shielding your Yamaha FZS V1 from road debris plus water is the job of this professional Fender assembly. The Fender front orange prevents mud plus water from splashing onto the engine plus the rider's legs. The Fender rear provides essential coverage for the back of the motorcycle, including a mount for the Plate license. This kit includes the Box battery, which keeps your power cell secure plus protected. For comfort, a Pad seat is included to support the rider. Every Collar plus Grommet ensures that the plastic fenders are mounted with the right amount of flexibility to resist cracking on bumpy Indian roads. The Flap adds an extra layer of protection for the rear suspension against road spray. Genuine fender parts are designed for a perfect fit plus long-term durability. Maintaining your fenders is crucial for keeping your motorcycle clean plus protecting its mechanical parts. Trust these factory-standard components for the best fit plus protection.
