FENDER
21CG
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

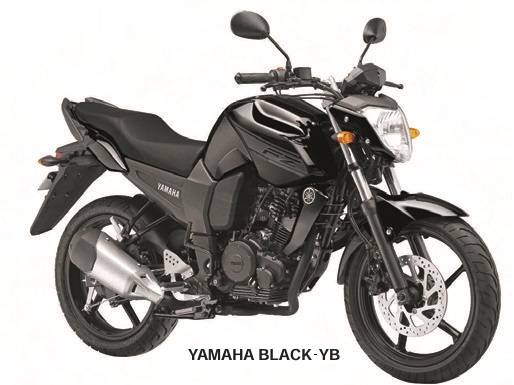

| 1A | 21CF1511000X | FENDER FRONT - YB | ₹ 797 | 1 | FOR YB | |

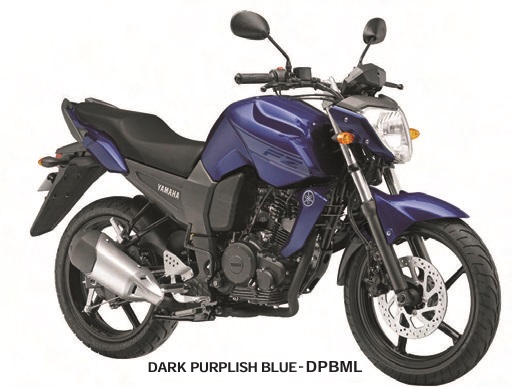

| 1B | 21CF1511000Y | FENDER FRONT -DPBML (PURPLE | ₹ 608 | 1 | FOR DPBML | |

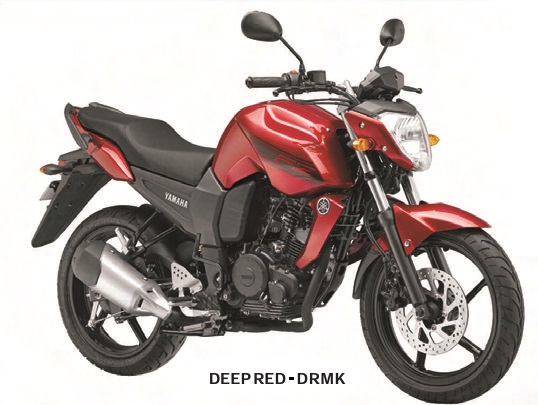

| 1C | 21CF1511001X | FENDER FRONT -DRMK (RED) | ₹ 1166 | 1 | FOR DRMK | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 970220602000 | BOLT | ₹ 15 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G1000 | BOX BATTERY | ₹ 69 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 901590602100 | SCREW WITH WASHER | ₹ 9 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 22 | 21CF16210000 | FLAP | ₹ 142 | 1 | ||
| 23 | 977075001400 | SCREW TAPPING | ₹ 15 | 6 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Defending the mechanical integrity of your machine from the spray of the road is the duty of the fender assembly designed for your Yamaha FZ Vone. This hardware suite features the fender front with a sleek aerodynamic shape plus the fender rear which provides extensive coverage for the rotating tire. Built for the harsh realities of monsoon riding across India these panels use impact resistant materials that resist cracking plus weathering under the sun. The front fender stays perfectly positioned through specialized collar plus grommet sets that isolate the plastic from vibration while the bolt hex socket button provides a secure mount. Integrated into the rear assembly are the cover rear fender plus the box battery which keep essential internal modules clean. Utilizing original factory fenders guarantees that mud or stones do not damage your engine block preserving the longevity plus the aesthetic beauty of your street fighter during every season of riding on the country roads.
