HEAD LIGHT
21CH
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CH43001000 | HEADLIGHT ASSY | ₹ 1222 | 1 | ||
| 2 | 5TSH43140000 | BULB(12V-35W/35W-HALOGEN) | ₹ 150 | 1 | ||
| 3 | 21CH43470000 | BULB (12V-5W ) | ₹ 41 | 1 | ||
| 4 | 21CH45020000 | COVER COMP. | ₹ 41 | 1 | ||
| 5 | 21CH43120000 | HOLDER CORD ASSY | ₹ 42 | 1 | ||
| 6 | 904801410100 | GROMMET | ₹ 10 | 2 | ||
| 7 | 90387068D400 | COLLAR | ₹ 7 | 2 | ||
| 8 | 958020602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 9 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 1 | ||
| 10 | 21CF31211033 | COVER UPPER 1-YB-21C2 | ₹ 145 | 1 | ||
| 11 | 977074001400 | SCREW, TAPPING | ₹ 3 | 3 | ||

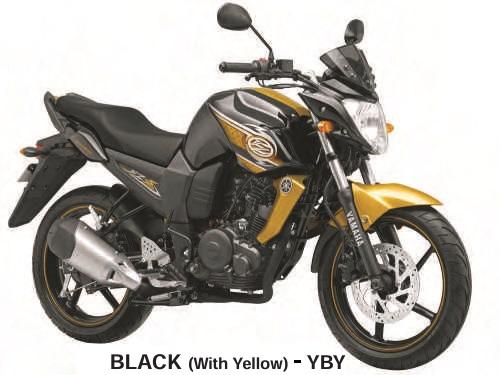

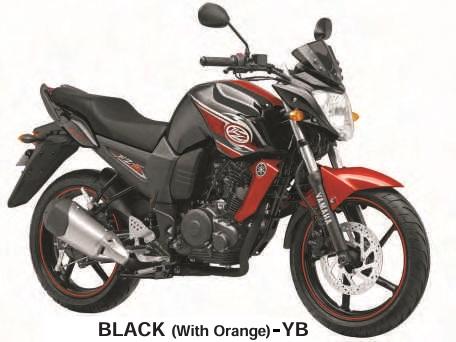

| 12A | 21CF31221033 | COVER OUTER 1-YB-21C2 | ₹ 188 | 1 | FOR YB,FOR YBY | |

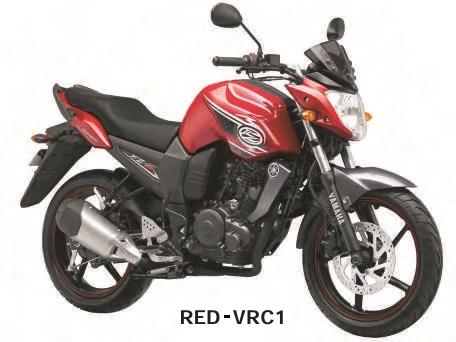

| 12B | 21CF312210P0 | COVER OUTER 1 -VRC1(VIVID RE | ₹ 194 | 1 | FOR VRC1 | |

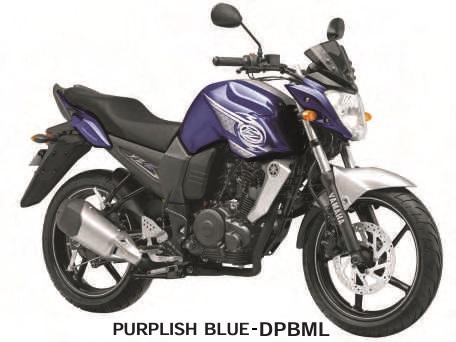

| 12C | 21CF312210P6 | COVER OUTER 1-DPBML | ₹ 194 | 1 | FOR DPBML | |
| 13A | 21CF31321033 | COVER OUTER 2- YB-21C2 | ₹ 147 | 1 | FOR YB,FOR YBY | |
| 13B | 21CF313210P0 | COVER OUTER 2 -VRC1(VIVID RE | ₹ 194 | 1 | FOR VRC1 | |
| 13C | 21CF313210P6 | COVER OUTER 2 -DPBML (PURPLE | ₹ 194 | 1 | FOR DPBML | |
| 14 | 21CH45271000 | DAMPER | ₹ 6 | 2 | ||
| 15 | 901110683000 | BOLT HEX. SOCKET BUTTON | ₹ 56 | 2 | ||
| 16 | 901110682900 | BOLT HEX. SOCKET BUTTON | ₹ 53 | 2 | ||
| 17 | 90387068E800 | COLLAR | ₹ 11 | 2 | ||
| 18 | 901830682100 | NUT SPRING | ₹ 23 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Piercing through the darkness requires the advanced headlight assembly of the Yamaha FZS V1 providing the vision needed for safe night travel. The optical unit creates a wide and consistent beam pattern that illuminates the unpredictable Indian road surfaces with ease. Supporting this optical system is the robust Stay headlight which ensures the unit remains perfectly aligned even on bumpy terrains. The distinctive aesthetic is enhanced by the Cover comp which adds a muscular presence to the front of the motorcycle. Every Grommet and Collar within this assembly is engineered to dampen engine vibrations and protect the sensitive electrical connections from damage. The Holder cord assy routes power efficiently to the lamp for constant road visibility. Investing in authentic headlight components preserves the look of your machine while prioritizing the safety of the rider. Every Nut spring and Bolt within this kit ensures a secure fit.
