FENDER
21CK
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

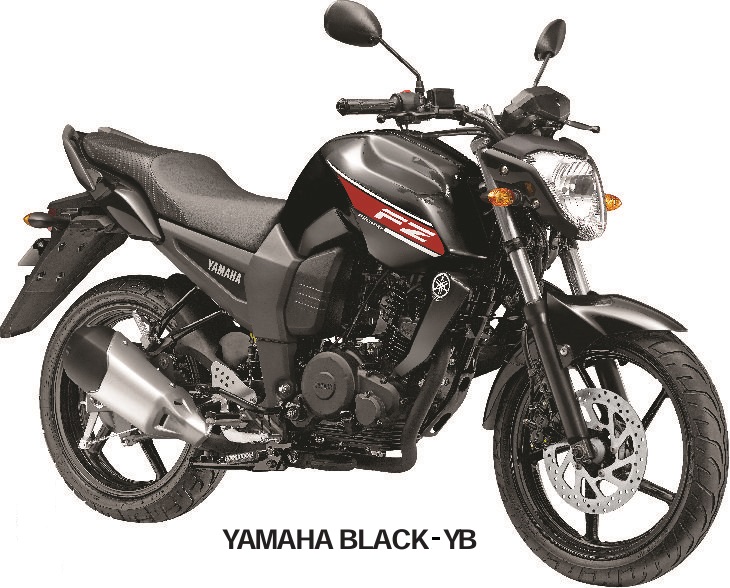

| 1A | 21CF1511000X | FENDER FRONT - YB | ₹ 797 | 1 | FOR YB | |

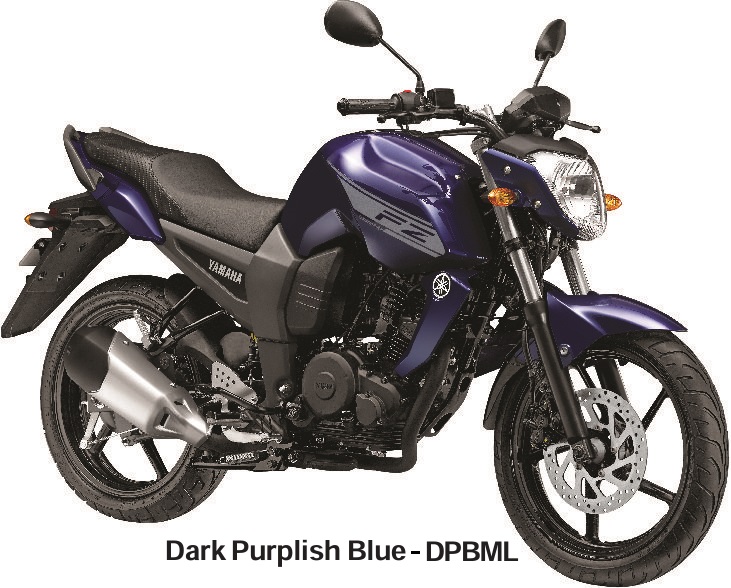

| 1B | 21CF1511000Y | FENDER FRONT -DPBML (PURPLE | ₹ 608 | 1 | FOR DPBML | |

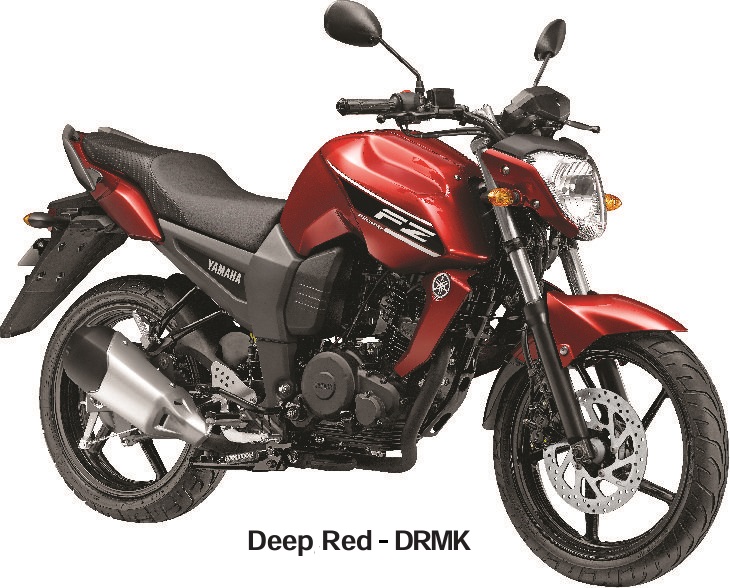

| 1C | 21CF1511001X | FENDER FRONT -DRMK (RED) | ₹ 1166 | 1 | FOR DRMK | |
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 9700N0602500 | BOLT | ₹ 4 | 2 | ||
| 5 | 902010672600 | WASHER PLATE | ₹ 6 | 2 | ||
| 6 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 7 | 21CF16110100 | FENDER REAR | ₹ 483 | 1 | ||
| 8 | 21CF16510000 | COVER REAR FENDER | ₹ 48 | 1 | ||
| 9 | 970120601400 | BOLT | ₹ 5 | 4 | ||
| 10 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 11 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 12 | 21CF177G1000 | BOX BATTERY | ₹ 69 | 1 | ||
| 13 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 14 | 4LSF47410000 | PAD SEAT | ₹ 8 | 1 | ||
| 15 | 901190611700 | BOLT WITH WASHER | ₹ 23 | 2 | ||
| 16 | 21CF16690000 | SEAL | ₹ 35 | 2 | ||
| 17 | 21CF16A20000 | SEAL 2 | ₹ 14 | 1 | ||
| 18 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 19 | 901590602100 | SCREW WITH WASHER | ₹ 9 | 2 | ||
| 20 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 21 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 22 | 21CF16210000 | FLAP | ₹ 142 | 1 | ||
| 23 | 977075001400 | SCREW TAPPING | ₹ 15 | 6 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Staying dry plus protected on every ride is made possible by the durable fender assembly of the Yamaha FZ V1. This hardware collection includes the front plus rear fenders; designed specifically to manage road spray during the heavy monsoons of India. Each fender is crafted from an impact resistant material that remains flexible plus tough across various temperatures. The front fender offers a sleek profile for high speed stability; while the rear fender includes a protective cover plus license plate stay for extensive coverage. Fitment is secured with vibration isolating grommet units plus specialized bolts for a silent experience. Also included in this assembly is the battery box along with various dampers to keep internals secure. Every bolt flange plus nut is manufactured to resist corrosion; ensuring the panels stay firmly attached over time. By installing genuine factory fenders; you preserve the clean aesthetic plus mechanical health of your machine; keeping it protected from the elements every single day.
