SIDE COVER
0
2FB1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1CKF17110000 | COVER, SIDE 1 | ₹ 245 | 1 | ||
| 2 | 1CKF17210000 | COVER, SIDE 2 | ₹ 200 | 1 | ||
| 3 | 901590618100 | SCREW, WITH WASHER | ₹ 19 | 2 | ||
| 4 | 904800155800 | GROMMET | ₹ 10 | 4 | ||
| 5 | 902690681400 | RIVET | ₹ 8 | 4 | ||
| 6 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 7 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 4 | ||
| 8 | 2FBF18710000 | TANK RECOVERY | ₹ 110 | 1 | ||
| 9 | 901090618300 | BOLT | ₹ 16 | 2 | ||
| 10 | 20PF18750000 | CAP | ₹ 28 | 1 | ||
| 11 | 20PF18280000 | ELBOW | ₹ 3 | 1 | ||
| 12 | 904450883100 | HOSE | ₹ 28 | 1 | ||
| 13 | 904450883200 | HOSE | ₹ 17 | 1 | ||
| 14 | 904670800300 | CLIP OIL PIPE | ₹ 8 | 3 | ||
| 15 | 20PF18230000 | CLAMP HOSE | ₹ 23 | 1 | ||
| 16A | 2FBXF17300P5 | COVER, SIDE 3-SMX(BLK) WITH GR | ₹ 704 | 1 | FOR DBNM8 | |
| 16B | 2FBXF17310P5 | COVER, SIDE 3-SMX(BLK) WITH RE | ₹ 704 | 1 | FOR VRC1 | |
| 17A | 2FBXF17400P5 | COVER, SIDE 4-SMX(BLK) WITH GR | ₹ 704 | 1 | FOR DBNM8 | |
| 17B | 2FBXF17410P5 | COVER, SIDE 4-SMX(BLK ) WITH R | ₹ 704 | 1 | FOR VRC1 | |
| 18 | 901590618100 | SCREW, WITH WASHER | ₹ 19 | 2 | ||
| 19 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 21A | 1CKXF17C10P1 | COVER, SIDE 5-DBNM8(GREY) | ₹ 235 | 1 | FOR DBNM8 | |
| 21B | 1CKXF17C10P3 | COVER, SIDE 5-VRC1(VIVID RED) | ₹ 237 | 1 | FOR VRC1 | |
| 22 | 20PF836B0000 | TUNING FORK MARK | ₹ 23 | 1 | ||
| 23 | 901590618100 | SCREW, WITH WASHER | ₹ 19 | 2 | ||
| 24A | 1CKF171X00P1 | COVER, SIDE 6 - DBNM8 | ₹ 182 | 1 | FOR DBNM8 | |
| 24B | 1CKF171X00P3 | COVER, SIDE 6 -VRC1 | ₹ 182 | 1 | FOR VRC1 | |
| 25 | 905200880100 | DAMPER PLATE | ₹ 9 | 1 | ||
| 26 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

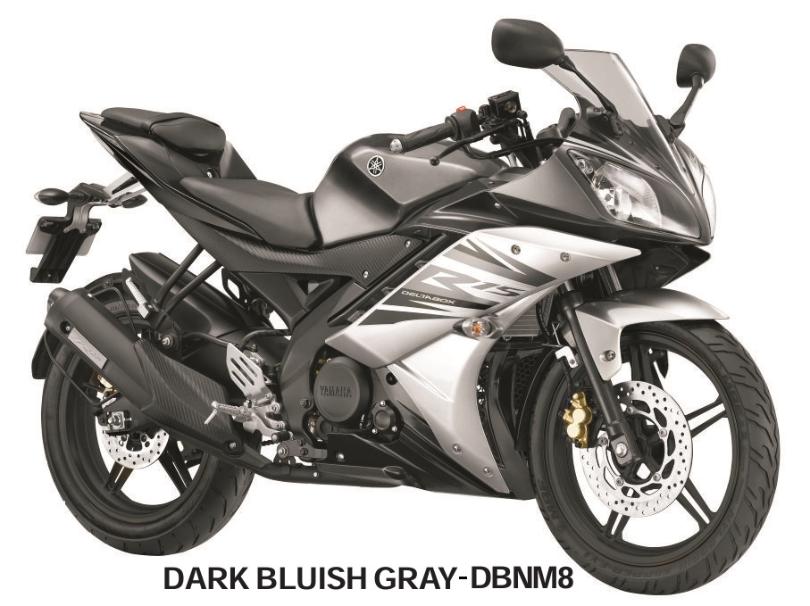

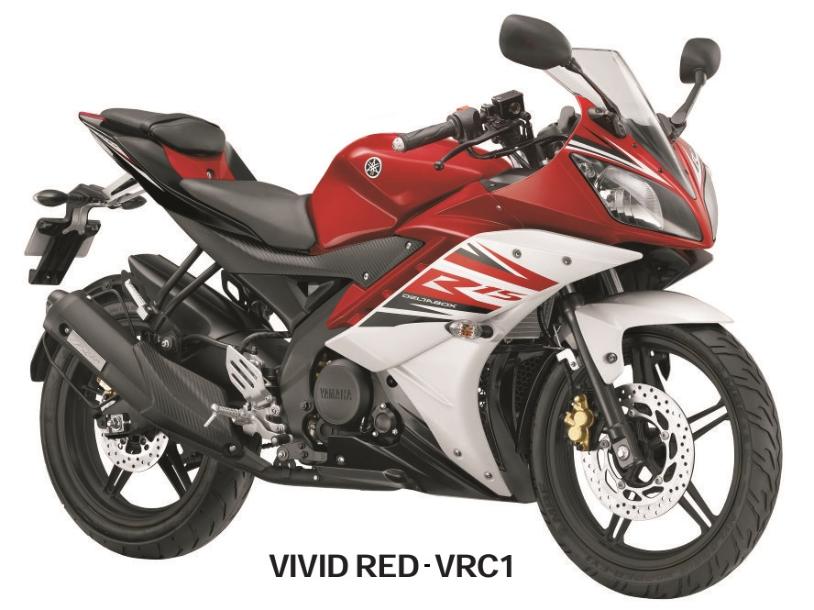

Description: - YAMAHA 2FB1 R15 V2 Series SIDE COVER
