WINDSHIELD
0
2FB2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1CKF83810000 | WINDSHIELD | ₹ 340 | 1 | ||
| 2 | 20PF836R0000 | PANEL, INNER 5 | ₹ 25 | 1 | ||
| 3 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 4 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 5 | 905200281000 | DAMPER PLATE | ₹ 6 | 2 | ||
| 6 | 2FBXF83520P5 | PANEL ASSY-BWC1(WHITE) | ₹ 1227 | 1 | FOR BWC1 | |
| 7 | 90183050A700 | NUT SPRING | ₹ 22 | 8 | ||
| 8 | 904642081500 | CLAMP | ₹ 19 | 1 | ||
| 9 | 904640580200 | CLAMP | ₹ 13 | 1 | ||
| 10 | 2FBF83560000 | STAY 1 | ₹ 550 | 1 | ||
| 11 | 901110883600 | BOLT,HEX. SOCKET BUTTON | ₹ 24 | 2 | ||
| 12 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 13 | 2PBF62800100 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 394 | 1 | ||
| 14 | 2PBF62900100 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 394 | 1 | ||
| 15 | 20PF84830000 | PLATE RUBBER 1 | ₹ 9 | 2 | ||
| 16 | 20PF84840000 | PLATE RUBBER 2 | ₹ 10 | 2 | ||
| 17 | 913170602500 | BOLT | ₹ 11 | 4 | ||
| 18 | 90387068C200 | COLLAR | ₹ 8 | 4 | ||
| 19 | 20PF16850000 | BRACKET LICENSE | ₹ 74 | 1 | ||
| 20 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 21 | 1CKXF11E30P3 | COVER 7 -BWC1 | ₹ 2179 | 1 | FOR BWC1 | |
| 22 | 1CKXF11F30P3 | COVER 8 -BWC1 | ₹ 2179 | 1 | FOR BWC1 | |
| 23 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 24 | 90387068C200 | COLLAR | ₹ 8 | 2 | ||
| 25 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 26 | 902020518000 | WASHER PLATE | ₹ 28 | 2 | ||
| 27 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 28 | 2FBXF83620P0 | PANEL COMP 1-DPBMY( BLUE) | ₹ 1331 | 1 | FOR BWC1 | |
| 29 | 2FBXF83G20P0 | PANEL COMP 2-DPBMY( BLUE) | ₹ 1386 | 1 | FOR BWC1 | |
| 30 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 6 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 9 | 12 | ||
| 32 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 4 | ||
| 33 | 902020518000 | WASHER PLATE | ₹ 28 | 4 | ||
| 34 | 20PF837L0000 | PANEL, CONSOLE 1 | ₹ 70 | 1 | ||
| 35 | 20PF837M0000 | PANEL, CONSOLE 2 | ₹ 70 | 1 | ||
| 36 | 901110500200 | BOLT,HEX. SOCKET BUTTON | ₹ 18 | 6 | ||
| 37 | 90387068C400 | COLLAR | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

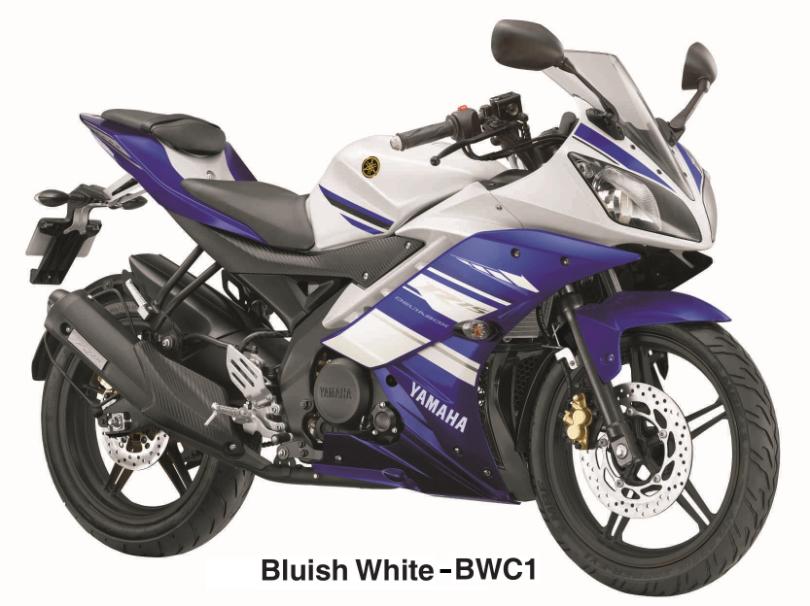

Description: - YAMAHA 2FB2 R15 V2 Series WINDSHIELD
