FENDER
2FB4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1CKF1511001X | FENDER FRONT -DPBMY(BLUE) | ₹ 709 | 1 | FOR DPBMY | |
| 2 | 90387068C800 | COLLAR | ₹ 16 | 2 | ||
| 3 | 904801280500 | GROMMET | ₹ 8 | 2 | ||
| 4 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 5 | 904801885900 | GROMMET | ₹ 6 | 2 | ||
| 6 | 901190623300 | BOLT, WITH WASHER | ₹ 21 | 2 | ||
| 7 | 1CKF16110000 | FENDER REAR | ₹ 244 | 1 | ||
| 8 | 901090688700 | BOLT | ₹ 19 | 2 | ||
| 9 | 21CF16810000 | PLATE LICENSE | ₹ 41 | 1 | ||
| 10 | 976070621400 | SCREW WITH WASHER | ₹ 6 | 2 | ||
| 11 | 9530N0660000 | NUT | ₹ 1 | 2 | ||
| 12 | 902010607800 | WASHER PLATE | ₹ 10 | 2 | ||
| 13 | 1CKF16400000 | REAR STAY COMP. | ₹ 531 | 1 | ||
| 14 | 1CKF16290000 | GUARD MUD | ₹ 54 | 1 | ||
| 15 | 977025001600 | SCREW TAPPING | ₹ 10 | 3 | ||
| 16 | 90387068G000 | COLLAR | ₹ 7 | 4 | ||
| 17 | 956020620000 | NUT, SELF-LOCKING | ₹ 0 | 4 | ||
| 18 | 1CKF160E0000 | BOX | ₹ 317 | 1 | ||
| 19 | 904802548200 | GROMMET | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

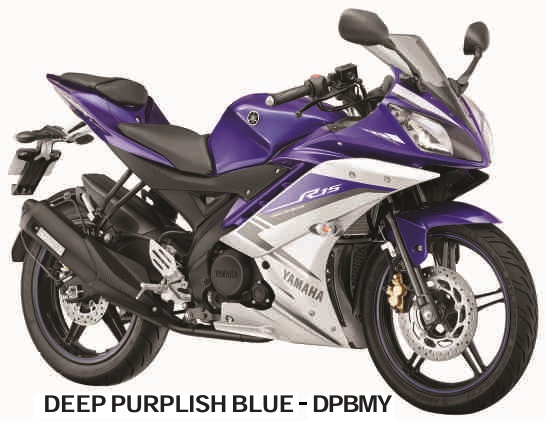

Description: - Maintain the clean lines plus protect your Yamaha R15 V2 from the elements with the complete Fender assembly. This set of genuine parts is essential for preventing road spray plus debris from coating both the rider plus the motorcycle's critical components. The assembly is highlighted by the aerodynamically styled Fender Front, which closely follows the curve of the wheel for a sporty look plus effective protection. It also includes the robust Fender Rear plus Guard Mud, crucial components that shield the rear shock absorber plus under-seat electronics from grime kicked up by the back tire. The kit comes with all the necessary mounting hardware, including the Plate License bracket, collars plus grommets, to ensure a perfect, factory-quality installation. By opting for this authentic Yamaha assembly, you preserve the original design plus keep your bike cleaner.
