FENDER
0
2GS2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

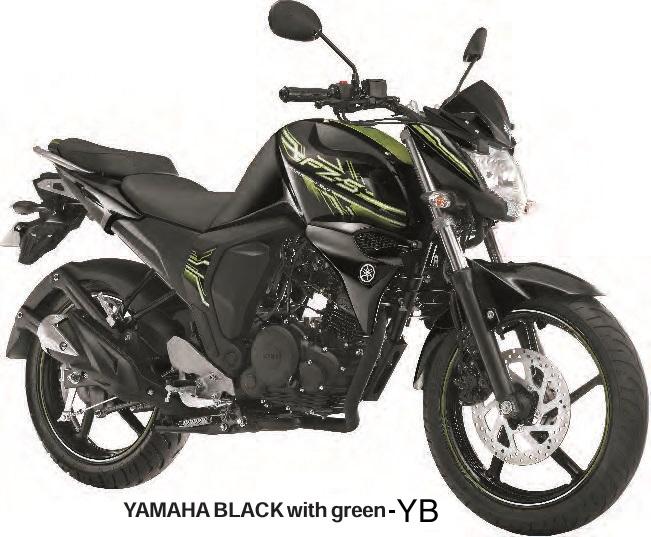

| 1A | 21CF15110033 | FENDER, FRONT-BLACK | ₹ 660 | 1 | FOR YB | |

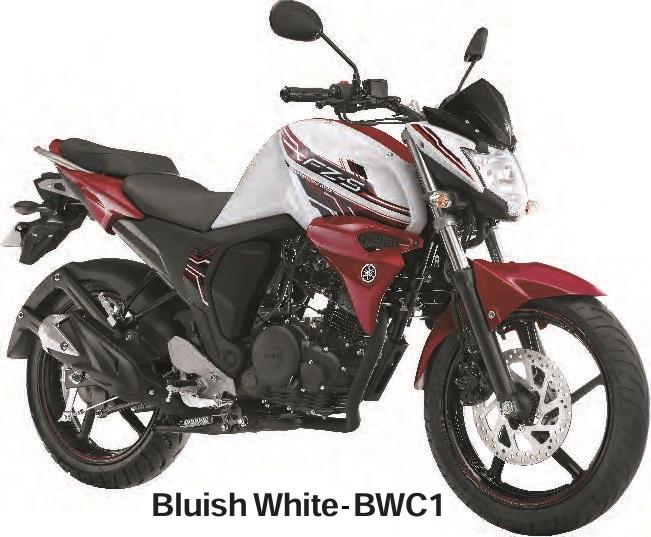

| 1B | 21CF151100P2 | FENDER FRONT- VRC1 (RED) | ₹ 660 | 1 | FOR BWC1 | |

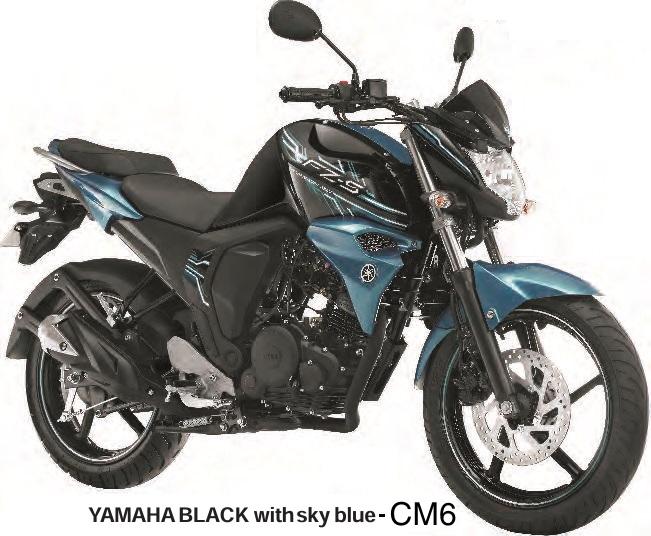

| 1C | 21CF151100P3 | FENDER FRONT -CM6(CYAN METAL | ₹ 660 | 1 | FOR CM6 | |

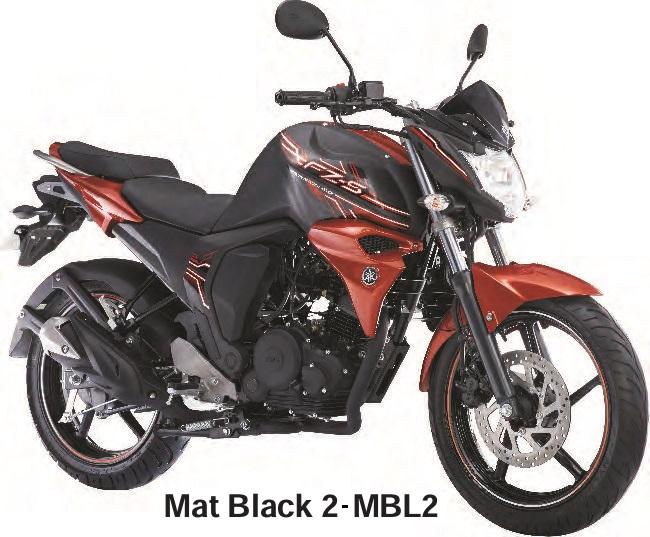

| 1D | 21CF151100P4 | FENDER, FRONT - YRC2 (RED) | ₹ 660 | 1 | FOR MBL2 | |
| 2 | 90387068C500 | COLLAR | ₹ 9 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 5 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 6 | 2GSF16110000 | FENDER REAR | ₹ 225 | 1 | ||
| 7 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 8 | 903870604800 | COLLAR | ₹ 8 | 2 | ||
| 9 | 958270801600 | BOLT FLANGE | ₹ 10 | 4 | ||
| 10 | 903870807900 | COLLAR | ₹ 88 | 4 | ||
| 11 | 1PMF811G0000 | BAND | ₹ 10 | 1 | ||
| 12 | 2GSF16130000 | STAY FENDER 1 | ₹ 65 | 1 | ||
| 13 | 2GSF16140000 | STAY FENDER 2 | ₹ 55 | 1 | ||
| 14 | 2GSF16510000 | COVER REAR FENDER | ₹ 162 | 1 | ||
| 15 | 2GSF163A0000 | COVER 1 | ₹ 60 | 1 | ||
| 16 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 17 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 18 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 19 | 903870604800 | COLLAR | ₹ 8 | 2 | ||
| 20 | 21CF81003000 | TOOL SET | ₹ 85 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2GS2 FZS V2 Series FENDER
