FRONT WHEEL
2GS2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CF51683133 | CAST WHEEL, FRONT | ₹ 5982 | 1 | ||
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4A | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 4B | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | 21CF51830100 | COLLAR WHEEL | ₹ 25 | 1 | ||
| 8 | 2GSF51810000 | AXLE WHEEL | ₹ 175 | 1 | ||
| 9 | 901711480000 | NUT CASTLE | ₹ 60 | 1 | ||
| 10 | 902525580000 | SPLIT COTTER PIN | ₹ 2 | 1 | ||
| 11 | 929071420000 | WASHER | ₹ 8 | 1 | ||

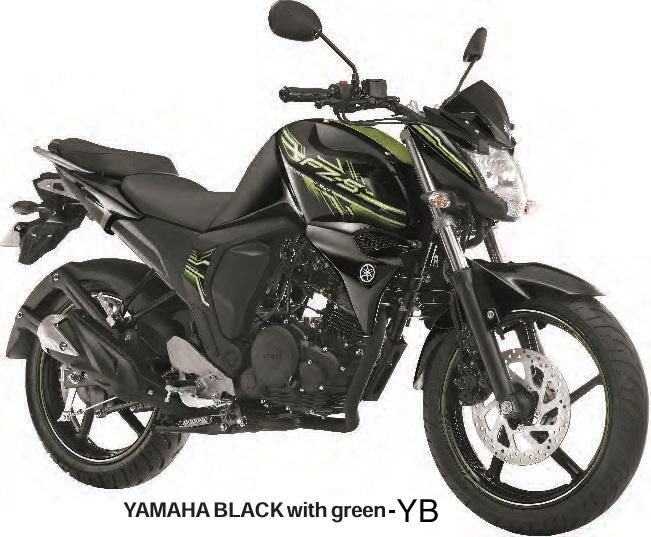

| 12A | 2GSF531B0000 | EMBLEM WHEEL -WHITE/GREEN | ₹ 80 | 2 | FOR YB | |

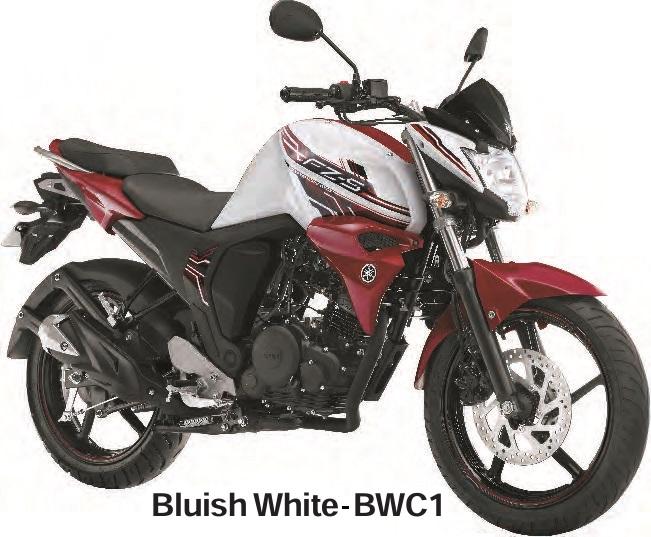

| 12B | 2GSF531B6000 | EMBLEM WHEEL-YB/VRC1(BLACK/VI | ₹ 80 | 2 | FOR BWC1 | |

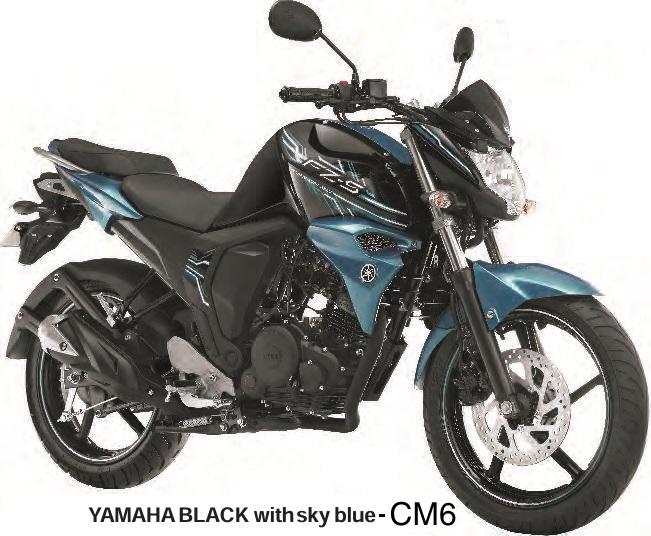

| 12C | 2GSF531B2000 | EMBLEM WHEEL -WHITE/SKY BLUE | ₹ 80 | 2 | FOR CM6 | |

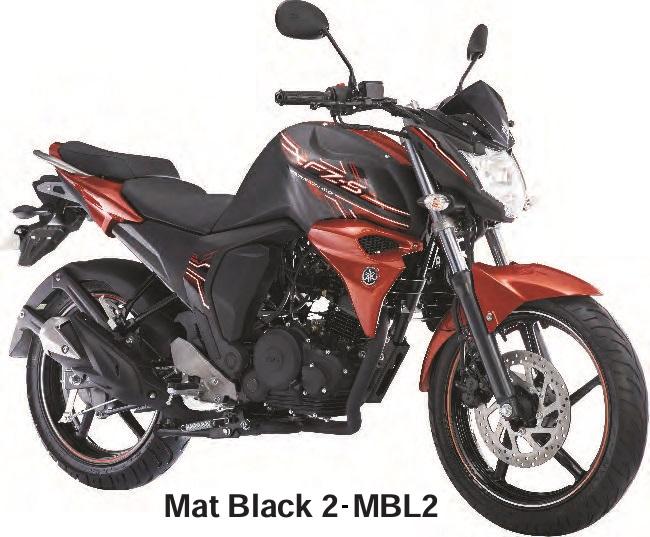

| 12D | 2GSF531B3000 | EMBLEM WHEEL WHITE/ORANGE | ₹ 80 | 2 | FOR MBL2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The steering agility plus directional stability of your Yamaha FZS V2 depend on the integrity of the Front Wheel assembly. The Cast Wheel Front is manufactured to be lightweight yet robust enough to handle the impacts of city potholes. Rotating on precision Bearings plus sealed with a high grade Oil Seal, the wheel provides an effortless plus smooth rolling experience. For the ultimate grip, the MRF Tire is designed to channel water away plus maintain a solid contact patch on Indian roads. Every Axle Wheel plus Nut Castle ensures that the front end remains perfectly aligned for a vibration free ride. Using genuine wheel components is essential for maintaining the light plus responsive handling characteristics that define the machine. Details like the Emblem Wheel add a personalized touch to your ride appearance. Trust in authentic parts for a safe plus comfortable journey through every turn you take across the country.
