SIDE COVER
0
2GS3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2GSF17110000 | COVER SIDE 1 | ₹ 180 | 1 | ||
| 2 | 2GSWF17G40P1 | PANEL ASSY 1-MAT BLACK 2 | ₹ 410 | 1 | FOR MBL2 | |
| 3 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 4 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 5 | 2GSF17210000 | COVER SIDE 2 | ₹ 215 | 1 | ||
| 6 | 2GSWF17H40P1 | PANEL ASSY 2-MAT BLACK 2 | ₹ 410 | 1 | FOR MBL2 | |
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 9 | 21CF17170000 | DAMPER | ₹ 2 | 2 | ||
| 10 | 2GSXF17300P4 | COVER SIDE 3 -MAT BLACK2 | ₹ 490 | 1 | FOR MBL2 | |
| 11 | 2GSXF17400P4 | COVER SIDE 4 -MAT BLACK2 | ₹ 490 | 1 | FOR MBL2 | |
| 12 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 13 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 14 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 15 | 2GSXF17C00V9 | COVER SIDE 5 -NHG(SPARKLE GRE | ₹ 290 | 1 | FOR MBL2 | |
| 16 | 5TSF836B0200 | TUNING FORK MARK | ₹ 23 | 1 | ||
| 17 | 902690681400 | RIVET | ₹ 8 | 2 | ||
| 18 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 4 | ||
| 19 | 985070601400 | SCREW PAN HEAD | ₹ 9 | 2 | ||
| 20 | 902010605500 | WASHER PLATE | ₹ 3 | 2 | ||
| 21 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 22 | 2GSF171L0000 | MOLE SIDE COVER 1 | ₹ 25 | 1 | ||
| 23 | 2GSF171M0000 | MOLE SIDE COVER 2 | ₹ 25 | 1 | ||
| 24 | 901830506700 | NUT SPRING | ₹ 8 | 2 | ||
| 25 | 2GSF17320000 | SEAL 1 | ₹ 2 | 1 | ||
| 26 | 2GSF17350000 | SEAL 2 | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

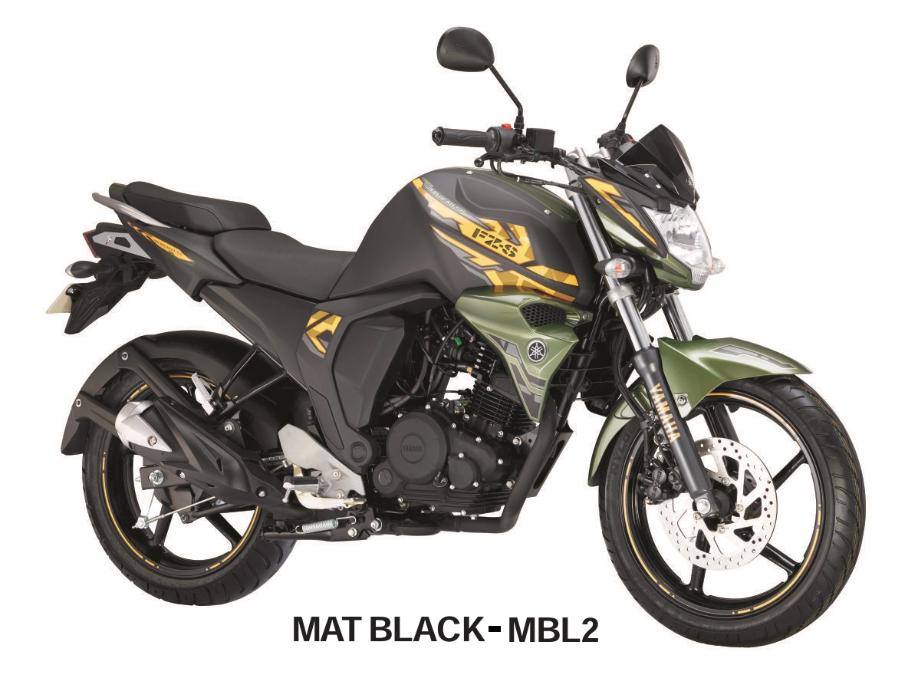

Description: - YAMAHA 2GS3 FZS V2 Series SIDE COVER
