FRONT WHEEL
2GSB
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CF51683133 | CAST WHEEL, FRONT | ₹ 5982 | 1 | ||
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4A | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 4B | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5A | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 5B | 941101782400 | TIRE | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | 21CF51830100 | COLLAR WHEEL | ₹ 25 | 1 | ||
| 8 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 9 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 10 | 929071420000 | WASHER | ₹ 8 | 1 | ||

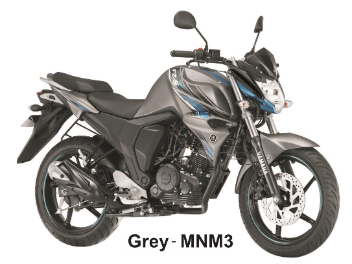

| 11A | 2GSF531B7000 | EMBLEM WHEEL-CM6/YB(CYAN/BLAC | ₹ 80 | 2 | FOR MNM3 | |

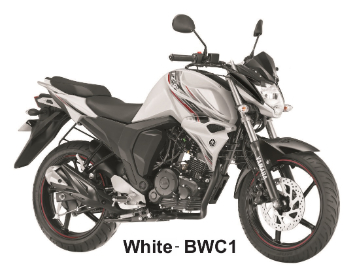

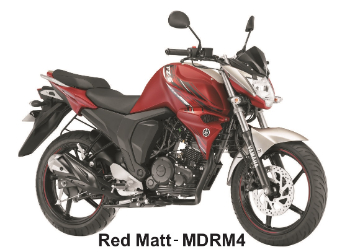

| 11B | 2GSF531B6000 | EMBLEM WHEEL-YB/VRC1(BLACK/VI | ₹ 80 | 2 | FOR BWC1,MDRM4 | |

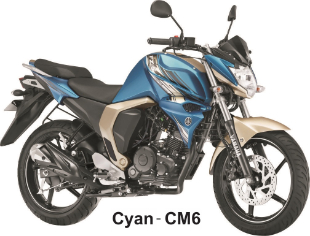

| 11C | 2GSF531B9000 | EMBLEM WHEEL-BWC1/YB(WHITE/BL | ₹ 80 | 2 | FOR CM6 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Rolling forward with stability plus agility, the front wheel assembly of the Yamaha FZS V2 is a masterpiece of functional engineering. The Cast Wheel Front is designed to be lightweight to enhance steering response while being strong enough to withstand city potholes plus rough rural roads. Wrapped in a high-grip tire, this assembly provides the traction needed for confident cornering plus braking in all weather conditions. The Axle Wheel provides the straight plus true pivot for the front end, supported by high-quality bearings plus an Oil Seal to minimize rolling resistance plus maximize fuel efficiency. Every collar plus washer is designed for a perfect fit, ensuring the wheel remains perfectly aligned within the forks. A secure Nut Self-Locking keeps the assembly tight regardless of constant road vibrations. Maintaining your front wheel with genuine Yamaha FZS V2 parts is essential for preserving the sharp handling plus high-speed stability that this motorcycle is legendary for in the Indian market.
