FENDER
2GSE
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

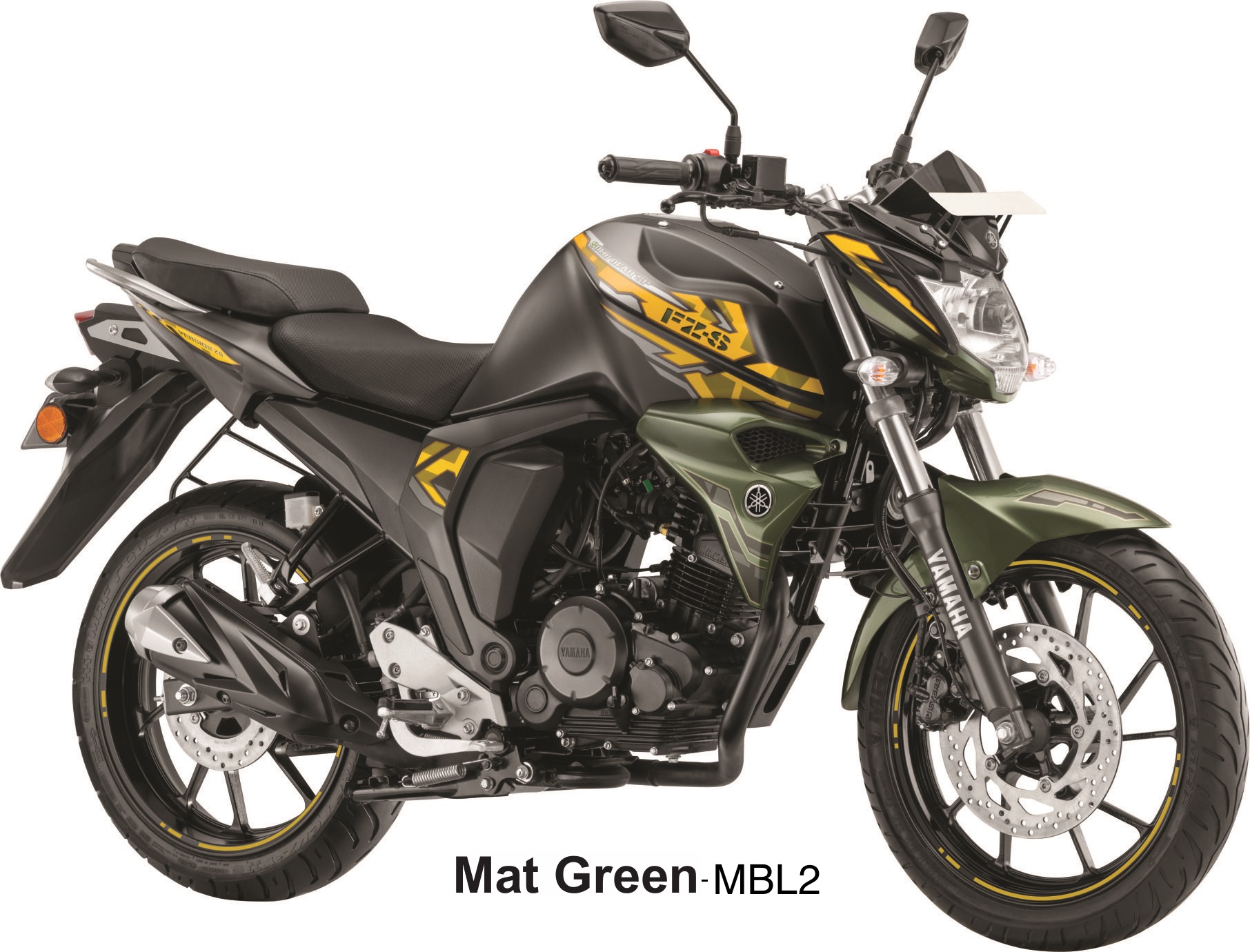

| 1 | 21CXF15A00V9 | FENDER FRONT -NHG(SPARKLE GRE | ₹ 932 | 1 | FOR MBL2 | |
| 2 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 3 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 4 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 5 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 6 | 2GSF16111000 | FENDER REAR | ₹ 207 | 1 | ||
| 7 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 8 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 9 | 90105068C600 | BOLT, FLANGE | ₹ 0 | 4 | ||
| 10 | 903870807900 | COLLAR | ₹ 81 | 4 | ||
| 11 | 4UUF811G0000 | BAND ASSY | ₹ 11 | 1 | ||
| 12 | 2GSF16131000 | STAY FENDER 1 | ₹ 156 | 1 | ||
| 13 | 2GSF16141000 | STAY FENDER 2 | ₹ 156 | 1 | ||
| 14 | 2GSF16511000 | COVER REAR FENDER | ₹ 193 | 1 | ||
| 15 | 2GSF163A0000 | COVER 1 | ₹ 55 | 1 | ||
| 16 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 17 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 18 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 19 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 20 | 2GSF81000000 | TOOL SET | ₹ 85 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection from road spray plus debris is the primary mission of the fender assembly on your Yamaha FZS V2, keeping both the machine plus the rider clean. The Fender Front is shaped to catch water plus mud before they can be thrown onto the engine or the rider's legs, while the Fender Rear provides a mounting point for the license plate plus shielding for the tail section. These components are made from durable materials designed to resist cracking plus fading from exposure to the harsh sun. Secured with specialized collars plus bolts, they offer a secure fit that stays quiet even on the roughest roads. The Cover Rear Fender adds an extra layer of protection plus stylistic flair to the back of the bike. Every grommet plus stay is designed to dampen vibrations plus prevent the plastic from rubbing against the metal frame. By choosing genuine Yamaha FZS V2 fender parts, you ensure your motorcycle remains clean, protected, plus visually striking on every single journey.
