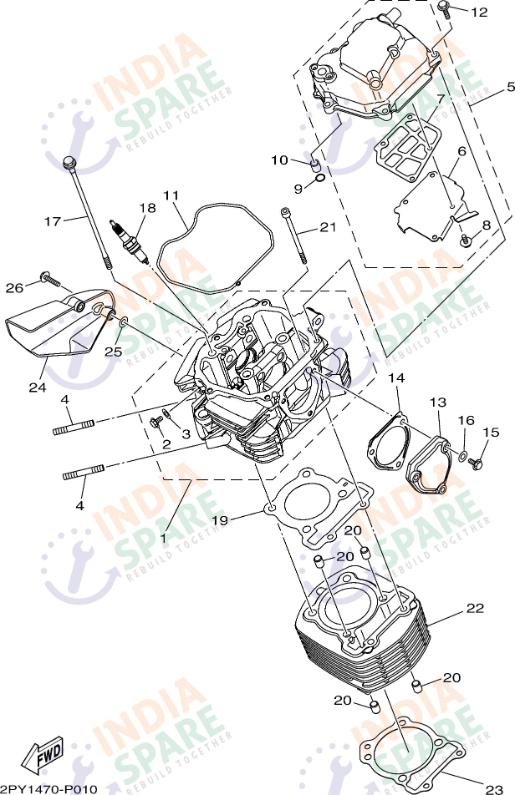

CYLINDER
2PY1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2PYE11110000 | HEAD CYLINDER 1 | ₹ 3258 | 1 | ||
| 2 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 3 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 4 | 956120862000 | BOLT STUD | ₹ 12 | 2 | ||
| 5 | 2PYE11900100 | COVER CYLINDER HEAD 1 | ₹ 419 | 1 | ||
| 6 | 2GSE11650000 | PLATE BREATHER | ₹ 14 | 1 | ||
| 7 | 21CE11691000 | GASKET BREATHER COVER | ₹ 10 | 1 | ||
| 8 | 901490580700 | SCREW | ₹ 2 | 4 | ||
| 9 | 932101280000 | O-RING | ₹ 5 | 1 | ||
| 10 | 936121625400 | PIN DOWEL | ₹ 18 | 1 | ||
| 11 | 2GSE11930000 | GASKET HEAD COVER 1 | ₹ 75 | 1 | ||
| 12 | 950220602500 | BOLT FLANGE | ₹ 11 | 5 | ||
| 13 | 2GSE11860000 | COVER CYLINDER HEAD SIDE | ₹ 87 | 1 | ||
| 14 | 21CE24351100 | GASKET | ₹ 22 | 1 | ||
| 15 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 16 | 904300681700 | GASKET | ₹ 8 | 3 | ||
| 17 | 2GSE13610000 | BOLT CYLINDER HOLDING 1 | ₹ 195 | 4 | ||
| 18 | 947030088500 | SPARK PLUG | ₹ 190 | 1 | ||
| 19 | 2GSE11810100 | GASKET CYLINDER HEAD 1 | ₹ 69 | 1 | ||
| 20 | 918101480400 | PIN DOWEL | ₹ 7 | 4 | ||
| 21 | 901100630400 | BOLT HEXAGON SOCKET HEAD | ₹ 46 | 2 | ||
| 22 | 2GSE13100000 | CYLINDER 1 | ₹ 0 | 1 | ||
| 23 | 21CE13511000 | GASKET CYLINDER | ₹ 85 | 1 | ||
| 24 | 2PYE26610000 | DUCT | ₹ 93 | 1 | ||
| 25 | 902010582000 | WASHER PLATE | ₹ 12 | 2 | ||
| 26 | 901100625600 | BOLT, HEXAGON SOCKET HEAD | ₹ 42 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
