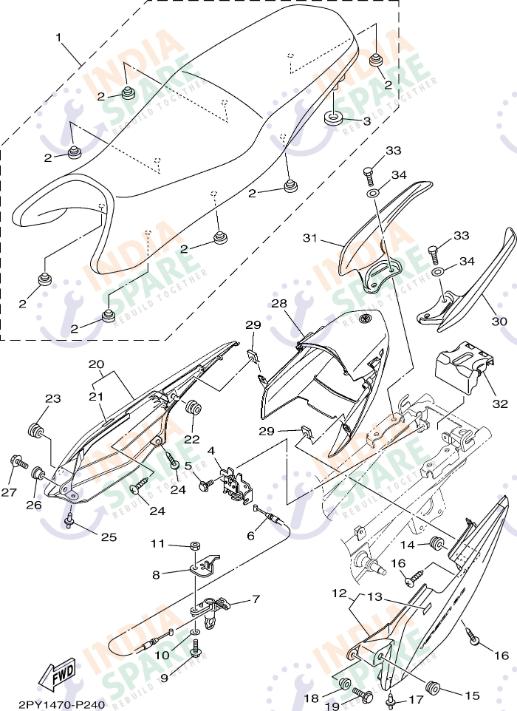

SEAT
2PY1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 54BF47300100 | DOUBLE SEAT ASSY | ₹ 1099 | 1 | ||
| 2 | 1PMF47410000 | PAD SEAT | ₹ 26 | 7 | ||
| 3 | 21CF47630000 | PAD SEAT 2 | ₹ 5 | 1 | ||
| 4 | 54BF47800000 | SEAT LOCK ASSY | ₹ 71 | 1 | ||
| 5 | 950270601000 | BOLT FLANGE | ₹ 2 | 2 | ||
| 6 | 54BF478E0000 | CABLE SEAT LOCK | ₹ 32 | 1 | ||
| 7 | 54BWF47E0000 | SEAT LOCK ASSY WITH KEYS | ₹ 105 | 1 | ||
| 8 | 54BF117K0000 | STAY LOCK | ₹ 7 | 1 | ||
| 9 | 958070602000 | BOLT FLANGE | ₹ 5 | 1 | ||
| 10 | 902010605500 | WASHER PLATE | ₹ 3 | 1 | ||
| 11 | 9530N0660000 | NUT | ₹ 1 | 1 | ||
| 12A | 2PYXF47100P0 | COVER TAIL 1-DRMK(RED) | ₹ 405 | 1 | FOR YB | |
| 12B | 2PYXF47110P6 | 2PYXF47110P6 | ₹ 0 | 1 | FOR YBG | |
| 12C | 54BF471K00P2 | COVER TAIL 1 | ₹ 377 | 1 | FOR BWC1 | |
| 13 | 2GSF45491000 | EMBLEM | ₹ 20 | 1 | ||
| 14 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 15 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 16 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 3 | ||
| 17 | 902690681400 | RIVET | ₹ 8 | 1 | ||
| 18 | 90387068H300 | COLLAR | ₹ 11 | 1 | ||
| 19 | 970070601400 | BOLT | ₹ 5 | 1 | ||
| 20A | 54BF472K00P0 | COVER TAIL 2 | ₹ 377 | 1 | FOR YB | |
| 20B | 2PYXF47210P6 | COVER TAIL 2-LGM6(GREEN) | ₹ 405 | 1 | FOR YBG | |
| 20C | 2PYXF47220P2 | COVER TAIL 2-BMC(BLUE) | ₹ 405 | 1 | FOR BWC1 | |
| 21 | 2GSF45491000 | EMBLEM | ₹ 20 | 1 | ||
| 22 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 23 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 24 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 3 | ||
| 25 | 902690681400 | RIVET | ₹ 8 | 1 | ||
| 26 | 90387068H300 | COLLAR | ₹ 11 | 1 | ||
| 27 | 970070601400 | BOLT | ₹ 5 | 1 | ||
| 28 | 54BF47560000 | 54BF47560000 | ₹ 0 | 1 | ||
| 29 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 30 | 1PMF474A0000 | ASSIST GRIP | ₹ 267 | 1 | ||
| 31 | 1PMF474W0000 | ASSIST GRIP 2 | ₹ 267 | 1 | ||
| 32 | 1PMF472T0000 | COVER SEAT LOCK | ₹ 13 | 1 | ||
| 33 | 970270802000 | BOLT HEX | ₹ 8 | 4 | ||
| 34 | 929070820000 | WASHER | ₹ 5 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
