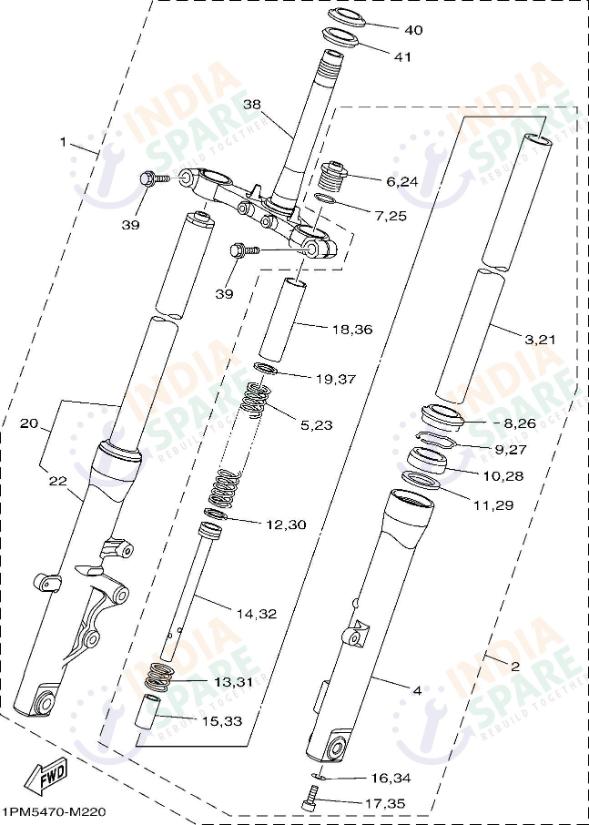

FRONT FORK
2PY6
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1PMF31001000 | FRONT FORK ASSY | ₹ 6536 | 1 | ||
| 2 | 1PMF31021000 | FRONT FORK ASSY (L.H) | ₹ 2986 | 1 | ||
| 3 | 54BF31100000 | INNER TUBE COMP.1 | ₹ 1179 | 1 | ||
| 4 | 1PMF31061000 | OUTER TUBE COMP. (L.H) | ₹ 1036 | 1 | ||
| 5 | 1PMF31410000 | SPRING FRONT FORK | ₹ 68 | 1 | ||
| 6 | 54BF31110000 | BOLT CAP | ₹ 58 | 1 | ||
| 7 | 54BF31470000 | O-RING | ₹ 6 | 1 | ||
| 8 | 54BF31440000 | SEAL DUST | ₹ 102 | 1 | ||
| 9 | 54BF31560000 | CLIP OIL SEAL | ₹ 7 | 1 | ||
| 10 | 54BF31451000 | OIL SEAL | ₹ 192 | 1 | ||
| 11 | 54BF31460000 | WASHER, OIL SEAL | ₹ 12 | 1 | ||
| 12 | 54BF31570000 | RING PISTON | ₹ 5 | 1 | ||
| 13 | 54BF31510000 | SPRING, REBOUND | ₹ 13 | 1 | ||
| 14 | 54BF31700000 | CYLINDER COMP. FRONT FORK | ₹ 106 | 1 | ||
| 15 | 54BF31730000 | SPINDLE TAPER | ₹ 22 | 1 | ||
| 16 | 54BF31290000 | GASKET, DRAIN PLUG | ₹ 6 | 1 | ||
| 17 | 54BF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 22 | 1 | ||
| 18 | 1PMF31180000 | SPACER | ₹ 13 | 1 | ||
| 19 | 1PMF31490000 | WASHER SPRING UPPER | ₹ 5 | 1 | ||
| 20 | 1PMF31031000 | FRONT FORK ASSY (R.H) | ₹ 3051 | 1 | ||
| 21 | 54BF31100000 | INNER TUBE COMP.1 | ₹ 1179 | 1 | ||
| 22 | 1PMF31071000 | OUTER TUBE COMP. (R.H) | ₹ 1036 | 1 | ||
| 23 | 1PMF31410000 | SPRING FRONT FORK | ₹ 68 | 1 | ||
| 24 | 54BF31110000 | BOLT CAP | ₹ 58 | 1 | ||
| 25 | 54BF31470000 | O-RING | ₹ 6 | 1 | ||
| 26 | 54BF31440000 | SEAL DUST | ₹ 102 | 1 | ||
| 27 | 54BF31560000 | CLIP OIL SEAL | ₹ 7 | 1 | ||
| 28 | 54BF31451000 | OIL SEAL | ₹ 192 | 1 | ||
| 29 | 54BF31460000 | WASHER, OIL SEAL | ₹ 12 | 1 | ||
| 30 | 54BF31570000 | RING PISTON | ₹ 5 | 1 | ||
| 31 | 54BF31510000 | SPRING, REBOUND | ₹ 13 | 1 | ||
| 32 | 54BF31700000 | CYLINDER COMP. FRONT FORK | ₹ 106 | 1 | ||
| 33 | 54BF31730000 | SPINDLE TAPER | ₹ 22 | 1 | ||
| 34 | 54BF31290000 | GASKET, DRAIN PLUG | ₹ 6 | 1 | ||
| 35 | 54BF31810000 | BOLT HEXAGON SOCKET HEAD | ₹ 22 | 1 | ||
| 36 | 1PMF31180000 | SPACER | ₹ 13 | 1 | ||
| 37 | 1PMF31490000 | WASHER SPRING UPPER | ₹ 5 | 1 | ||
| 38 | 1PMF33401000 | UNDER BRACKET COMP. | ₹ 1115 | 1 | ||
| 39 | 54BF33460000 | BOLT 1 | ₹ 8 | 2 | ||
| 40 | 54BF34110000 | 54BF34110000 | ₹ 0 | 1 | ||
| 41 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
