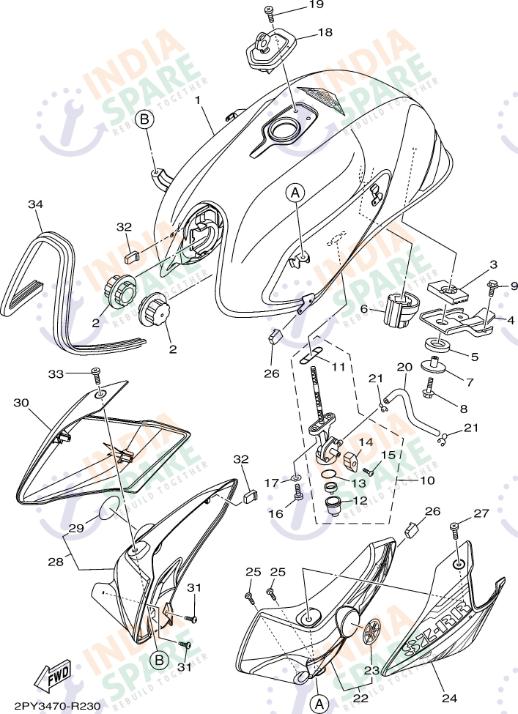

FUEL TANK

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	2PYXF41A00P4	FUEL TANK SUB ASSY-MBL2(MAT BL	₹ 6248	1		FOR MBL2
2	54BF41810000	DAMPER LOCATING 1	₹ 29	2
3	54BF41820000	DAMPER LOCATING 2	₹ 26	1
4	54BF413Y0000	BRACKET, TANK FITTING	₹ 60	1
5	54BF41830000	DAMPER LOCATING 3	₹ 11	1
6	54BF41840000	DAMPER LOCATING 4	₹ 40	1
7	90387068H400	COLLAR	₹ 40	1
8	958120602500	BOLT FLANGE	₹ 5	1
9	958120601200	BOLT, FLANGE	₹ 3	2
10	54BF45003200	FUEL COCK ASSY 1	₹ 175	1
11	54BF45121000	GASKET	₹ 4	1
12	54BF45211000	CUP FILTER	₹ 19	1
13	54BF45641000	GASKET	₹ 5	1
14	54BF45981000	KNOB	₹ 6	1
15	54BF45351000	SCREW LEVER FITTI	₹ 3	1
16	901570680100	SCREW PAN HEAD	₹ 2	2
17	902020518700	WASHER PLATE	₹ 10	2
18	54BWF4611000	CAP ASSY WITH LOCK	₹ 435	1
19	9850N0501000	SCREW PAN HEAD	₹ 2	2
20	90445108A200	HOSE	₹ 14	1
21	904670900600	CLIP	₹ 5	2
22	2PYXF41250P4	COVER TANK SIDEASSY 1-MBL2(MAT	₹ 528	1		FOR MBL2
23	5YYF413B0000	TUNNING FORK	₹ 50	1
24	2PYXF13E50V9	GUIDE AIR ASSY 1-NHG(NEW SPAR	₹ 528	1		FOR MBL2
25	977075001600	SCREW TRUSS HD.TAP	₹ 4	2
26	54BF17780000	DAMPER LOCATING 1	₹ 5	2
27	989800601400	SCREW BIND	₹ 55	1
28	2PYXF41350P4	COVER TANK SIDEASSY 2-MBL2(MAT	₹ 528	1		FOR MBL2
29	5YYF413B0000	TUNNING FORK	₹ 50	1
30	2PYXF13H50V9	GUIDE, AIR ASSY2-NHG(NEW SPARK	₹ 528	1		FOR MBL2
31	977075001600	SCREW TRUSS HD.TAP	₹ 4	2
32	54BF17780000	DAMPER LOCATING 1	₹ 5	2
33	989800601400	SCREW BIND	₹ 55	1
34	54BF41880000	MOLD, FUEL TANK	₹ 74	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA 2PY3 SZ RR V2 Series FUEL TANK
