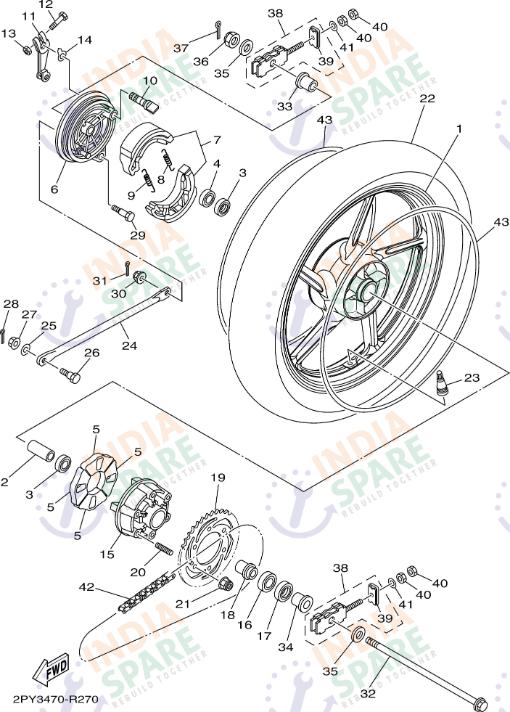

REAR WHEEL
2PY3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2PYF53380100 | CAST WHEEL, REAR | ₹ 5153 | 1 | ||
| 2 | 54BF53170000 | SPACER BEARING | ₹ 22 | 1 | ||
| 3 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 4 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 5 | 54BF53640000 | DAMPER | ₹ 23 | 4 | ||
| 6 | 5USF53211000 | PLATE BRAKE SHOE- BLACK | ₹ 369 | 1 | ||
| 7 | 1GCF530K0000 | BRAKE SHOE SET | ₹ 271 | 1 | ||
| 8 | 905061200100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 9 | 905061500100 | SPRING TENSION (5YY) | ₹ 8 | 1 | ||
| 10 | 5YYF53510000 | CAM SHAFT | ₹ 96 | 1 | ||
| 11 | 54BF53550000 | LEVER CAMSHAFT | ₹ 85 | 1 | ||
| 12 | 901010681400 | BOLT | ₹ 5 | 1 | ||
| 13 | 9530N0660000 | NUT | ₹ 1 | 1 | ||
| 14 | 36LF533A1000 | PLATE INDICATOR | ₹ 1 | 1 | ||
| 15 | 1PMF53660000 | CLUTCH HUB | ₹ 327 | 1 | ||
| 16 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 17 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 18 | 54BF53770000 | COLLAR WHEEL | ₹ 39 | 1 | ||
| 19 | 1PMF54420000 | 1PMF54420000 | ₹ 0 | 1 | ||
| 20 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 21 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 22 | 941101782100 | 941101782100 | ₹ 0 | 1 | ||
| 23 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 24 | 54BF53710000 | BAR TENSION | ₹ 59 | 1 | ||
| 25 | 902010832600 | WASHER PLATE | ₹ 6 | 1 | ||
| 26 | 901090883100 | BOLT | ₹ 11 | 1 | ||
| 27 | 957070850000 | NUT FLANGE | ₹ 6 | 1 | ||
| 28 | 902522780000 | PIN SPLIT | ₹ 1 | 1 | ||
| 29 | 901090884000 | BOLT | ₹ 16 | 1 | ||
| 30 | 956020820000 | NUT U FLANGE | ₹ 11 | 1 | ||
| 31 | 902522780000 | PIN SPLIT | ₹ 1 | 1 | ||
| 32 | 54BF53810000 | AXLE WHEEL | ₹ 132 | 1 | ||
| 33 | 54BF53830000 | COLLAR WHEEL | ₹ 47 | 1 | ||
| 34 | 54BF53860000 | COLLAR SPROCKET AXLE | ₹ 73 | 1 | ||
| 35 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 36 | 901711480000 | NUT CASTLE | ₹ 60 | 1 | ||
| 37 | 902525580000 | SPLIT COTTER PIN | ₹ 2 | 1 | ||
| 38 | 5YYXF5380000 | PULLER CHAIN SUB ASSY | ₹ 41 | 2 | ||
| 39 | 5YYF539F0000 | PLATE 1 | ₹ 3 | 1 | ||
| 40 | 9530N0660000 | NUT | ₹ 1 | 4 | ||
| 41 | 929070620000 | WASHER | ₹ 5 | 2 | ||
| 42 | 94568A312600 | 94568A312600 | ₹ 0 | 1 | ||
| 43 | 21CF531BA000 | EMBLEM WHEEL-RYC1(YELLOW) | ₹ 80 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
