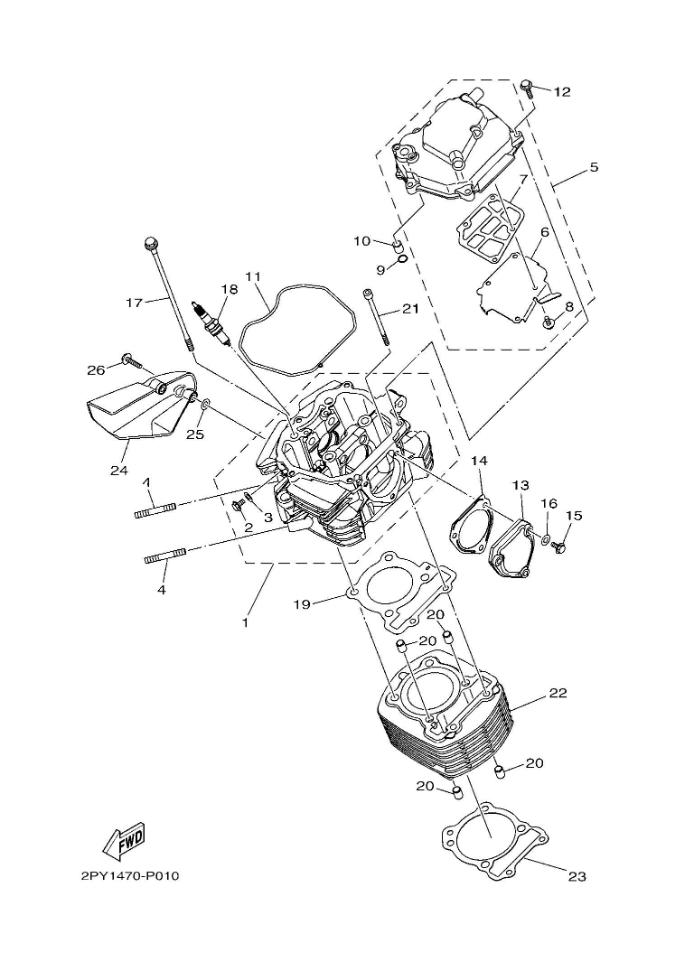

CYLINDER
2PY4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2PYE11110000 | HEAD CYLINDER 1 | ₹ 3258 | 1 | ||
| 2 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 3 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 4 | 956120862000 | BOLT STUD | ₹ 12 | 2 | ||
| 5 | 2PYE11900100 | COVER CYLINDER HEAD 1 | ₹ 419 | 1 | ||
| 6 | 2GSE11650000 | PLATE BREATHER | ₹ 14 | 1 | ||
| 7 | 21CE11691000 | GASKET BREATHER COVER | ₹ 10 | 1 | ||
| 8 | 901490580700 | SCREW | ₹ 2 | 4 | ||
| 9 | 932101280000 | O-RING | ₹ 5 | 1 | ||
| 10 | 936121625400 | PIN DOWEL | ₹ 18 | 1 | ||
| 11 | 2GSE11930000 | GASKET HEAD COVER 1 | ₹ 75 | 1 | ||
| 12 | 950220602500 | BOLT FLANGE | ₹ 11 | 5 | ||
| 13 | 2GSE11860000 | COVER CYLINDER HEAD SIDE | ₹ 87 | 1 | ||
| 14 | 21CE24351100 | GASKET | ₹ 22 | 1 | ||
| 15 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 16 | 904300681700 | GASKET | ₹ 8 | 3 | ||
| 17 | 2GSE13610000 | BOLT CYLINDER HOLDING 1 | ₹ 195 | 4 | ||
| 18 | 947030088500 | SPARK PLUG | ₹ 190 | 1 | ||
| 19 | 2GSE11810100 | GASKET CYLINDER HEAD 1 | ₹ 69 | 1 | ||
| 20 | 918101480400 | PIN DOWEL | ₹ 7 | 4 | ||
| 21 | 901100630400 | BOLT HEXAGON SOCKET HEAD | ₹ 46 | 2 | ||
| 22 | 2GSE13100000 | CYLINDER 1 | ₹ 0 | 1 | ||
| 23 | 21CE13511000 | GASKET CYLINDER | ₹ 85 | 1 | ||
| 24 | 2PYE26610000 | DUCT | ₹ 93 | 1 | ||
| 25 | 902010582000 | WASHER PLATE | ₹ 12 | 2 | ||
| 26 | 901100625600 | BOLT, HEXAGON SOCKET HEAD | ₹ 42 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Unleash the true potential of your spectacular Yamaha SZ RR model by exploring our exclusive range of genuine cylinder components crafted for peak performance. Riding through the diverse terrains of India is a captivating narrative filled with adrenaline and every rider knows that superior components are the secret to an unforgettable journey. We proudly present an outstanding assortment of factory grade parts to fuel your automotive dreams with absolute certainty. Take a closer look at our detailed inventory featuring the advanced cylinder head as well as the incredibly resilient breather plate. These specialized components seamlessly integrate into your vehicle providing enhanced stability and remarkable responsiveness during high speed maneuvers. Never compromise on the structural integrity of your beloved motorcycle. Rely on our premium selections to ensure your next thrilling adventure is backed by world class engineering and unmatched safety.
