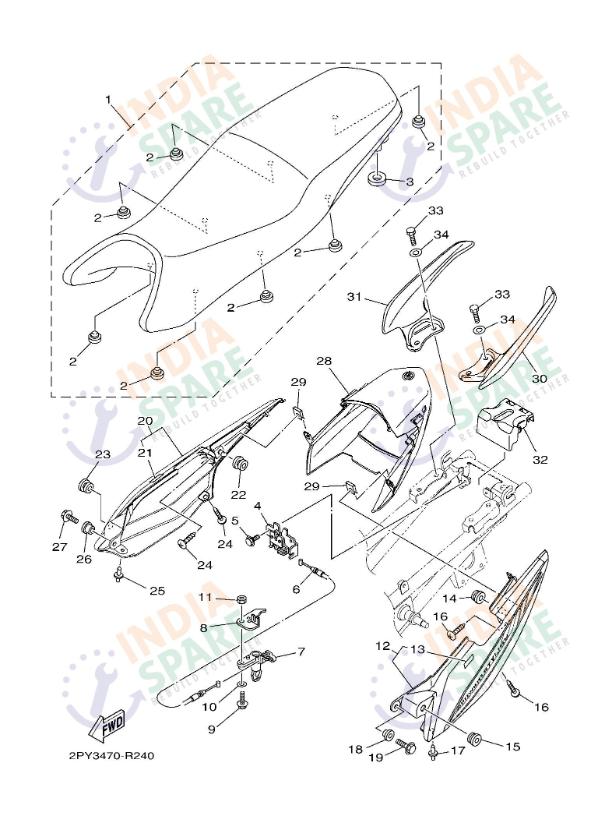

SEAT
2PY5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 54BF47300100 | DOUBLE SEAT ASSY | ₹ 1099 | 1 | ||
| 2 | 1PMF47410000 | PAD SEAT | ₹ 26 | 7 | ||
| 3 | 21CF47630000 | PAD SEAT 2 | ₹ 5 | 1 | ||
| 4 | 54BF47800000 | SEAT LOCK ASSY | ₹ 71 | 1 | ||
| 5 | 950270601000 | BOLT FLANGE | ₹ 2 | 2 | ||
| 6 | 54BF478E0000 | CABLE SEAT LOCK | ₹ 32 | 1 | ||
| 7 | 54BWF47E0000 | SEAT LOCK ASSY WITH KEYS | ₹ 105 | 1 | ||
| 8 | 54BF117K0000 | STAY LOCK | ₹ 7 | 1 | ||
| 9 | 958070602000 | BOLT FLANGE | ₹ 5 | 1 | ||
| 10 | 902010605500 | WASHER PLATE | ₹ 3 | 1 | ||
| 11 | 9530N0660000 | NUT | ₹ 1 | 1 | ||
| 12 | 2PYXF47120P7 | COVER TAIL ASSY 1-MBL2(MAT BL | ₹ 405 | 1 | FOR MBL2 | |
| 13 | 2GSF45491000 | EMBLEM | ₹ 20 | 1 | ||
| 14 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 15 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 16 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 3 | ||
| 17 | 902690681400 | RIVET | ₹ 8 | 1 | ||
| 18 | 90387068H300 | COLLAR | ₹ 11 | 1 | ||
| 19 | 970070601400 | BOLT | ₹ 5 | 1 | ||
| 20 | 2PYXF47220P7 | COVER TAIL ASSY 2-MBL2(MAT BL | ₹ 405 | 1 | FOR MBL2 | |
| 21 | 2GSF45491000 | EMBLEM | ₹ 20 | 1 | ||
| 22 | 904801356700 | GROMMET | ₹ 8 | 1 | ||
| 23 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 24 | 977075001200 | SCREW TRUSS HD TAP | ₹ 5 | 3 | ||
| 25 | 902690681400 | RIVET | ₹ 8 | 1 | ||
| 26 | 90387068H300 | COLLAR | ₹ 11 | 1 | ||
| 27 | 970070601400 | BOLT | ₹ 5 | 1 | ||
| 28 | 54BXF4750000 | COVER TAIL ASSY | ₹ 101 | 1 | ||
| 29 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 30 | 1PMF474A0000 | ASSIST GRIP | ₹ 267 | 1 | ||
| 31 | 1PMF474W0000 | ASSIST GRIP 2 | ₹ 267 | 1 | ||
| 32 | 1PMF472T0000 | COVER SEAT LOCK | ₹ 13 | 1 | ||
| 33 | 970270802000 | BOLT HEX | ₹ 8 | 4 | ||
| 34 | 929070820000 | WASHER | ₹ 5 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The thrilling saga of owning a magnificent Yamaha SZ RR model continues when you equip it with top quality seat components designed for ultimate endurance. Throughout India countless motorcycle aficionados share a profound bond with their machines treating every maintenance routine as an act of pure passion. Our comprehensive collection stands as a testament to this unwavering commitment offering flawlessly crafted replacements for your demanding needs. Delve into our extensive selection to find standout pieces including the rugged double seat assembly along with the highly dependable seat lock assembly. Utilizing these genuine components guarantees that your prized motorcycle will conquer both chaotic city streets and serene highways with exceptional grace. Protect your extremely valuable investment by choosing parts that perfectly match factory specifications. Let our dedicated catalog empower your riding journey delivering unmatched durability and breathtaking performance at every single turn.
