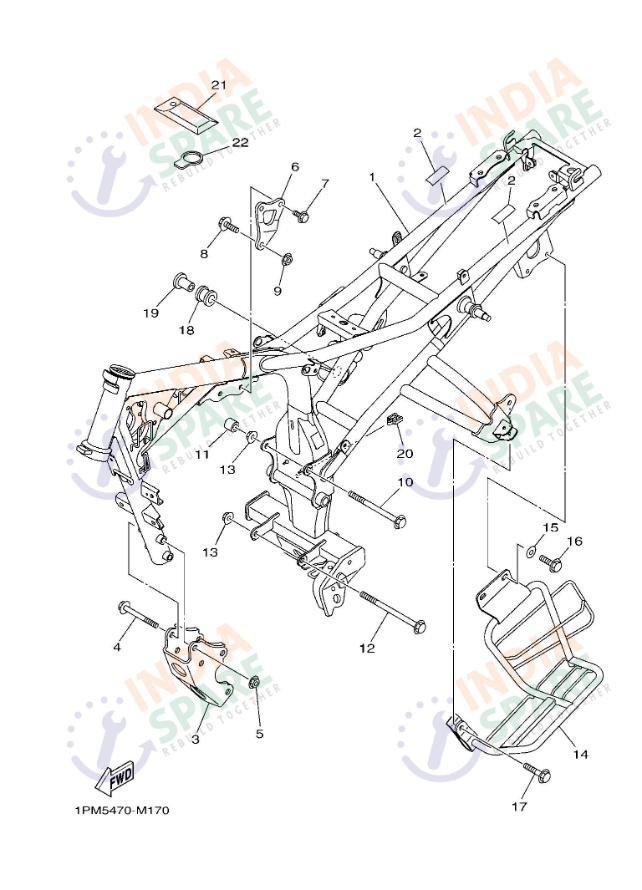

FRAME
2PY6
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2PYF11100100 | FRAME COMP. | ₹ 6307 | 1 | ||
| 2 | 54BF112B0000 | SEAT 1 | ₹ 3 | 2 | ||
| 3 | 54BF13160000 | STAY ENGINE 3 | ₹ 221 | 1 | ||
| 4 | 958171008000 | BOLT FLANGE | ₹ 28 | 4 | ||
| 5 | 901791081100 | NUT | ₹ 19 | 4 | ||
| 6 | 54BF13170000 | STAY ENGINE 3 | ₹ 28 | 1 | ||
| 7 | 970270802000 | BOLT HEX | ₹ 8 | 2 | ||
| 8 | 958170803500 | BOLT FLANGE | ₹ 12 | 1 | ||
| 9 | 901790867400 | NUT | ₹ 26 | 1 | ||
| 10 | 958171013000 | BOLT FLANGE | ₹ 69 | 1 | ||
| 11 | 54BF13990000 | CAP TOOL BOX | ₹ 3 | 1 | ||
| 12 | 901051086100 | BOLT FLANGE | ₹ 32 | 1 | ||
| 13 | 901791081100 | NUT | ₹ 19 | 2 | ||
| 14 | 54BF12980000 | PROTECTOR FOOT REST | ₹ 358 | 1 | ||
| 15 | 902010832600 | WASHER PLATE | ₹ 6 | 2 | ||
| 16 | 9580N0801600 | BOLT FLANGE | ₹ 5 | 2 | ||
| 17 | 958070802500 | BOLT FLANGE | ₹ 10 | 1 | ||
| 18 | 20PE47470000 | DAMPER MUFFLER | ₹ 40 | 1 | ||
| 19 | 903870882200 | COLLAR | ₹ 18 | 1 | ||
| 20 | 904641082900 | CLAMP | ₹ 6 | 1 | ||
| 21 | 1PMF81000000 | TOOL SET | ₹ 159 | 1 | ||
| 22 | 1PMF811G0000 | BAND | ₹ 10 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
