2SP2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

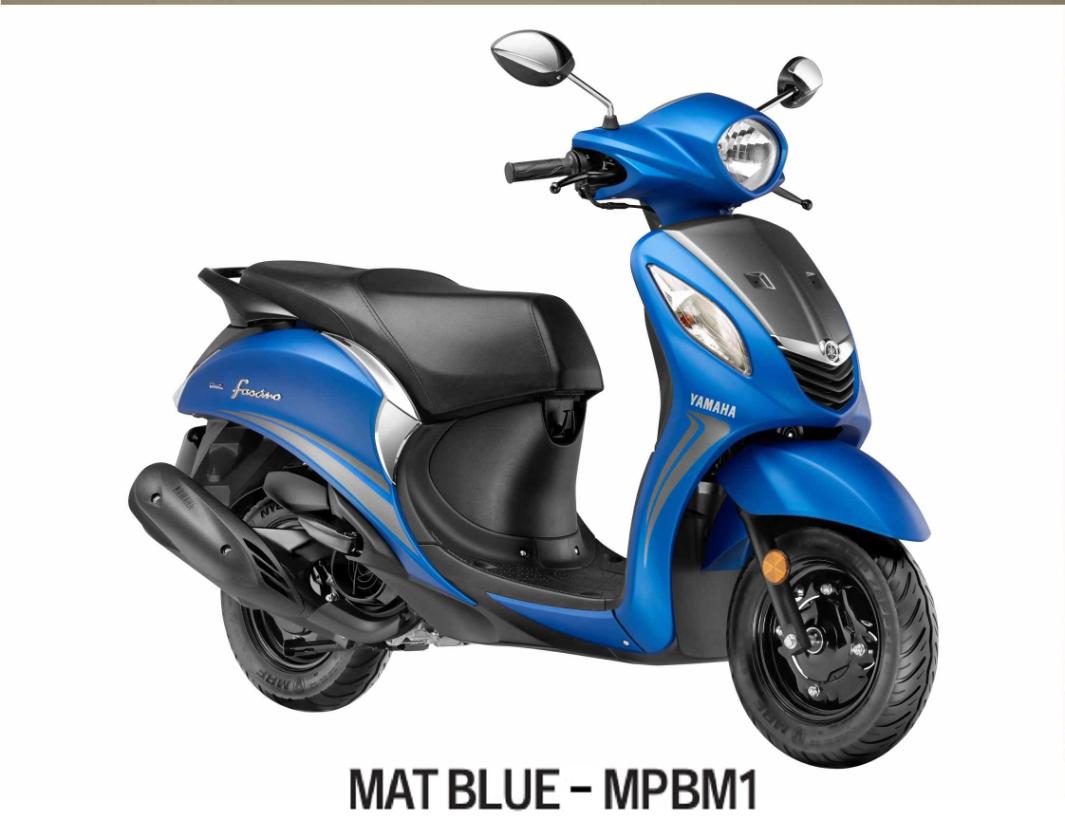

| 1A | 2SPF151100P4 | FENDER FRONT-MPBM1(MATPURPLEB | ₹ 792 | 1 | FOR MPBM1 | |

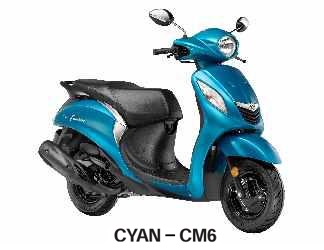

| 1B | 2SPF151100P2 | FENDER FRONT-CM6(CYAN) | ₹ 912 | 1 | FOR MBL2,CM6 | |

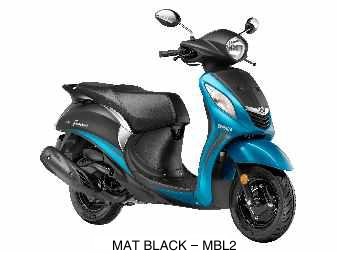

| 1C | 2SPF151100P5 | FENDER FRONT-MBL2(MAT BLACK) | ₹ 792 | 1 | FOR MDRM4 | |

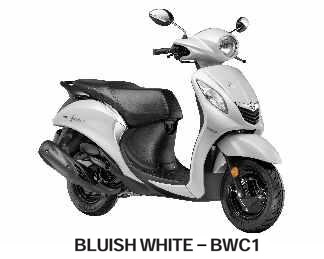

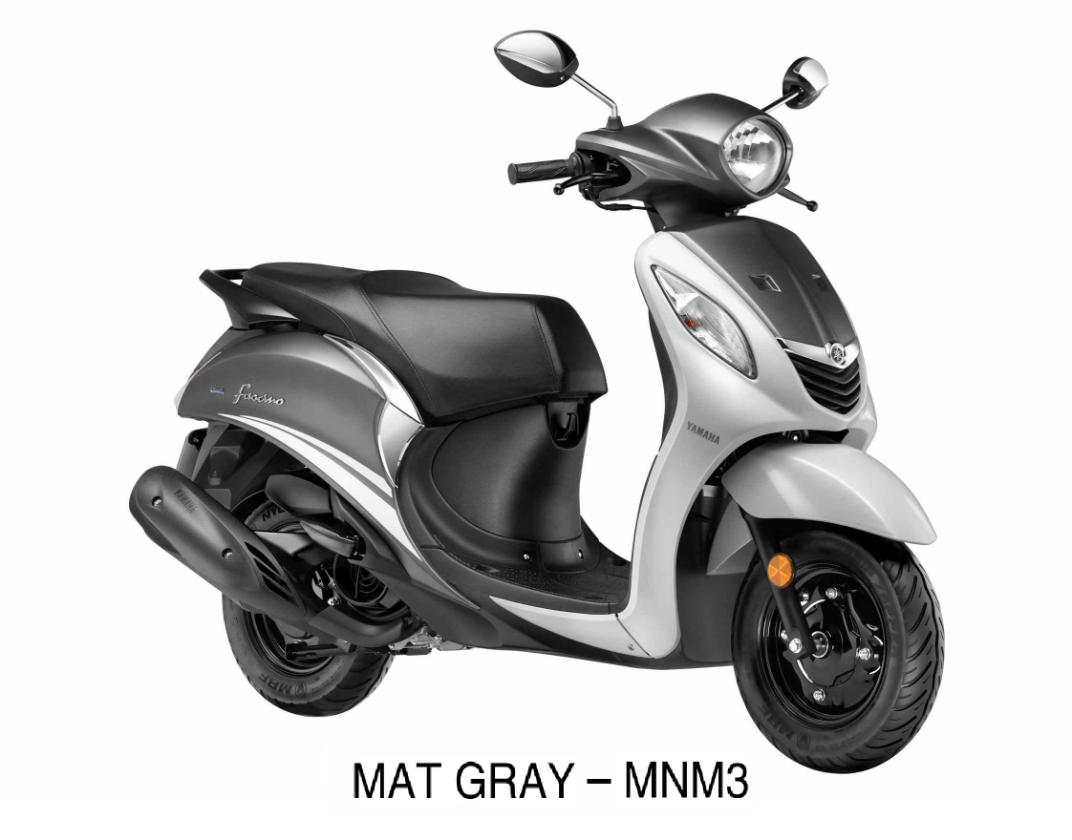

| 1D | 2SPF151100P0 | FENDER FRONT-BWC1(WHITE) | ₹ 792 | 1 | FOR MNM3,BWC1 | |
| 2 | 90387068S100 | COLLAR | ₹ 12 | 3 | ||
| 3 | 958120601400 | BOLT FLANGE | ₹ 5 | 3 | ||
| 4 | 1GCF16110000 | FENDER REAR | ₹ 128 | 1 | ||
| 5 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 6 | 90387068M600 | COLLAR | ₹ 11 | 1 | ||
| 7 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 8 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 20 | 1 | ||
| 9 | 958120601400 | BOLT FLANGE | ₹ 5 | 1 | ||
| 10 | 2SPF16290000 | GUARD MUD | ₹ 322 | 1 | ||
| 11 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 12 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 13 | 2FSF16210000 | FLAP | ₹ 18 | 1 | ||
| 14 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 15 | 5USH51100100 | REFLECTOR ASSY | ₹ 14 | 1 | ||
| 16 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your vehicle's bodywork with the Yamaha Fascino Fender assembly. This set includes the aerodynamic Front Fender and a durable Rear Fender with an integrated Mud Guard and Flap. Featuring genuine Yamaha reflectors and mounting Collars, this assembly ensures safety and durability. Each part is finished with factory-grade paint and high-strength plastic to withstand road debris and water spray effectively in all weather conditions.
