FENDER
0
2SP4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

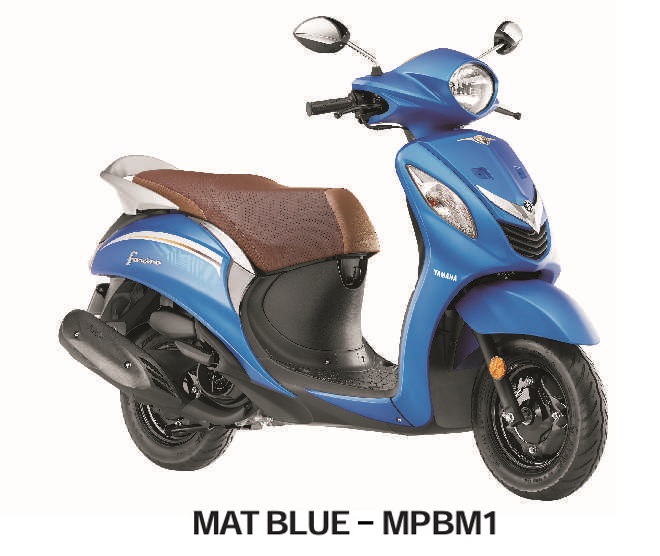

| 1A | 2SPXF15100P4 | FENDER FRONT MPBM1 | ₹ 860 | 1 | FOR MPBM1 | |

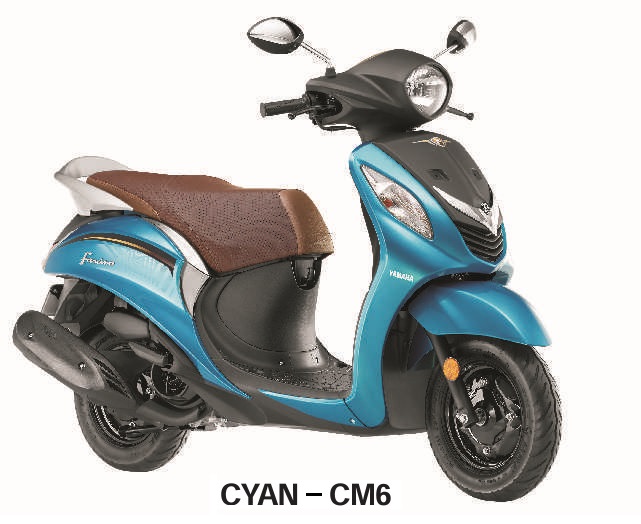

| 1B | 2SPXF15100P2 | FENDER FRONT CM6 | ₹ 1005 | 1 | FOR CM6 | |

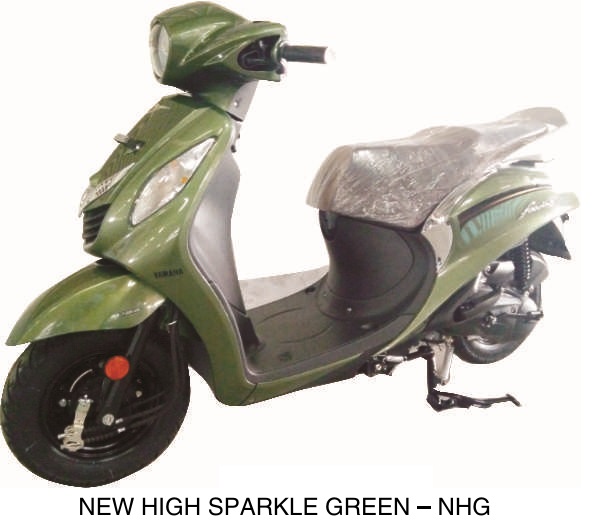

| 1C | 2SPXF15100V9 | FENDER FRONT NHG | ₹ 860 | 1 | FOR NHG | |

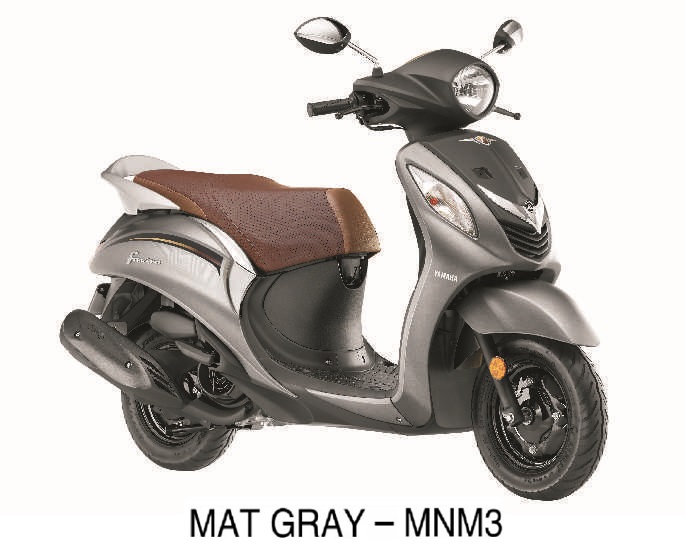

| 1D | 2SPXF15100P6 | FENDER FRONT MNM3 | ₹ 860 | 1 | FOR MNM3 | |

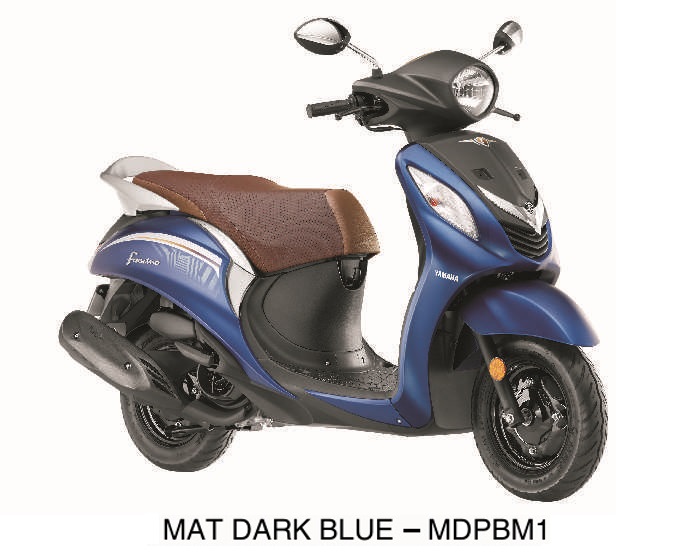

| 1E | 2SPXF15100P7 | FENDER FRONT MDPBM1 | ₹ 860 | 1 | FOR MDPBM1 | |

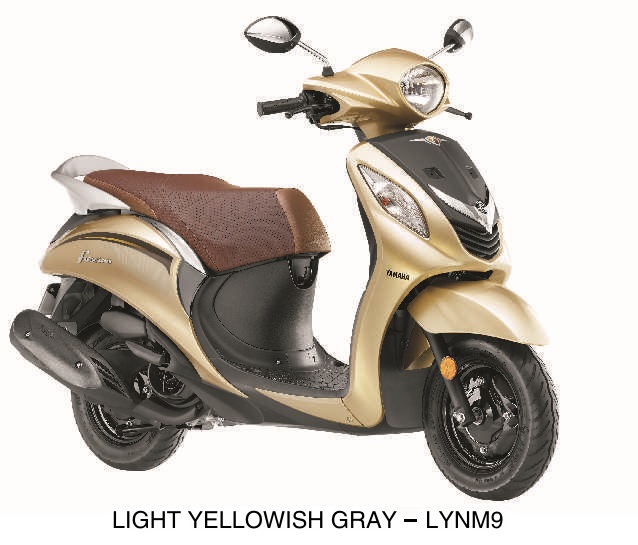

| 1F | 2SPXF15100P8 | FENDER FRONT LYNM9 | ₹ 860 | 1 | FOR LYNM9 | |
| 2 | B7JF15693000 | GRAPHIC 1 | ₹ 10 | 2 | ||
| 3 | 90387068S100 | COLLAR | ₹ 14 | 3 | ||
| 4 | 958120601400 | BOLT, FLANGE | ₹ 5 | 3 | ||
| 5 | 1GCF16110000 | FENDER, REAR | ₹ 139 | 1 | ||
| 6 | 901090620200 | BOLT | ₹ 13 | 3 | ||
| 7 | 90387068M600 | COLLAR | ₹ 12 | 1 | ||
| 8 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 1 | ||
| 9 | 1GCF16120000 | BRACKET REAR FENDER | ₹ 22 | 1 | ||
| 10 | 958120601400 | BOLT, FLANGE | ₹ 5 | 1 | ||
| 11 | 2SPF16290000 | GUARD, MUD | ₹ 350 | 1 | ||
| 12 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 13 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 14 | 2FSF16210000 | FLAP | ₹ 20 | 1 | ||
| 15 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 16 | 5USH51100100 | REFLECTOR ASSY | ₹ 16 | 1 | ||
| 17 | 957020550000 | NUT FLANGE | ₹ 2 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2SP4 FASCINO 110 Series FENDER
