LEG SHIELD
0
2XB3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

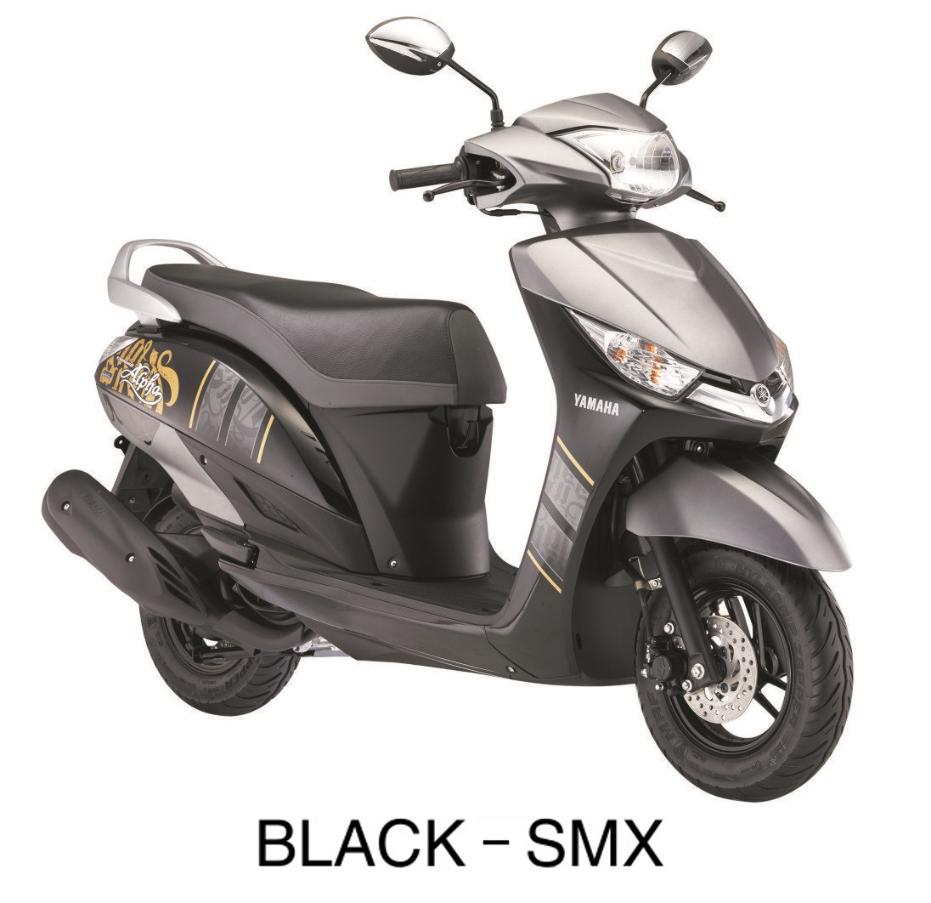

| 1A | 2FCXF83M01P6 | SHIELD LEG SHIELD 1ASSY-SMX(BL | ₹ 1120 | 1 | FOR SMX | |

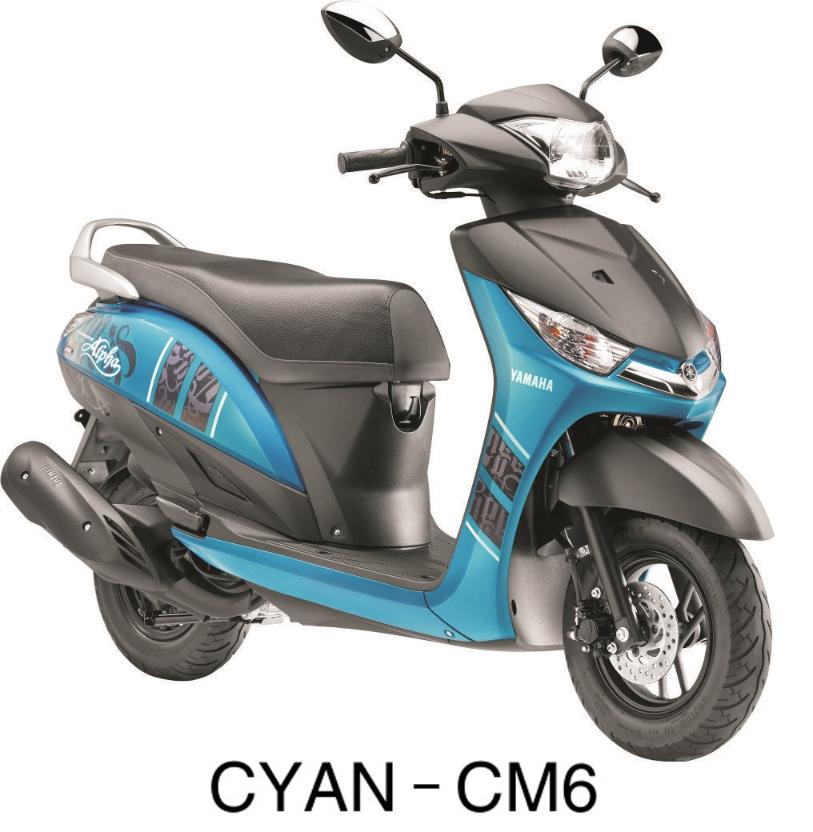

| 1B | 2FCXF83M01P7 | SHIELD LEG SHIELD 1ASSY-CM6(CY | ₹ 1339 | 1 | FOR CM6 | |
| 2 | 977025001200 | SCREW TAPPING | ₹ 11 | 4 | ||
| 3 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 4 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 5 | 903870782600 | COLLAR | ₹ 12 | 2 | ||
| 6 | 958120601400 | BOLT, FLANGE | ₹ 5 | 2 | ||
| 7 | 902690681300 | RIVET | ₹ 8 | 2 | ||
| 8 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 9A | 2FCF826100P6 | PANEL-MNM3(MAT GREY) | ₹ 540 | 1 | FOR SMX | |
| 9B | 2FCF826100P7 | PANEL -MBL2(MAT BLACK) | ₹ 635 | 1 | FOR CM6 | |
| 10 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 11 | 2FCF83120100 | LEG SHIELD 2 | ₹ 525 | 1 | ||
| 12 | 977025001600 | SCREW TAPPING | ₹ 10 | 6 | ||
| 13 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 14 | 2FCF83850000 | COVER UNDER | ₹ 230 | 1 | ||
| 15 | 901190613700 | BOLT WITH WASHER | ₹ 9 | 2 | ||
| 16 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 17 | 2XBF15520000 | FENDER INNER | ₹ 235 | 1 | ||
| 18 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 19 | 2FCF34870000 | STAY PLATE | ₹ 30 | 1 | ||
| 20 | 901630580500 | SCREW HEX TAPPING | ₹ 3 | 2 | ||
| 21 | 2XBXF83U0000 | PLATE FRONT/MOLE SUB ASSY | ₹ 309 | 1 | ||
| 22 | 901830506700 | NUT SPRING | ₹ 8 | 1 | ||
| 23 | 2SPF836B0000 | TUNING FORK MARK | ₹ 20 | 1 | ||
| 24 | 1GCF15680000 | LABEL WARNING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2XB3 ALPHA Series LEG SHIELD
