FENDER
0
2YP6
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

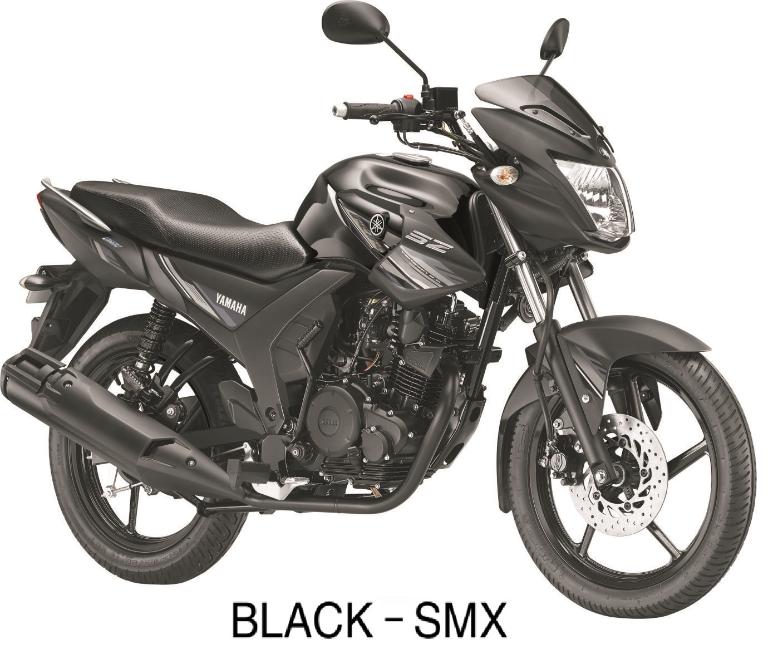

| 1A | 54BXF15A109X | FRONT FENDER ASSY | ₹ 1060 | 1 | FOR SMX | |

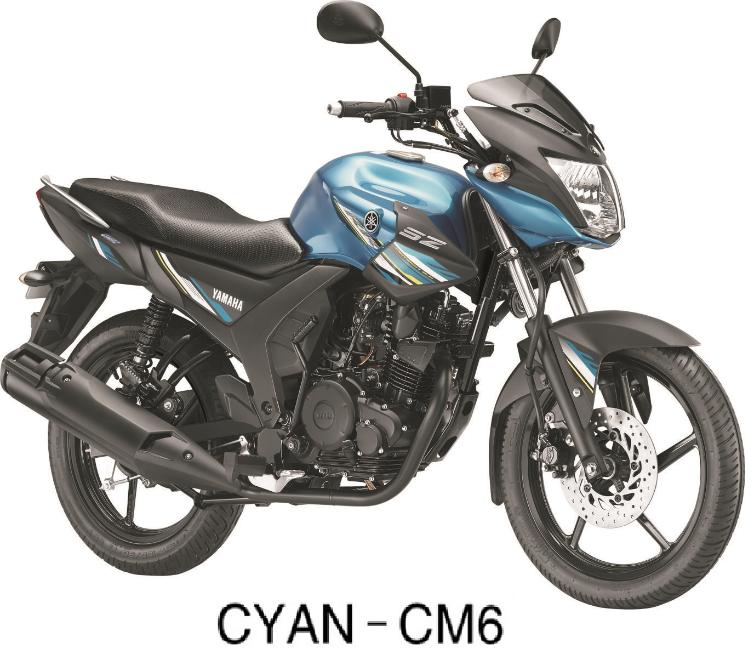

| 1B | 54BXF15A209X | FRONT FENDER ASSY -MBL2(MAT BL | ₹ 1060 | 1 | FOR CM6 | |
| 2 | 904801280500 | GROMMET | ₹ 8 | 4 | ||
| 3 | 54BF15450000 | COLLAR 2 | ₹ 7 | 2 | ||
| 4 | 90387061N600 | COLLER | ₹ 12 | 2 | ||
| 5 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 6 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 7 | 54BF15180000 | HOLDER, CABLE | ₹ 11 | 1 | ||
| 8 | 54BF16110000 | FENDER REAR | ₹ 317 | 1 | ||
| 9 | 901830580700 | NUT SPRING | ₹ 9 | 6 | ||
| 10 | 90387068H300 | COLLAR | ₹ 13 | 3 | ||
| 11 | 970070601400 | BOLT | ₹ 5 | 3 | ||
| 12 | 904641200100 | CLAMP | ₹ 74 | 1 | ||
| 13 | 54BF312G0000 | PLUG | ₹ 5 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA 2YP6 SZ RR V2 Series FENDER
