COWLING
0
2YS1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1A | 1WDXF83L30P1 | BODY, FR. UNDER 1SUBASSY-MS1(M | ₹ 6325 | 1 | FOR DPBMC | |
| 1B | 1WDXF83L40P0 | BODY,FRUNDER1SUBASSY-SMX(BLACK | ₹ 6325 | 1 | FOR SMX | |
| 2 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 3 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 4A | 1WDXF83M30P1 | BODYFRUNDER2SUB ASSY-MAT SILVE | ₹ 6325 | 1 | FOR DPBMC | |
| 4B | 1WDXF83M40P0 | BODY,FRUNDER2SUBASSY-SMX(BLACK | ₹ 6325 | 1 | FOR SMX | |
| 5 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 7 | 902690608100 | RIVET | ₹ 39 | 1 | ||
| 8 | 904800155800 | GROMMET | ₹ 10 | 2 | ||
| 9 | 1WDXF11W10P0 | COVER 7-MBL2(MAT BLACK) | ₹ 1276 | 1 | ||
| 10 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 11 | 903870689900 | COLLAR | ₹ 33 | 2 | ||
| 12 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 13 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 14 | 1WDXF11X10P0 | COVER 8-MBL2(MAT BLACK) | ₹ 1276 | 1 | ||
| 15 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 16 | 903870689900 | COLLAR | ₹ 33 | 2 | ||
| 17 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 18 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 19 | 901190609600 | BOLT, WITH WASHER | ₹ 21 | 3 | ||
| 20 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 21 | 9570N0650000 | NUT FLANGE | ₹ 2 | 1 | ||
| 22 | 902010638000 | WASHER PLAIN | ₹ 3 | 1 | ||
| 23 | 1WDF835U00P0 | PANEL 1-MBL2(MAT BLACK) | ₹ 1600 | 1 | ||
| 24 | 1WDF835V00P0 | PANEL 2-MBL2(MAT BLACK) | ₹ 1600 | 1 | ||
| 25 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 26 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 27 | 901830681500 | NUT SPRING | ₹ 8 | 4 | ||
| 28 | 1WDF838500P0 | COVER UNDER-MBL2(MAT BLACK) | ₹ 1430 | 1 | ||
| 29 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 30 | 902020518000 | WASHER PLATE | ₹ 28 | 2 | ||
| 31 | 903870689900 | COLLAR | ₹ 33 | 1 | ||
| 32 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 33 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 34 | 1WDF839500P0 | COVER, UNDER-MBL2 | ₹ 1480 | 1 | ||
| 35 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 36 | 902020518000 | WASHER PLATE | ₹ 28 | 2 | ||
| 37 | 903870689900 | COLLAR | ₹ 33 | 1 | ||
| 38 | 904801280800 | GROMMET | ₹ 10 | 1 | ||
| 39 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 1 | ||
| 40 | 1WDF833E0000 | BRACET 8 | ₹ 300 | 1 | ||
| 41 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 42 | 1WDF836K0100 | PANEL, INNER 1 | ₹ 250 | 1 | ||
| 43 | 1WDF836L0100 | PANEL, INNER 2 | ₹ 250 | 1 | ||
| 44 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 2 | ||
| 45 | 902690608100 | RIVET | ₹ 39 | 2 | ||
| 46 | 1WDF836M0000 | PANEL INNER 3 | ₹ 260 | 1 | ||
| 47 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 48 | 1WDF83282000 | 1WDF83282000 | ₹ 0 | 2 | FOR SMX |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

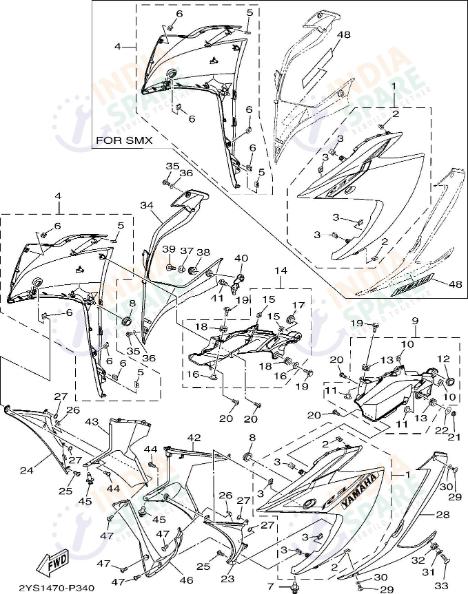

Description: - YAMAHA 2YS1 R3 Series COWLING
